Urology / Surgical Devices – Camjoy CN202 Compact Thulium-Holmium Laser System

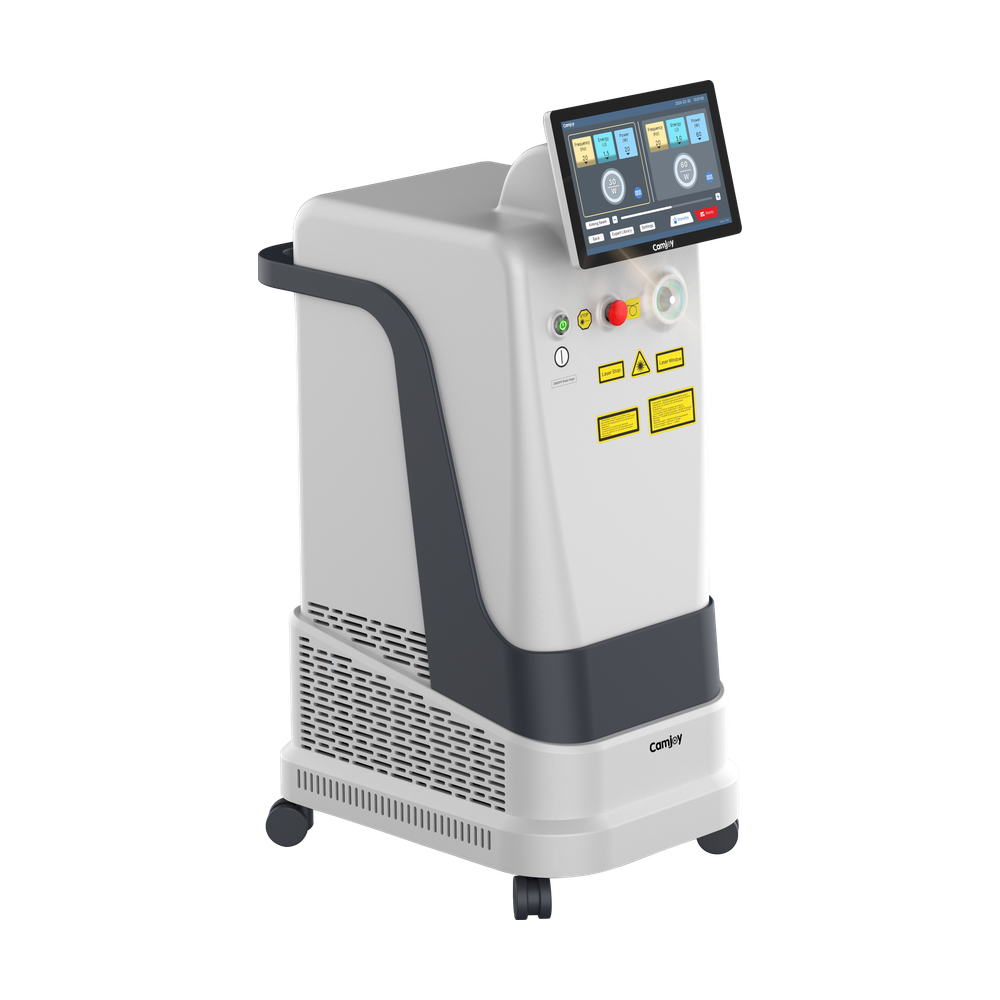

Camjoy CN202 Compact Thulium-Holmium Laser System
Compact high-output thulium-holmium system for dusting and precise cutting.
The CN202 compact thulium-holmium laser system is designed for advanced urology programs that need fine control over stone dusting, fragmentation, soft-tissue incision and hemostasis-oriented workflow settings. It combines compact system design with 200W terminal output and a wide pulse-frequency range.
Clinical Positioning
CN202 is the compact high-output thulium-holmium model. It is positioned for departments looking for a modern laser platform with fine-fiber support, low single-pulse settings, high pulse frequency and practical modes for lithotripsy, vaporization, cutting and coagulation.
Common Use Scenarios
- Fine dusting and fragmentation of urinary calculi
- BPH-related prostate enucleation workflow planning
- Soft-tissue vaporization, cutting and coagulation support
- Procedures requiring narrow-lumen access and delicate energy control
Key Advantages
The system is organized around clinical usability: clear parameter setup, fiber compatibility, output stability and practical accessory matching for endoscopic laser programs.
Technical Parameters
Core specifications help procurement teams compare output reserve, pulse settings, display configuration and laser-fiber compatibility before confirming the final configuration.
| Model | CN202 |
|---|---|
| Single-pulse energy | 0.025-5.0J |
| Operating frequency | 1-60Hz |
| Pulse frequency | 10-5000Hz |
| Maximum output at terminal | 200W |
| Applicable optical fiber | 150um-1000um |

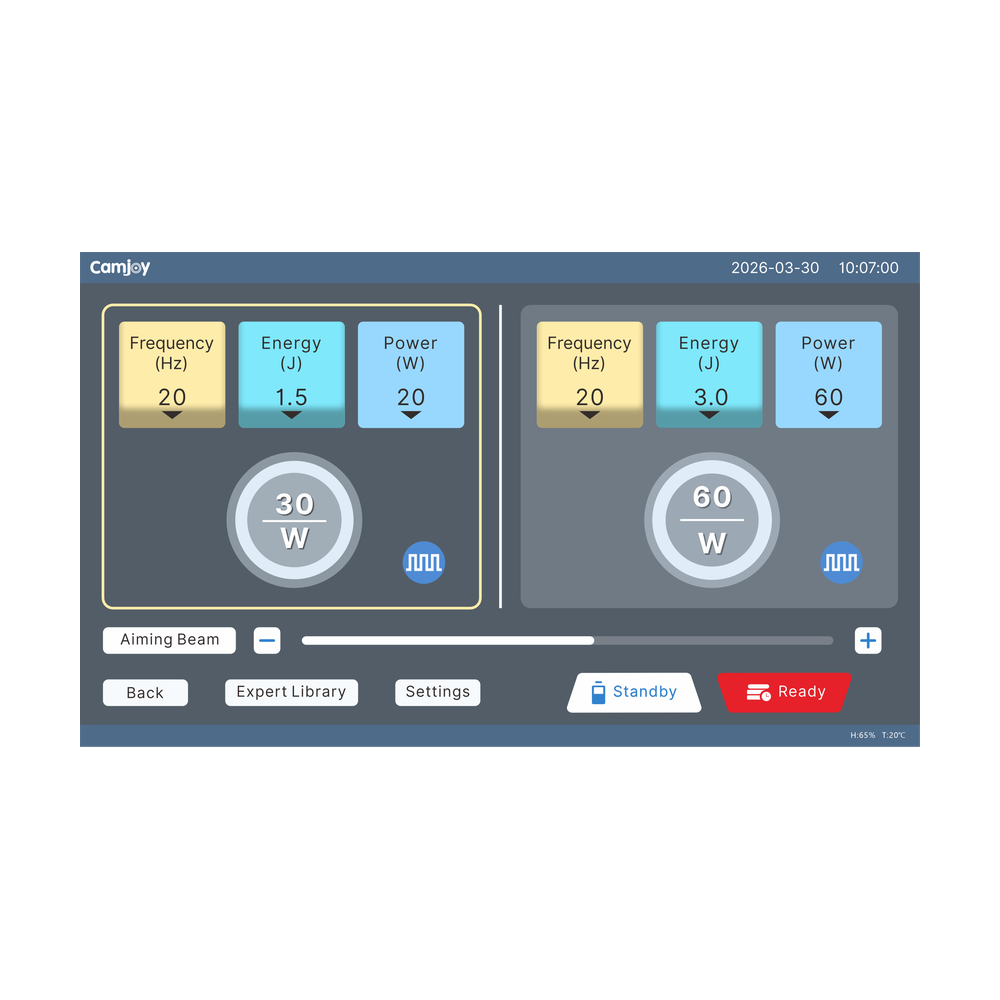

| Display mode | 12-inch color LCD screen |
| Power supply | 220V / 50Hz |
| Display function | Expert clinical database |
Laser Fiber and Accessory Compatibility
Camjoy laser systems can be configured with SMA-905 medical laser fibers and matched operating accessories for endoscopic lithotripsy, soft-tissue laser work and routine department use.
Fiber Optic detector
Fiber Optic stripper
Fiber optic cutter
550um medical laser fiber
200um medical laser fiber
Fiber Optic detection head
Foot switch
Metal accessory box
| Compatible wavelengths | 1940nm / 2100nm workflows |
|---|---|
| Fiber interface | Standard SMA-905 |
| Fiber options | 200um / 550um and other configured diameters |
| Fiber length | 2m / 3m / 4m options |
| Typical clinical access | Large-channel high-power output or narrow-lumen precise operation |
| Sterilization | Ethylene oxide or low-temperature plasma sterilization according to fiber configuration |
Workflow Notes for Procurement Teams
Camjoy CN202 Compact Thulium-Holmium Laser System is intended to be specified as a system package rather than a standalone console. Typical planning includes the host laser unit, compatible laser fibers, foot switch, fiber preparation tools, safety eyewear, accessory storage and after-sales support. Final clinical use should follow local registration status, approved indications and hospital protocols.
Request a Quote for CN202
Share the target department, preferred model, wavelength requirement, fiber diameter, fiber length, reusable or single-use preference and estimated order quantity so Camjoy can prepare a CN202 configuration proposal.
