Camjoy Electronic Endoscope / RD101

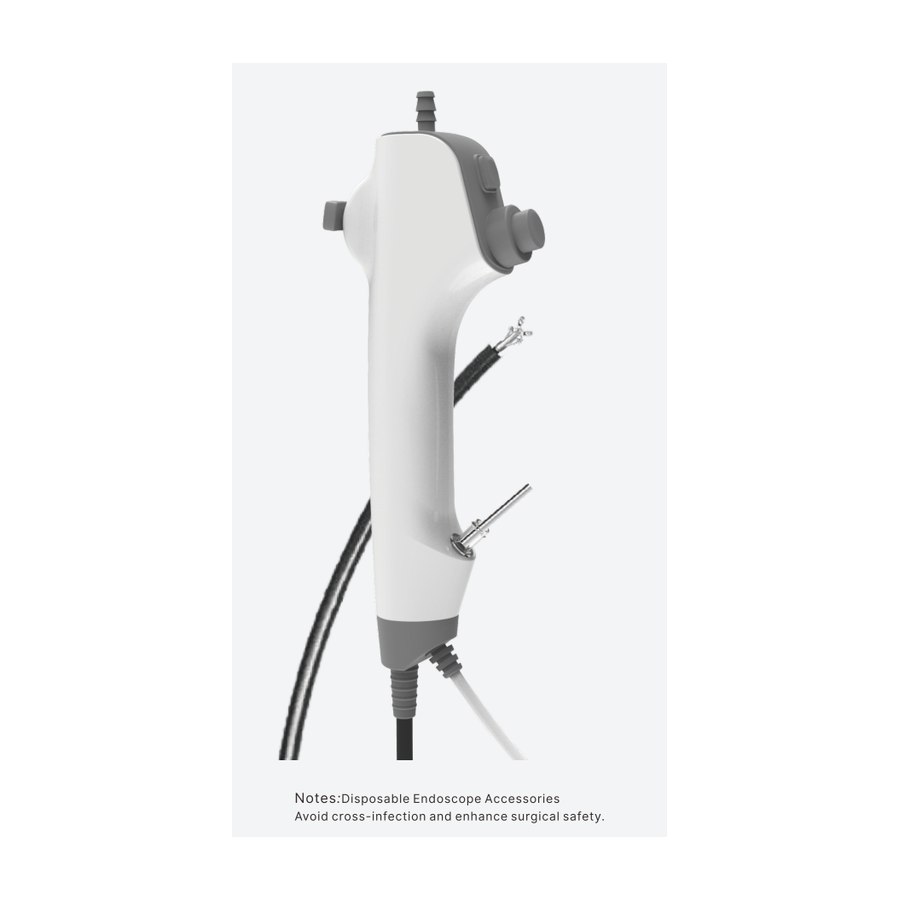

Camjoy RD101 Disposable Digital Flexible Rhinolaryngoscope
Single-use digital flexible rhinolaryngoscope for ENT examination.
RD101 combines disposable flexible ENT access with HD imaging, real-time screen mirroring and working-channel options for diagnostic and therapeutic needs.
WorkflowENT / rhinolaryngoscopy
Image system400×400 or 1280×720
Model familyRD101
Product Highlights
Real-time screen mirroring to an external displayReal-time screen mirroring to an external display
Multiple working-channel optionsMultiple working-channel options
Ergonomic lightweight designErgonomic lightweight design
180 deg up/down deflection180 deg up/down deflection with 350 mm working length

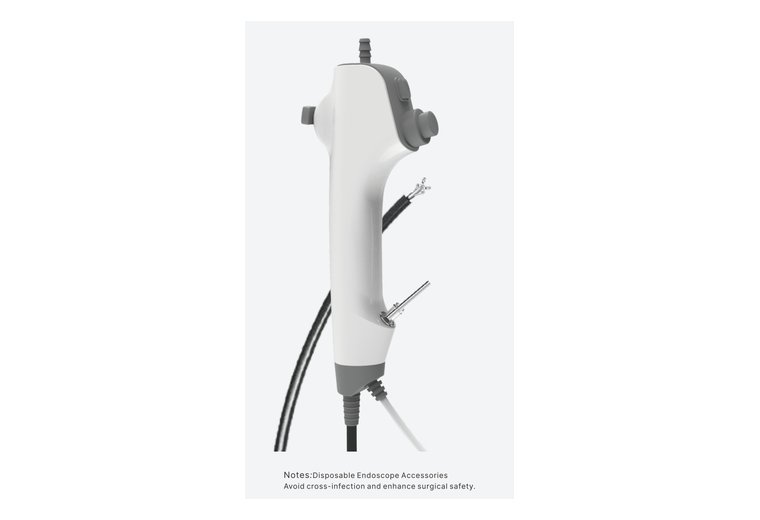

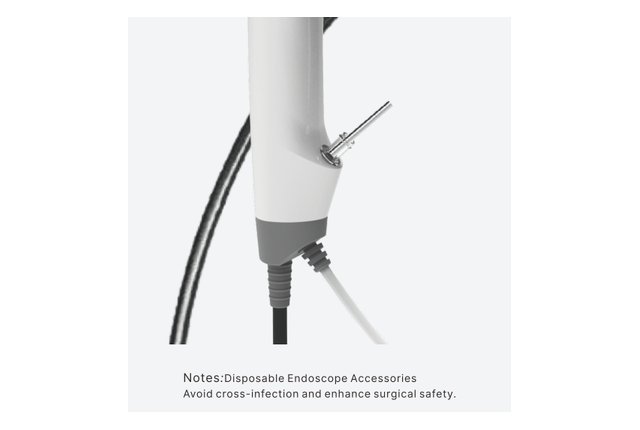

Actual Product Views
Review the product body, display connection and configuration details to match the model with the intended clinical workflow.
Physical Configuration Table
Designed for ENT examination with slim flexible access and HD digital visualization.
| Product code | RD101 |
|---|---|
| Clinical workflow | ENT / rhinolaryngoscopy |
| Model options | 160K pixel models: RD2000, RD2812, RD3816, RD4222, RD4826; 1.0 MP models: RD3800, RD4816 |
| Outer diameter / blade options | 2.0-4.8 mm |
| Working channel | 0.0-2.6 mm |
| Image resolution | 400×400 or 1280×720 |
| Field of view | 120 deg |
| Depth of field | 5-50 mm |
| Configuration note | Designed for ENT examination with slim flexible access and HD digital visualization. |
Technical Specifications
| 160K pixel models | RD2000, RD2812, RD3816, RD4222, RD4826 |
|---|---|
| 1.0 MP models | RD3800, RD4816 |
| Tube OD | 2.0-4.8 mm |
| Channel ID | 0.0-2.6 mm |
| Resolution | 400×400 or 1280×720 |
| Field of view | 120 deg |
| Depth of field | 5-50 mm |
Ordering Notes
Before quotation, confirm the intended procedure, model code, insertion or blade size, channel diameter, compatible display or processor, accessory list and local registration needs.
- Model code and procedure type
- Insertion size or blade size
- Working-channel diameter
- Display or processor compatibility
- Single-use sterile workflow
- Local registration and package requirements
Inquiry Support
Use the product inquiry module at the bottom of this page to send quotation requirements. Share the model code, procedure type and display or processor requirements so Camjoy can confirm the correct configuration.
