Urology / Surgical Devices – Camjoy CN201 Classic Thulium-Holmium Laser System

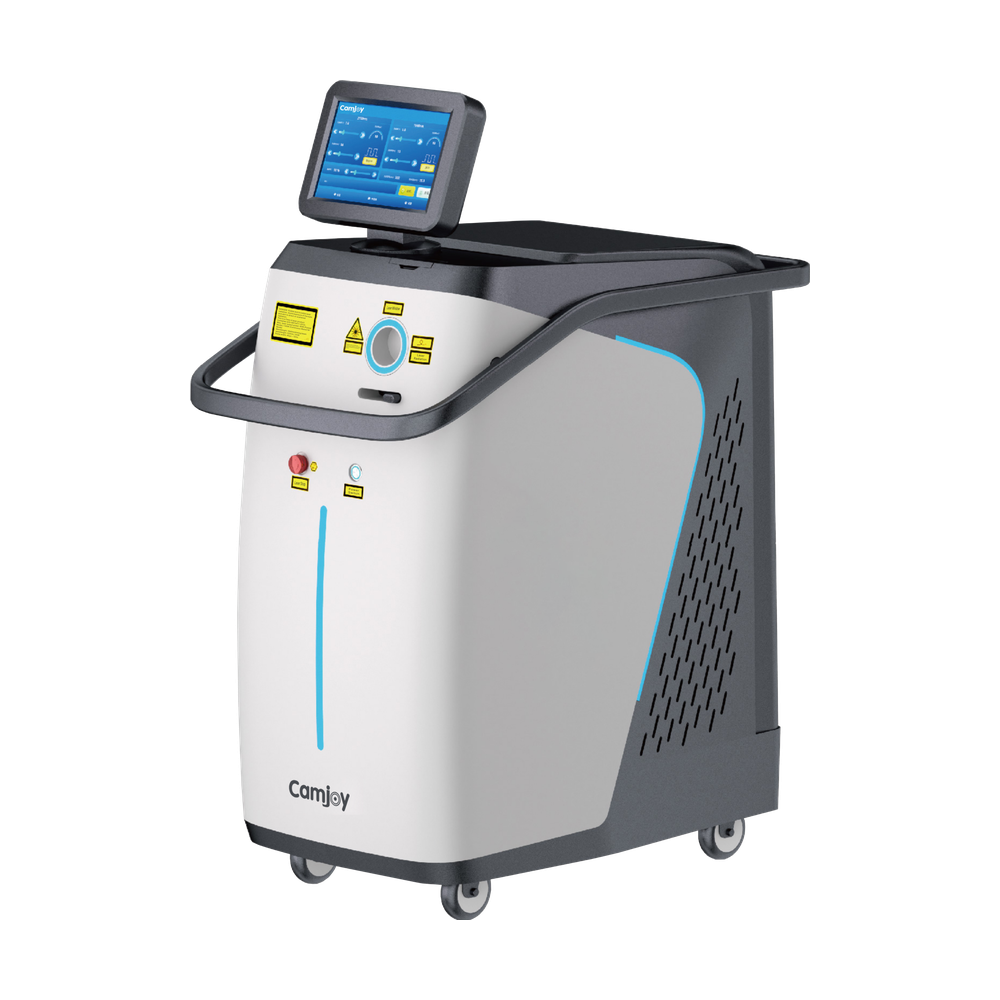

Camjoy CN201 Classic Thulium-Holmium Laser System
Thulium-holmium platform for lithotripsy and soft-tissue workflows.
The CN201 classic thulium-holmium laser system brings thulium laser workflow concepts into a high-output surgical platform. It is designed for lithotripsy of urinary calculi, vaporization and coagulation of urinary tract tumors, and BPH-related endoscopic treatment planning.
Clinical Positioning
CN201 is the classic thulium-holmium model in the Camjoy laser range. Compared with traditional Ho:YAG-only positioning, thulium-holmium laser workflows emphasize high water absorption, fine fiber compatibility and flexible stone dusting strategies.
Common Use Scenarios
- Urinary calculi lithotripsy and dusting workflows
- Vaporization and coagulation of urinary tract tumor tissue
- Benign prostatic hyperplasia related endoscopic procedures
- Fine-fiber endoscopic laser procedures requiring precise energy delivery
Key Advantages
The system is organized around clinical usability: clear parameter setup, fiber compatibility, output stability and practical accessory matching for endoscopic laser programs.
Technical Parameters
Core specifications help procurement teams compare output reserve, pulse settings, display configuration and laser-fiber compatibility before confirming the final configuration.
| Model | CN201 |
|---|---|
| Single-pulse energy | 0.5-5.0J |
| Operating frequency | 1-60Hz |
| Maximum output at terminal | 150W |
| Applicable optical fiber | 150um-1000um |
| Pulse width | 800us |
| Display mode | 10-inch color LCD screen |
| Power supply | 220V / 50Hz |
| Display function | Expert clinical database |
Laser Fiber and Accessory Compatibility
Camjoy laser systems can be configured with SMA-905 medical laser fibers and matched operating accessories for endoscopic lithotripsy, soft-tissue laser work and routine department use.
Fiber Optic detector
Fiber Optic stripper
Fiber optic cutter
550um medical laser fiber
200um medical laser fiber
Fiber Optic detection head
Foot switch
Metal accessory box
| Compatible wavelengths | 1940nm / 2100nm workflows |
|---|---|
| Fiber interface | Standard SMA-905 |
| Fiber options | 200um / 550um and other configured diameters |
| Fiber length | 2m / 3m / 4m options |
| Typical clinical access | Large-channel high-power output or narrow-lumen precise operation |
| Sterilization | Ethylene oxide or low-temperature plasma sterilization according to fiber configuration |
Workflow Notes for Procurement Teams
Camjoy CN201 Classic Thulium-Holmium Laser System is intended to be specified as a system package rather than a standalone console. Typical planning includes the host laser unit, compatible laser fibers, foot switch, fiber preparation tools, safety eyewear, accessory storage and after-sales support. Final clinical use should follow local registration status, approved indications and hospital protocols.
Request a Quote for CN201
Share the target department, preferred model, wavelength requirement, fiber diameter, fiber length, reusable or single-use preference and estimated order quantity so Camjoy can prepare a CN201 configuration proposal.
