Urology / Surgical Devices – Camjoy CN105 GREAT High-Power Holmium Laser System

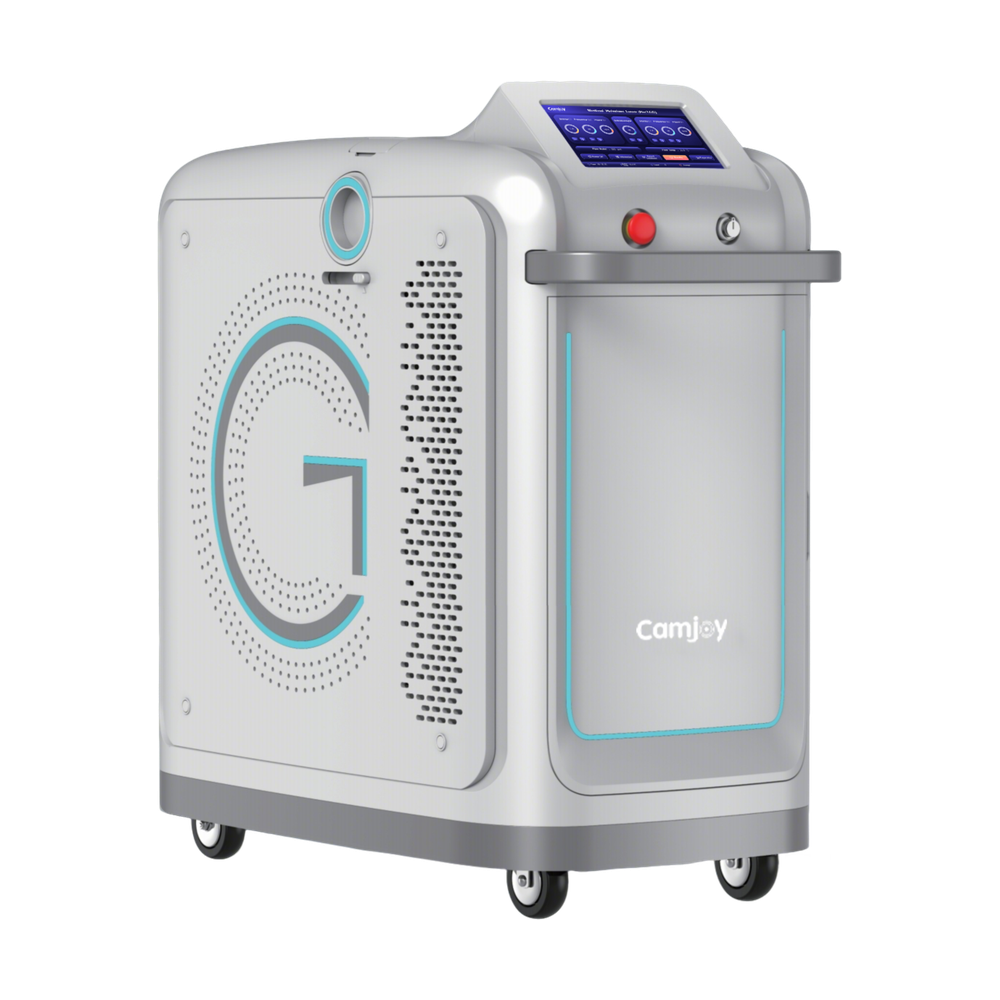

Camjoy CN105 GREAT High-Power Holmium Laser System
High-power Ho:YAG laser with four laser generators.
The CN105 GREAT high-power holmium laser system is designed for demanding urology laser procedures that require higher energy reserve, stable discharge control and convenient foot-pedal operation. The system uses four laser generators and IGBT square-wave discharge technology for consistent high-power workflows.
Clinical Positioning
CN105 is the high-power Ho:YAG model for hospitals that need greater output reserve for lithotripsy, BPH-related procedures and multi-department laser use. It keeps the Camjoy expert database interface while adding power-focused hardware features.
Common Use Scenarios
- High-output urology lithotripsy workflows
- Benign prostatic hyperplasia related laser procedures
- Multi-department laser treatment planning
- Clinical programs that need stronger terminal output and workflow control
Key Advantages
The system is organized around clinical usability: clear parameter setup, fiber compatibility, output stability and practical accessory matching for endoscopic laser programs.
Technical Parameters
Core specifications help procurement teams compare output reserve, pulse settings, display configuration and laser-fiber compatibility before confirming the final configuration.
| Model | CN105 |
|---|---|
| Maximum single-pulse energy | 0.5-5.0J |
| Maximum operating frequency | 1-60Hz |
| Maximum output at terminal | 120W |
| Applicable optical fiber | 150um-1000um |
| Pulse width | 800us |
| Display mode | 10-inch color LCD screen |
| Power supply | 220V / 50Hz |

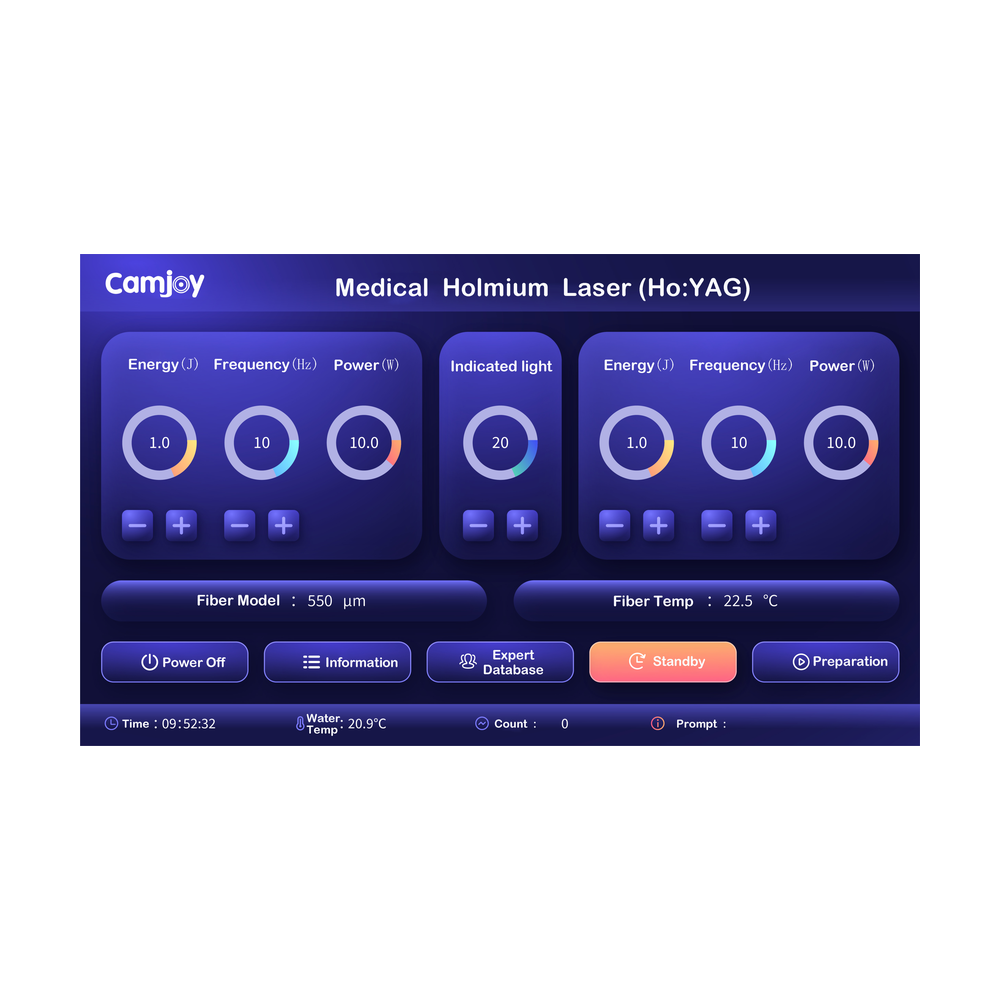

| Display function | Expert clinical database |
Laser Fiber and Accessory Compatibility
Camjoy laser systems can be configured with SMA-905 medical laser fibers and matched operating accessories for endoscopic lithotripsy, soft-tissue laser work and routine department use.
Fiber Optic detector
Fiber Optic stripper
Fiber optic cutter
550um medical laser fiber
200um medical laser fiber
Fiber Optic detection head
Foot switch
Metal accessory box
| Compatible wavelengths | 2100nm Ho:YAG workflows |
|---|---|
| Fiber interface | Standard SMA-905 |
| Fiber options | 200um / 550um and other configured diameters |
| Fiber length | 2m / 3m / 4m options |
| Typical clinical access | Large-channel high-power output or narrow-lumen precise operation |
| Sterilization | Ethylene oxide or low-temperature plasma sterilization according to fiber configuration |
Workflow Notes for Procurement Teams
Camjoy CN105 GREAT High-Power Holmium Laser System is intended to be specified as a system package rather than a standalone console. Typical planning includes the host laser unit, compatible laser fibers, foot switch, fiber preparation tools, safety eyewear, accessory storage and after-sales support. Final clinical use should follow local registration status, approved indications and hospital protocols.
Request a Quote for CN105
Share the target department, preferred model, wavelength requirement, fiber diameter, fiber length, reusable or single-use preference and estimated order quantity so Camjoy can prepare a CN105 configuration proposal.
