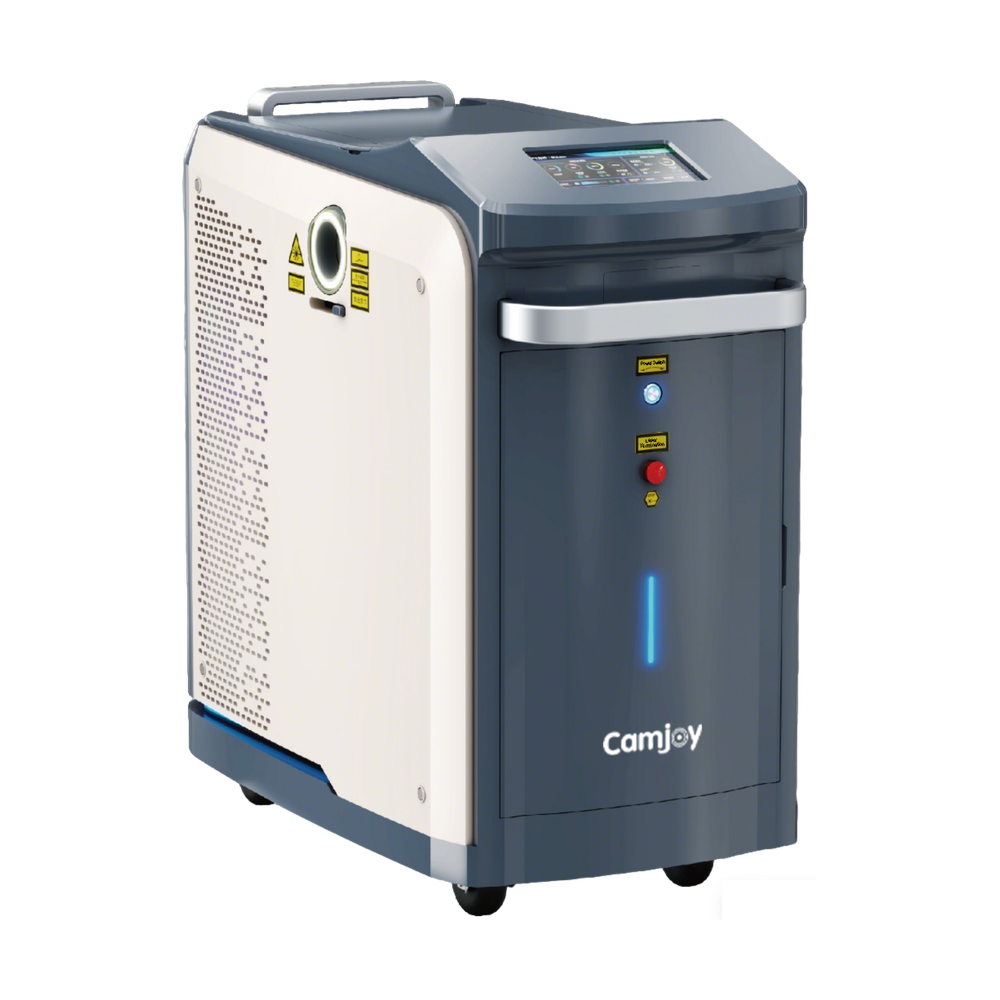

Urology / Surgical Devices – Camjoy CN104 Dual-Wavelength Holmium and Diode Laser System
Camjoy CN104 Dual-Wavelength Holmium and Diode Laser System
2100nm + 980nm dual-wavelength platform for stone and soft-tissue work.
The CN104 dual wavelength laser system integrates 2100nm holmium output and 980nm diode output in one platform. It is designed for teams that need calculus treatment plus soft-tissue cutting, vaporization and coagulation support from a single laser console.
Clinical Positioning
CN104 is the combined-wavelength model in the Camjoy laser family. It suits facilities seeking a broader surgical laser toolset, especially where stone management and soft-tissue hemostasis may both be part of the equipment plan.
Common Use Scenarios
- Calculus treatment and endoscopic lithotripsy workflows
- Soft-tissue cutting, vaporization and coagulation support
- Urology, pulmonology, gynecology, orthopedics, gastroenterology and dermatology use
- Procedures requiring a balance of ablation efficiency and hemostasis support
Key Advantages
The system is organized around clinical usability: clear parameter setup, fiber compatibility, output stability and practical accessory matching for endoscopic laser programs.
Technical Parameters
Core specifications help procurement teams compare output reserve, pulse settings, display configuration and laser-fiber compatibility before confirming the final configuration.
| Model | CN104 |
|---|---|
| Laser wavelength | 2100nm + 980nm |
| Output module 1 | 2100nm |
| Output module 2 | 980nm |
| Output module 3 | 2100nm + 980nm |
| Applicable optical fiber | 150um-1000um |
| Laser transmission system | Multiple fiber specifications, reusable |
| Control mode | 10-inch color LCD touch-screen control |
| Power supply | 220V / 50Hz |
| Display function | Expert clinical database |
Laser Fiber and Accessory Compatibility
Camjoy laser systems can be configured with SMA-905 medical laser fibers and matched operating accessories for endoscopic lithotripsy, soft-tissue laser work and routine department use.
Fiber Optic detector
Fiber Optic stripper
Fiber optic cutter
550um medical laser fiber
200um medical laser fiber
Fiber Optic detection head
Foot switch
Metal accessory box
| Compatible wavelengths | 2100nm / 980nm workflows |
|---|---|
| Fiber interface | Standard SMA-905 |
| Fiber options | 200um / 550um and other configured diameters |
| Fiber length | 2m / 3m / 4m options |
| Typical clinical access | Large-channel high-power output or narrow-lumen precise operation |
| Sterilization | Ethylene oxide or low-temperature plasma sterilization according to fiber configuration |
Workflow Notes for Procurement Teams
Camjoy CN104 Dual-Wavelength Holmium and Diode Laser System is intended to be specified as a system package rather than a standalone console. Typical planning includes the host laser unit, compatible laser fibers, foot switch, fiber preparation tools, safety eyewear, accessory storage and after-sales support. Final clinical use should follow local registration status, approved indications and hospital protocols.
Request a Quote for CN104
Share the target department, preferred model, wavelength requirement, fiber diameter, fiber length, reusable or single-use preference and estimated order quantity so Camjoy can prepare a CN104 configuration proposal.
