Urology / Surgical Devices – Camjoy CN103 Medical Holmium Laser System

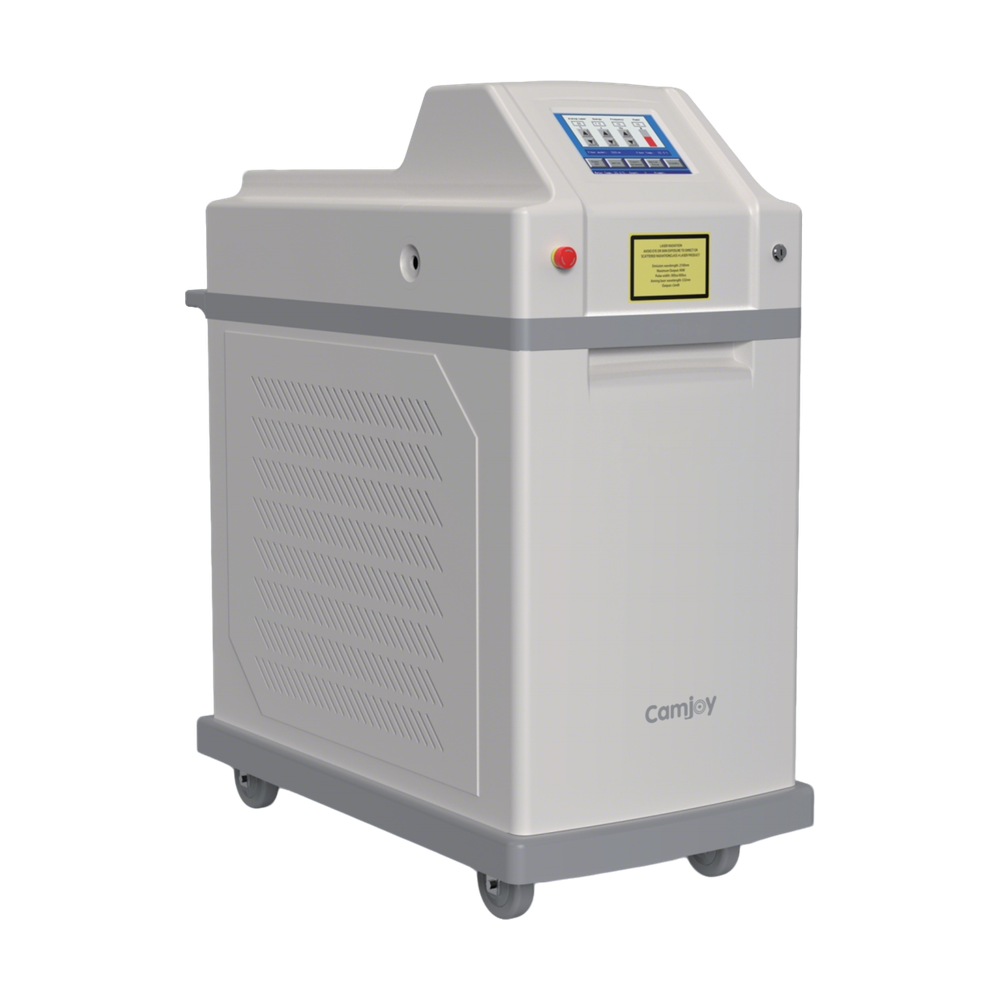

Camjoy CN103 Medical Holmium Laser System
100W Ho:YAG laser platform for lithotripsy and tissue workflows.
The CN103 medical holmium laser system is configured for urology departments that need a stronger Ho:YAG laser for urinary calculi, cystoscopic treatment support and BPH-related endoscopic workflows. It pairs a 10-inch color display with a broad energy and frequency range for practical procedure setup.
Clinical Positioning
CN103 is a mid-to-high power holmium laser platform in the Camjoy lineup. It is intended for hospitals that need stronger output than portable systems while keeping a clear and familiar operating interface.
Common Use Scenarios
- Nephrolithotomy, ureterolithotomy and cystolithotomy support
- Urology stone fragmentation and dusting workflows
- Benign prostatic hyperplasia related endoscopic laser procedures
- Multi-department laser use with compatible optical fibers
Key Advantages
The system is organized around clinical usability: clear parameter setup, fiber compatibility, output stability and practical accessory matching for endoscopic laser programs.
Technical Parameters
Core specifications help procurement teams compare output reserve, pulse settings, display configuration and laser-fiber compatibility before confirming the final configuration.
| Model | CN103 |
|---|---|
| Maximum single-pulse energy | 0.5-5.0J |
| Maximum operating frequency | 1-50Hz |
| Average output at terminal | 100W |
| Applicable optical fiber | 150um-1000um |
| Pulse width | 300us / 800us |

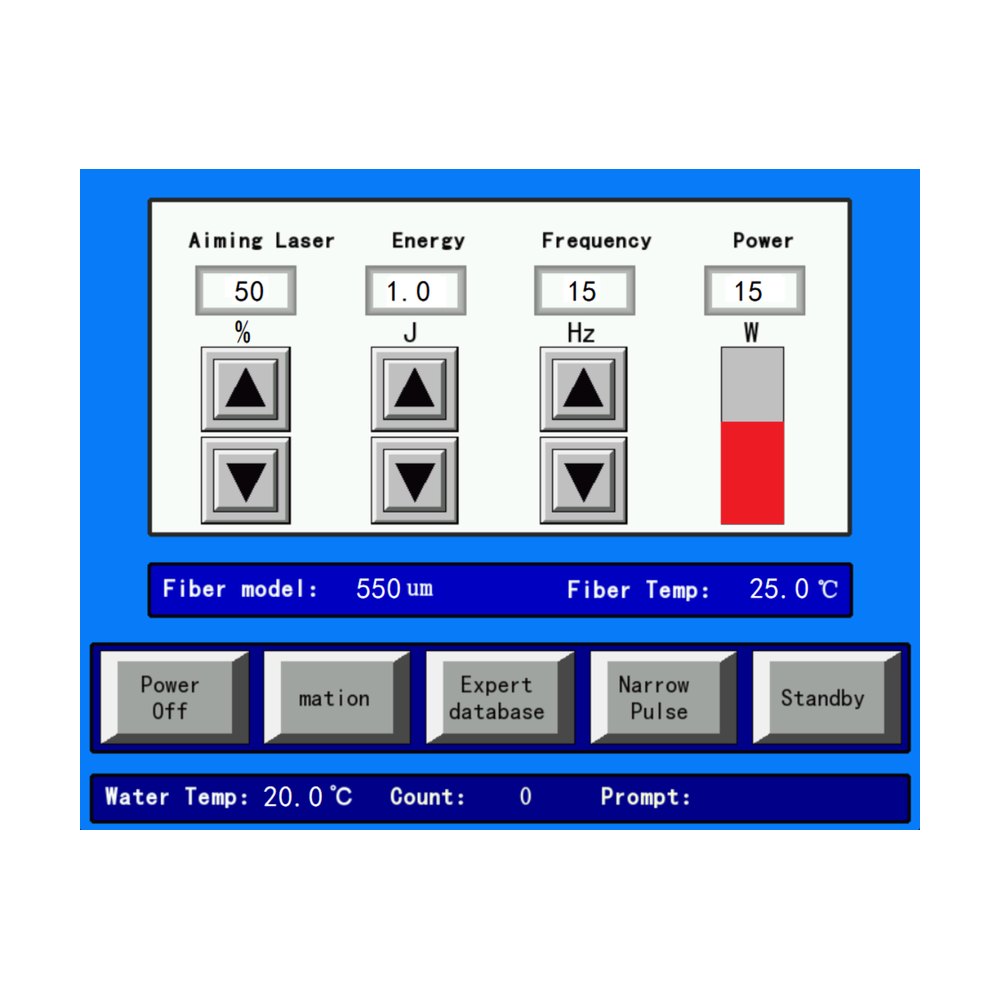

| Display mode | 10-inch color LCD screen |
| Power supply | 220V / 50Hz |
| Display function | Expert clinical database |
Laser Fiber and Accessory Compatibility
Camjoy laser systems can be configured with SMA-905 medical laser fibers and matched operating accessories for endoscopic lithotripsy, soft-tissue laser work and routine department use.
Fiber Optic detector
Fiber Optic stripper
Fiber optic cutter
550um medical laser fiber
200um medical laser fiber
Fiber Optic detection head
Foot switch
Metal accessory box
| Compatible wavelengths | 2100nm Ho:YAG workflows |
|---|---|
| Fiber interface | Standard SMA-905 |
| Fiber options | 200um / 550um and other configured diameters |
| Fiber length | 2m / 3m / 4m options |
| Typical clinical access | Large-channel high-power output or narrow-lumen precise operation |
| Sterilization | Ethylene oxide or low-temperature plasma sterilization according to fiber configuration |
Workflow Notes for Procurement Teams
Camjoy CN103 Medical Holmium Laser System is intended to be specified as a system package rather than a standalone console. Typical planning includes the host laser unit, compatible laser fibers, foot switch, fiber preparation tools, safety eyewear, accessory storage and after-sales support. Final clinical use should follow local registration status, approved indications and hospital protocols.
Request a Quote for CN103
Share the target department, preferred model, wavelength requirement, fiber diameter, fiber length, reusable or single-use preference and estimated order quantity so Camjoy can prepare a CN103 configuration proposal.
