Urology / Surgical Devices – Camjoy CN102 Vertical Holmium Laser System

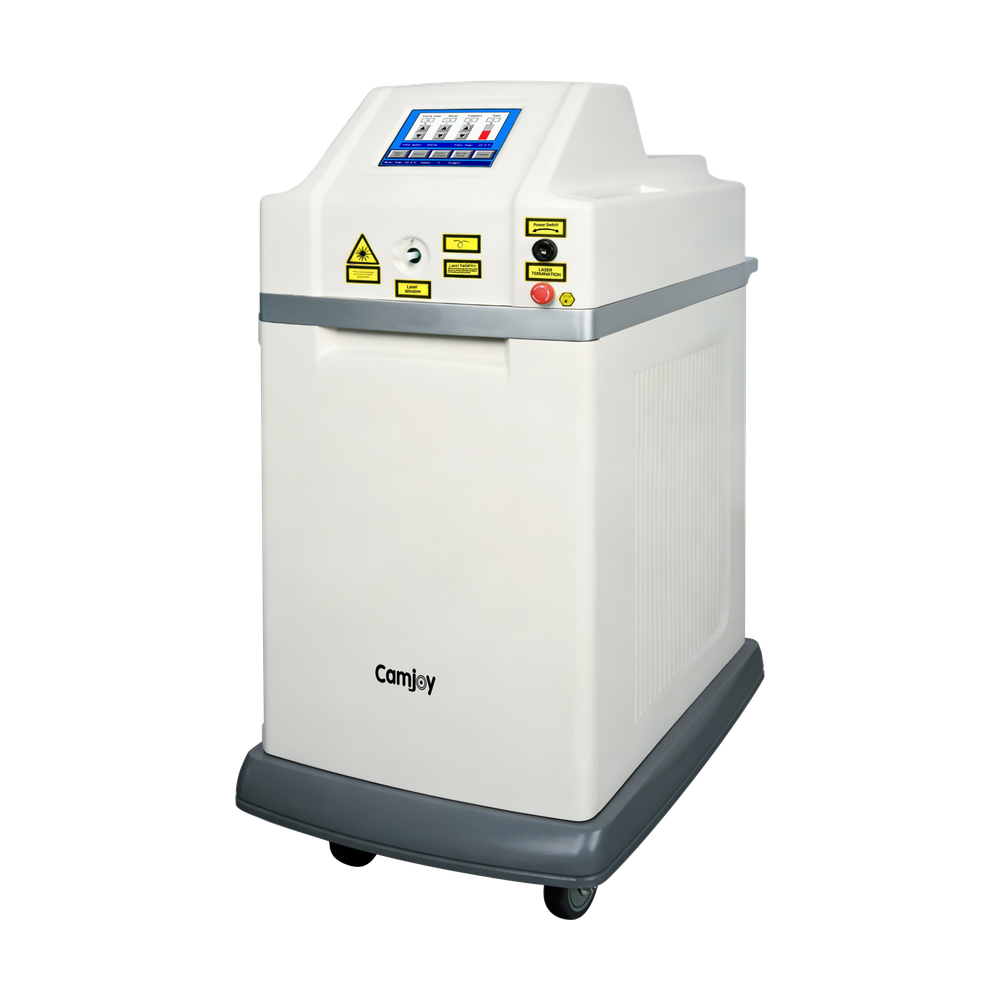

Camjoy CN102 Vertical Holmium Laser System
High-energy vertical Ho:YAG laser for multi-department use.
The CN102 vertical holmium laser system is designed for clinical teams that need a higher-power Ho:YAG laser with stable output, multi-core laser generation and intelligent fiber recognition. It supports urology lithotripsy as well as selected soft-tissue laser workflows across multiple departments.
Clinical Positioning
CN102 fits facilities that prefer a vertical cabinet design, larger output reserve and clear safety-oriented coupling control. The platform is positioned between portable systems and high-power holmium configurations.
Common Use Scenarios
- Urology stone fragmentation and endoscopic lithotripsy
- Pulmonology, gynecology, orthopedics, gastroenterology and dermatology workflows
- Hospital departments that need a shared laser platform
- Routine endoscopic laser procedures with 150-1000um fibers
Key Advantages
The system is organized around clinical usability: clear parameter setup, fiber compatibility, output stability and practical accessory matching for endoscopic laser programs.
Technical Parameters
Core specifications help procurement teams compare output reserve, pulse settings, display configuration and laser-fiber compatibility before confirming the final configuration.
| Model | CN102 |
|---|---|
| Maximum single-pulse energy | 0.5-4.0J |
| Maximum operating frequency | 1-30Hz |
| Average output at terminal | 60W |
| Applicable optical fiber | 150um-1000um |
| Pulse width | 300us / 600us |

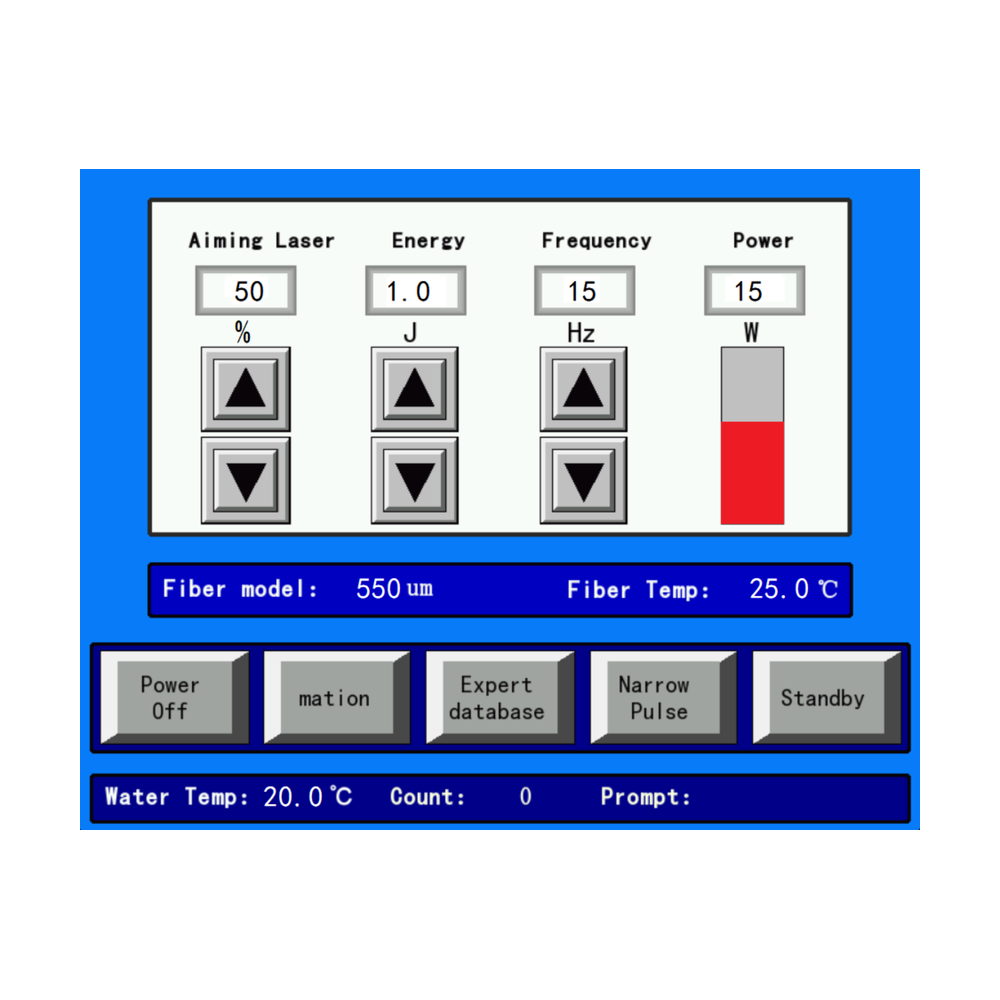

| Display mode | 12-inch color LCD screen |
| Power supply | 220V / 50Hz |
| Display function | Expert clinical database |
Laser Fiber and Accessory Compatibility
Camjoy laser systems can be configured with SMA-905 medical laser fibers and matched operating accessories for endoscopic lithotripsy, soft-tissue laser work and routine department use.
Fiber Optic detector
Fiber Optic stripper
Fiber optic cutter
550um medical laser fiber
200um medical laser fiber
Fiber Optic detection head
Foot switch
Metal accessory box
| Compatible wavelengths | 2100nm Ho:YAG workflows |
|---|---|
| Fiber interface | Standard SMA-905 |
| Fiber options | 200um / 550um and other configured diameters |
| Fiber length | 2m / 3m / 4m options |
| Typical clinical access | Large-channel high-power output or narrow-lumen precise operation |
| Sterilization | Ethylene oxide or low-temperature plasma sterilization according to fiber configuration |
Workflow Notes for Procurement Teams
Camjoy CN102 Vertical Holmium Laser System is intended to be specified as a system package rather than a standalone console. Typical planning includes the host laser unit, compatible laser fibers, foot switch, fiber preparation tools, safety eyewear, accessory storage and after-sales support. Final clinical use should follow local registration status, approved indications and hospital protocols.
Request a Quote for CN102
Share the target department, preferred model, wavelength requirement, fiber diameter, fiber length, reusable or single-use preference and estimated order quantity so Camjoy can prepare a CN102 configuration proposal.
