Urology / Surgical Devices – Camjoy CN101 Portable Holmium Laser System

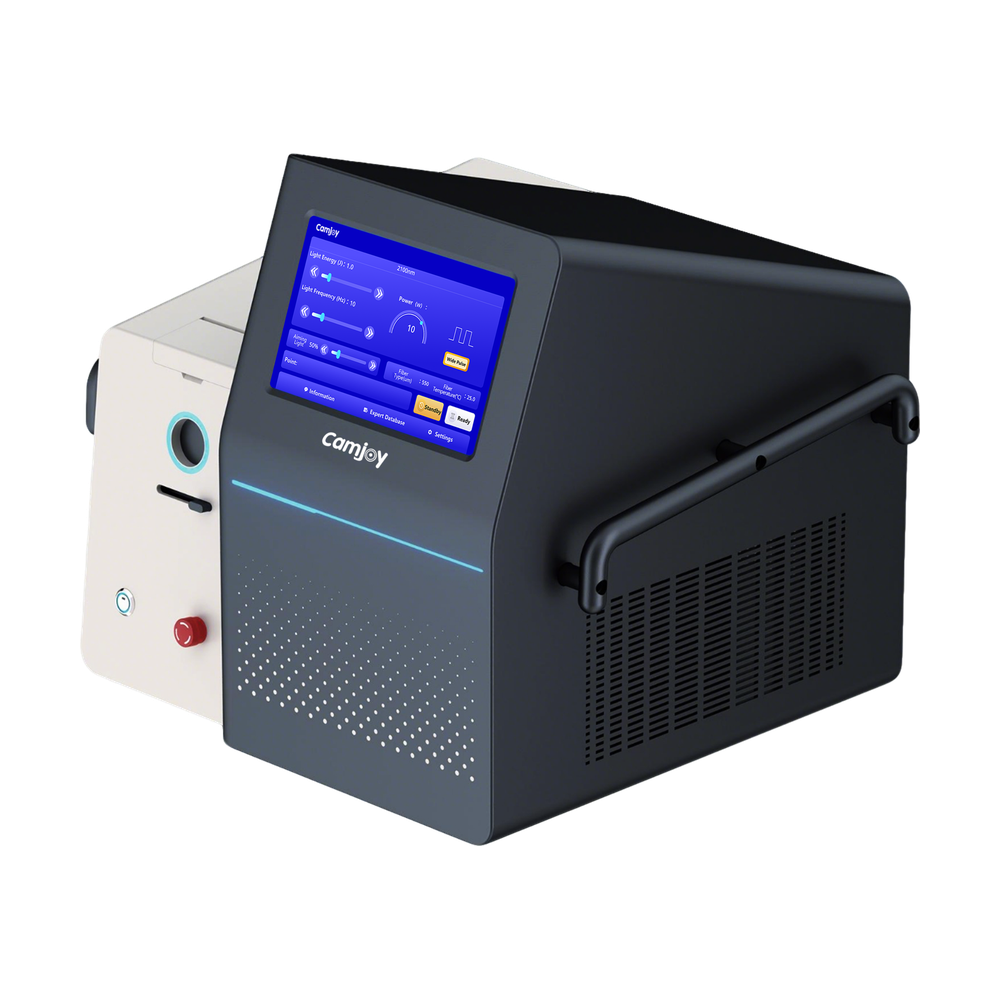

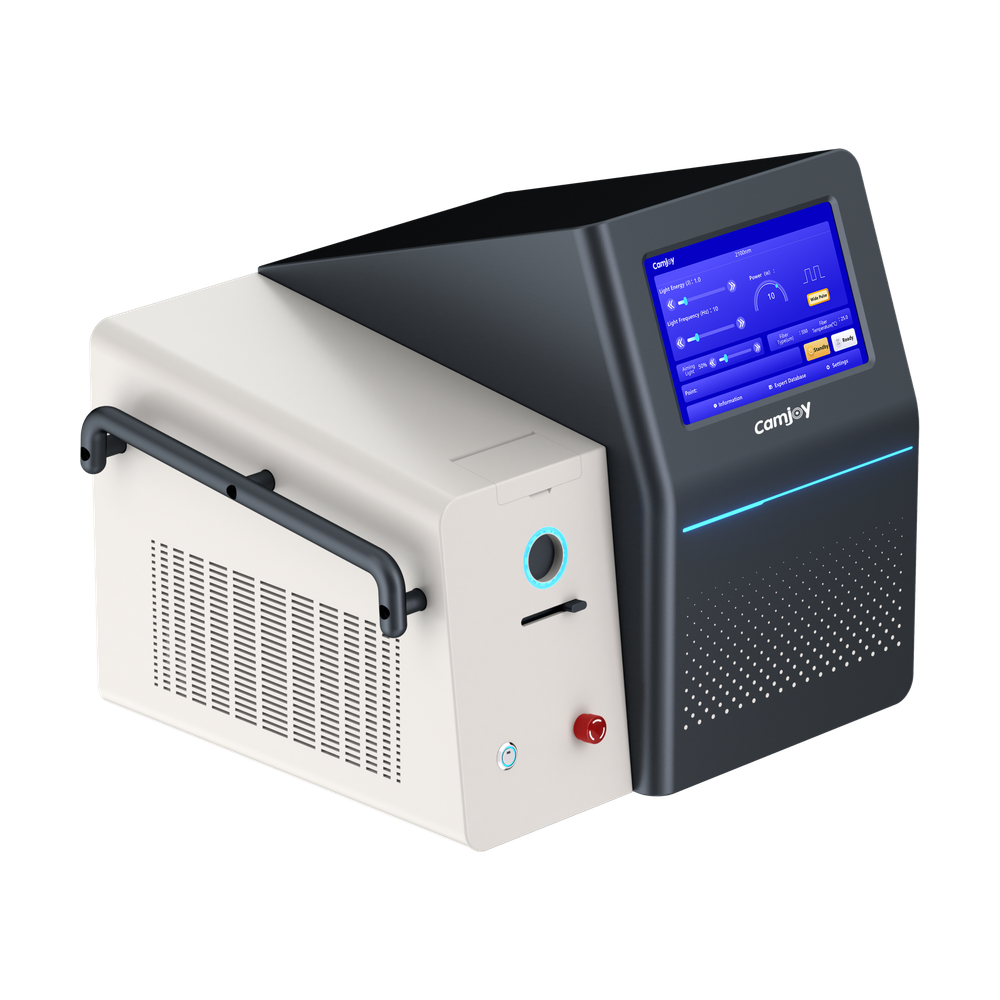

Camjoy CN101 Portable Holmium Laser System
Portable Ho:YAG laser platform for flexible urology workflows.
The CN101 portable holmium laser system is built for hospitals and distributors that need a compact Ho:YAG laser for urinary stone fragmentation, ureteroscopic lithotripsy and daily endoscopic urology workflows. The platform combines a 12-inch color display, expert procedure presets and broad fiber compatibility in a mobile footprint.
Clinical Positioning
CN101 is the entry portable model in the Camjoy holmium laser family. It is suitable for urology and pulmonology teams that prioritize mobility, straightforward parameter control and reliable compatibility with fine endoscopic laser fibers.
Common Use Scenarios
- Ureteroscopic lithotripsy and nephrolithotomy support
- Cystoscopic stone management workflows
- Flexible endoscope procedures using fine laser fibers
- Distributor demos, training rooms and mobile clinical setups
Key Advantages
The system is organized around clinical usability: clear parameter setup, fiber compatibility, output stability and practical accessory matching for endoscopic laser programs.
Technical Parameters
Core specifications help procurement teams compare output reserve, pulse settings, display configuration and laser-fiber compatibility before confirming the final configuration.
| Model | CN101 |
|---|---|
| Maximum single-pulse energy | 0.5-4.0J |
| Maximum operating frequency | 1-20Hz |
| Average output at terminal | 40W |
| Applicable optical fiber | 150um-1000um |
| Pulse width | 300us / 600us |

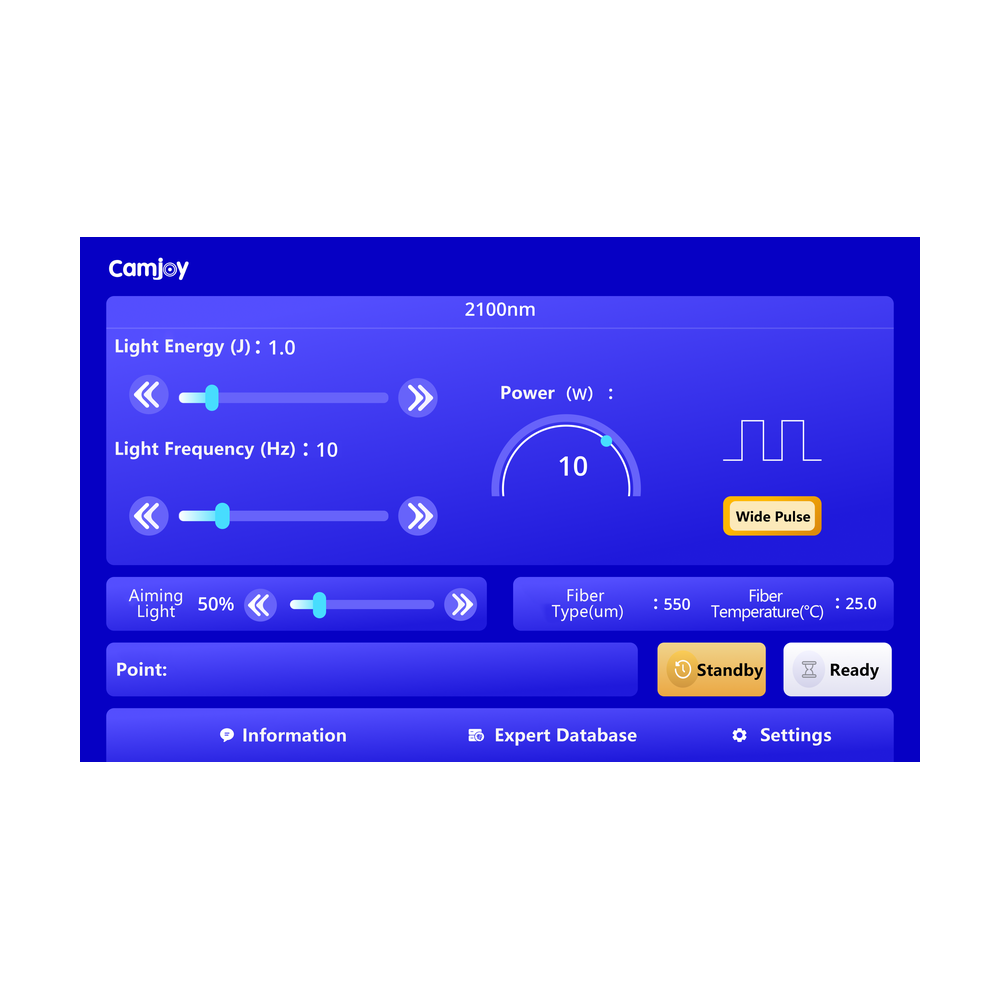

| Display mode | 12-inch color LCD screen |
| Power supply | 220V / 50Hz |
| Display function | Expert clinical database |
Laser Fiber and Accessory Compatibility
Camjoy laser systems can be configured with SMA-905 medical laser fibers and matched operating accessories for endoscopic lithotripsy, soft-tissue laser work and routine department use.
Fiber Optic detector
Fiber Optic stripper
Fiber optic cutter
550um medical laser fiber
200um medical laser fiber
Fiber Optic detection head
Foot switch
Metal accessory box
| Compatible wavelengths | 2100nm Ho:YAG workflows |
|---|---|
| Fiber interface | Standard SMA-905 |
| Fiber options | 200um / 550um and other configured diameters |
| Fiber length | 2m / 3m / 4m options |
| Typical clinical access | Large-channel high-power output or narrow-lumen precise operation |
| Sterilization | Ethylene oxide or low-temperature plasma sterilization according to fiber configuration |
Workflow Notes for Procurement Teams
Camjoy CN101 Portable Holmium Laser System is intended to be specified as a system package rather than a standalone console. Typical planning includes the host laser unit, compatible laser fibers, foot switch, fiber preparation tools, safety eyewear, accessory storage and after-sales support. Final clinical use should follow local registration status, approved indications and hospital protocols.
Request a Quote for CN101
Share the target department, preferred model, wavelength requirement, fiber diameter, fiber length, reusable or single-use preference and estimated order quantity so Camjoy can prepare a CN101 configuration proposal.
