Camjoy Electronic Endoscope / LR103
Camjoy LR103 Reusable Flexible Video Laryngoscope
Reusable flexible video laryngoscope with working-channel options.
LR103 combines a reusable flexible laryngoscope platform with HD imaging, one-touch capture and 160K or 1.0 MP insertion-section choices.
WorkflowAirway management
Image system400×400 or 1280×720
Model familyLR103
Product Highlights
HD imagingHD imaging and stable transmission
One-touch image freezeOne-touch image freeze
Waterproof ergonomic handleWaterproof ergonomic handle
210 deg up deflection210 deg up deflection with 600 mm working length

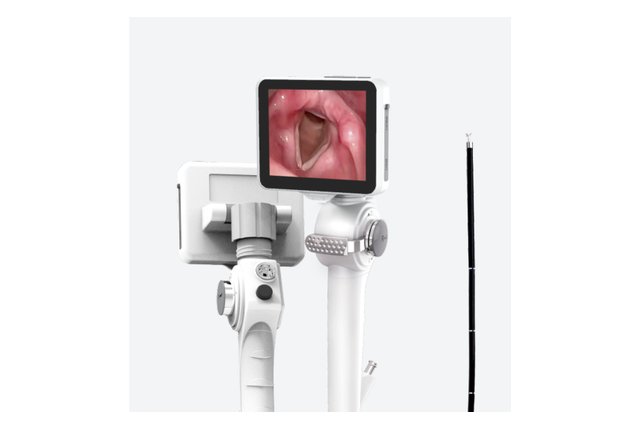

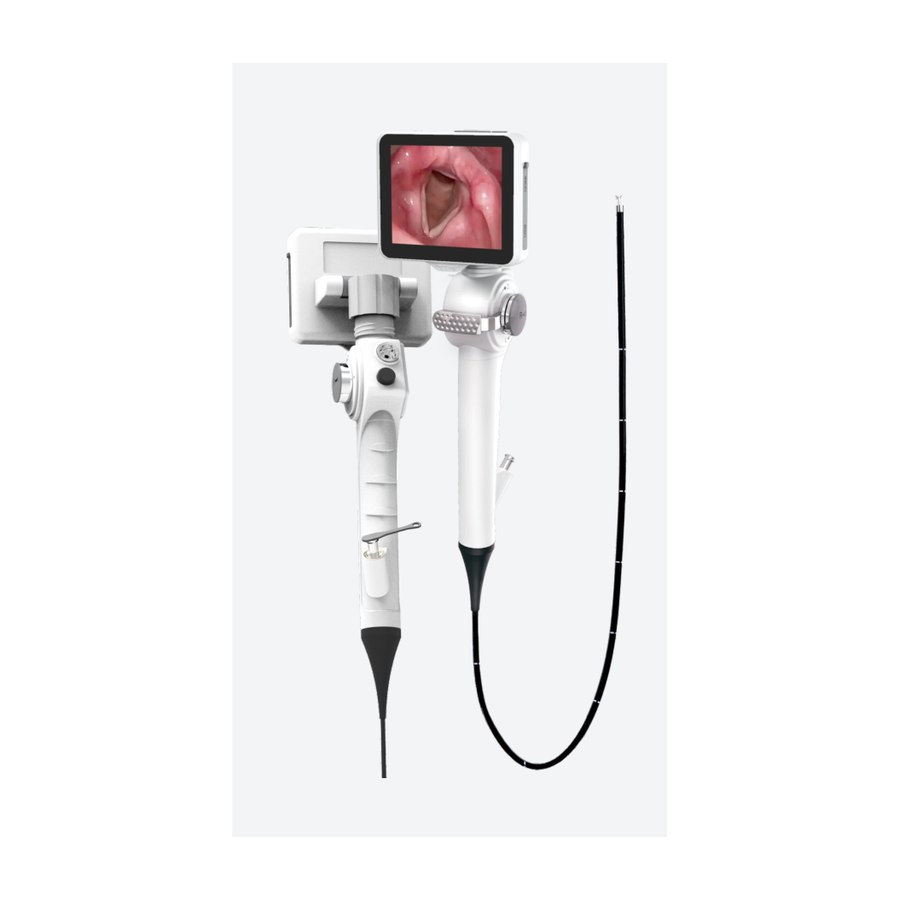

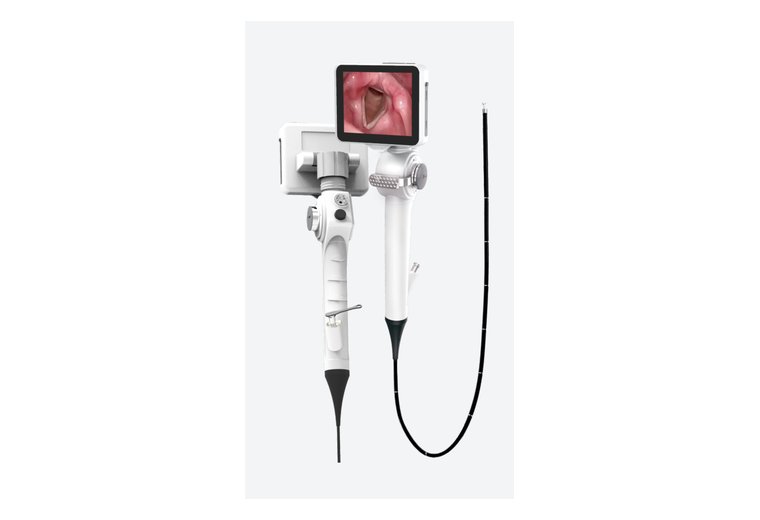

Actual Product Views
Review the product body, display connection and configuration details to match the model with the intended clinical workflow.
Physical Configuration Table
Supports intubation visualization, training and clinical airway assessment with digital display options.
| Product code | LR103 |
|---|---|
| Clinical workflow | Airway management |
| Model options | 160K pixel models: LR2812, LR3818, LR4826, LR5230, LR5832; 1.0 MP models: LR3800, LR4816, LR5826 |
| Outer diameter / blade options | 2.8-5.8 mm |
| Working channel | 0.0-3.2 mm |
| Image resolution | 400×400 or 1280×720 |
| Field of view | 120 deg or 140 deg |
| Depth of field | 5-50 mm or 3-100 mm |
| Configuration note | Supports intubation visualization, training and clinical airway assessment with digital display options. |
Technical Specifications
| 160K pixel models | LR2812, LR3818, LR4826, LR5230, LR5832 |
|---|---|
| 1.0 MP models | LR3800, LR4816, LR5826 |
| Tube OD | 2.8-5.8 mm |
| Channel ID | 0.0-3.2 mm |
| Resolution | 400×400 or 1280×720 |
| Field of view | 120 deg or 140 deg |
| Depth of field | 5-50 mm or 3-100 mm |
Ordering Notes
Before quotation, confirm the intended procedure, model code, insertion or blade size, channel diameter, compatible display or processor, accessory list and local registration needs.
- Model code and procedure type
- Insertion size or blade size
- Working-channel diameter
- Display or processor compatibility
- Reusable cleaning workflow or accessory matching
- Local registration and package requirements
Inquiry Support
Use the product inquiry module at the bottom of this page to send quotation requirements. Share the model code, procedure type and display or processor requirements so Camjoy can confirm the correct configuration.
