Camjoy Electronic Endoscope / PL101

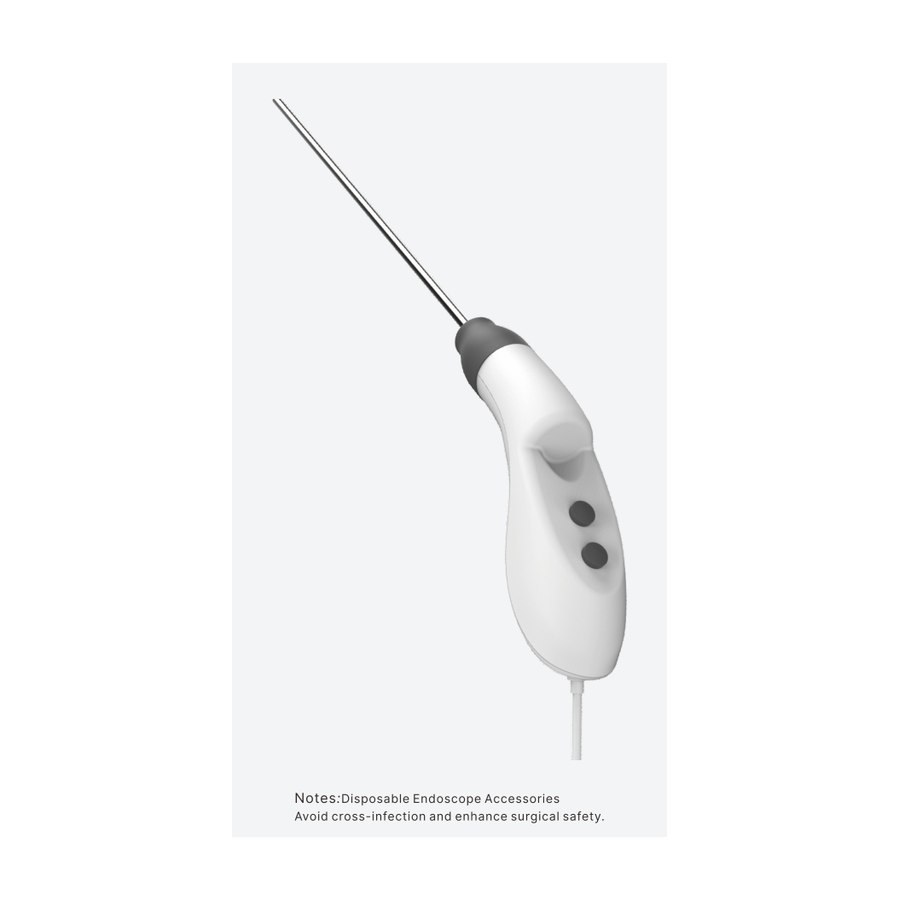

Camjoy PL101 Portable Laparoscope
Portable laparoscope with sterile single-use workflow options.
PL101 is a portable laparoscope family with HD camera options, anti-fog lens process and compact single-use configurations for clinical trial and mobile workflow planning.
WorkflowLaparoscopy
Image system400×400 / 1920×1080
Model familyPL101
Product Highlights
1.0 MP HD camera option1.0 MP HD camera option
Sterile packingSterile packing for infection-control planning
Cost-saving portable workflowCost-saving portable workflow
Anti-fog lens processAnti-fog lens process for clear observation
Actual Product Views
Review the product body, display connection and configuration details to match the model with the intended clinical workflow.
Physical Configuration Table
Portable digital laparoscope configuration for surgical visualization and compact procedure setups.
| Product code | PL101 |
|---|---|
| Clinical workflow | Laparoscopy |
| Model options | Models: PL2730, PL5030, PL1030 |
| Outer diameter / blade options | 2.7 mm, 5.0 mm, 10.0 mm |
| Image resolution | 400×400 / 1920×1080 |
| Field of view | 140 deg |
| Depth of field | 3-100 mm |
| Light source / output | LED |
| Configuration note | Portable digital laparoscope configuration for surgical visualization and compact procedure setups. |
Technical Specifications
| Models | PL2730, PL5030, PL1030 |
|---|---|
| Tube OD | 2.7 mm, 5.0 mm, 10.0 mm |
| Angle | 30 deg |
| Resolution | 400×400 / 1920×1080 |
| Depth of field | 3-100 mm |
| Field of view | 140 deg |
| Output | USB |
| Light source | LED |
Ordering Notes
Before quotation, confirm the intended procedure, model code, insertion or blade size, channel diameter, compatible display or processor, accessory list and local registration needs.
- Model code and procedure type
- Insertion size or blade size
- Working-channel diameter
- Display or processor compatibility
- Reusable cleaning workflow or accessory matching
- Local registration and package requirements
Inquiry Support
Use the product inquiry module at the bottom of this page to send quotation requirements. Share the model code, procedure type and display or processor requirements so Camjoy can confirm the correct configuration.
