Camjoy Electronic Endoscope / LR102

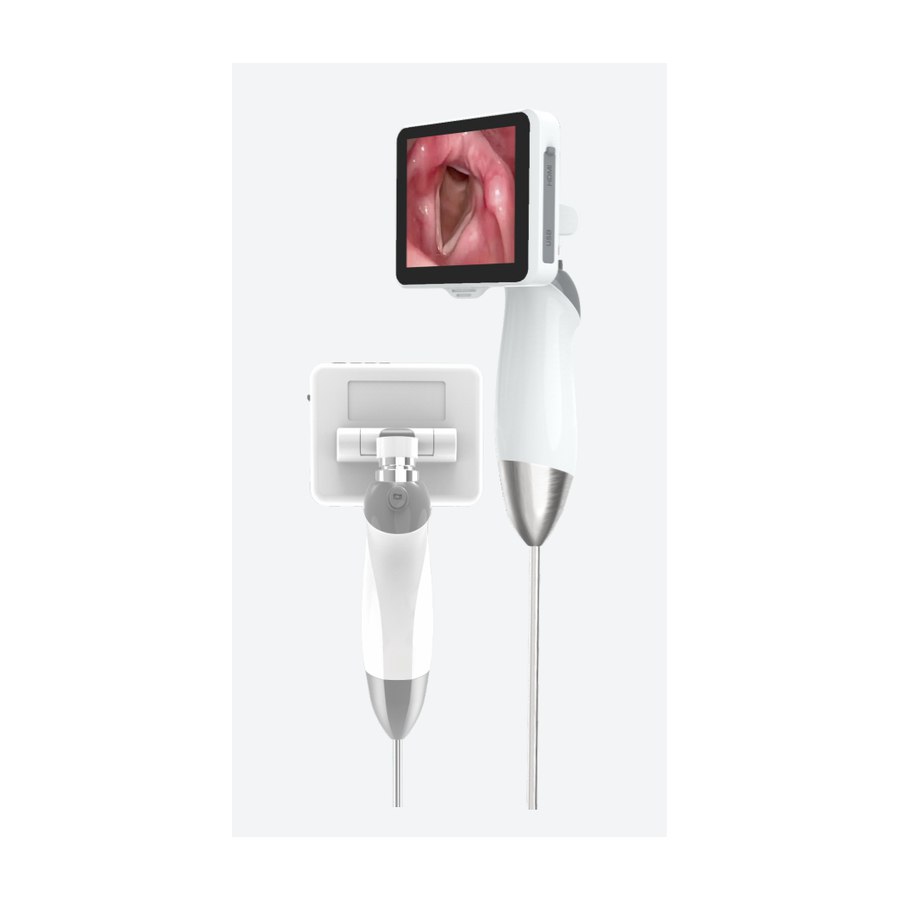

Camjoy LR102 Reusable Rigid Video Laryngoscope
Reusable rigid video laryngoscope with HD display and rigid tube design.
LR102 is a reusable rigid video laryngoscope for precise lesion assessment and airway visualization, using HD imaging, one-touch capture and a durable distal tip.
WorkflowAirway management
Image system1280×720
Model familyLR102
Product Highlights
HD imagingHD imaging and steady video transmission
One-touch image freezeOne-touch image freeze
Waterproof ergonomic handleWaterproof ergonomic handle
Durable distal tipDurable distal tip with antibacterial design

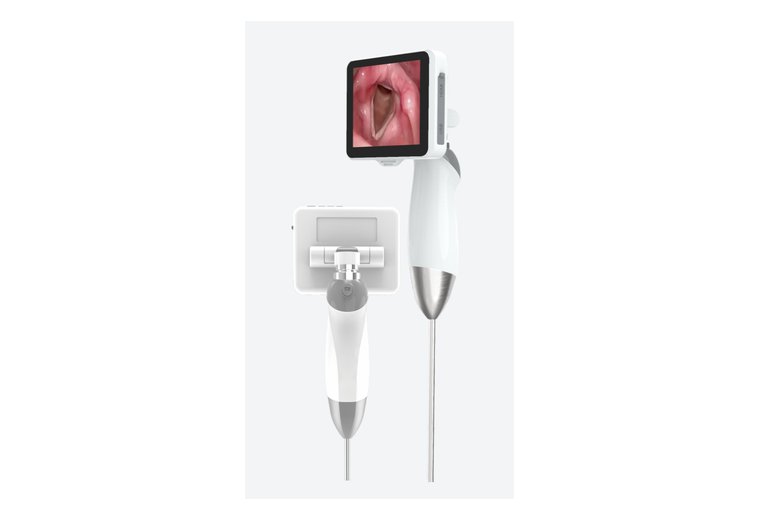

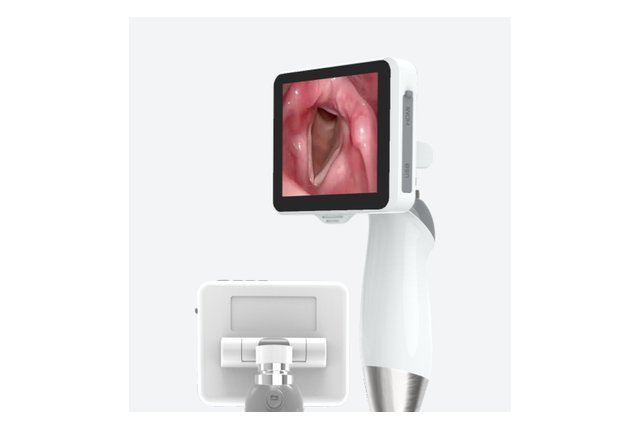

Actual Product Views
Review the product body, display connection and configuration details to match the model with the intended clinical workflow.
Physical Configuration Table
Supports intubation visualization, training and clinical airway assessment with digital display options.
| Product code | LR102 |
|---|---|
| Clinical workflow | Airway management |
| Model options | Model: LR4538 |
| Outer diameter / blade options | 4.5 mm |
| Bending / deflection | Customizable |
| Working length | 380 mm |
| Total length | 515 mm |
| Image resolution | 1280×720 |
| Field of view | 80 deg |
| Depth of field | 13-100 mm |
| Direction of view | Forward viewing |
| Configuration note | Supports intubation visualization, training and clinical airway assessment with digital display options. |
Technical Specifications
| Model | LR4538 |
|---|---|
| Tube OD | 4.5 mm |
| Resolution | 1280×720 |
| Field of view | 80 deg |
| Depth of field | 13-100 mm |
| Working length | 380 mm |
| Total length | 515 mm |
| Direction of view | Forward viewing |
| Deflection angle | Customizable |
Ordering Notes
Before quotation, confirm the intended procedure, model code, insertion or blade size, channel diameter, compatible display or processor, accessory list and local registration needs.
- Model code and procedure type
- Insertion size or blade size
- Working-channel diameter
- Display or processor compatibility
- Reusable cleaning workflow or accessory matching
- Local registration and package requirements
Inquiry Support
Use the product inquiry module at the bottom of this page to send quotation requirements. Share the model code, procedure type and display or processor requirements so Camjoy can confirm the correct configuration.
