Surgical detail
3840 x 2160 4K UHD resolution with fine image detail.

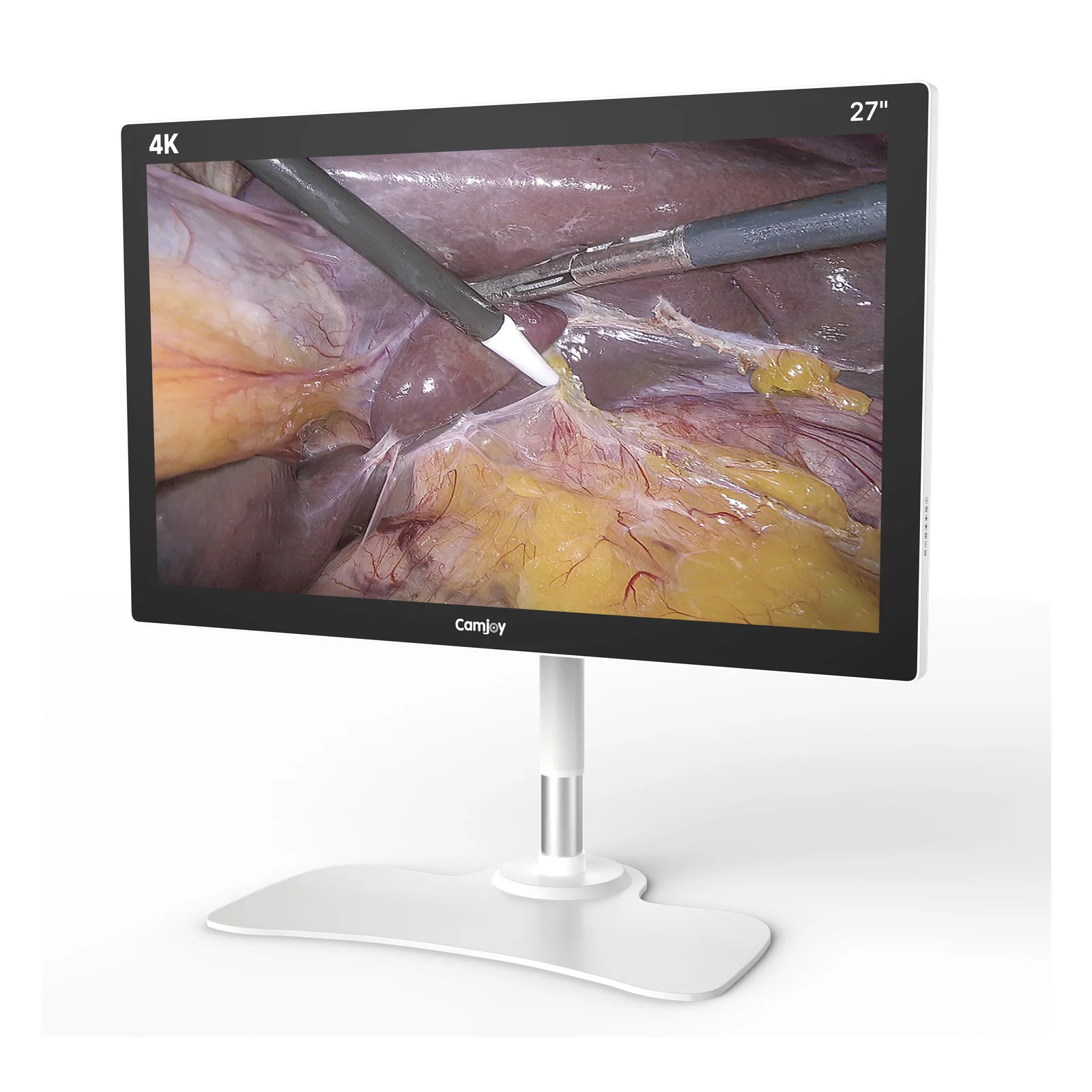

Endoscope Camera / Surgical Monitor – CK1
True-to-life 4K surgical visualization across five screen sizes.
The CK1 Series combines 3840 x 2160 resolution, a 178-degree viewing angle, 1.07 billion colors, an 8 ms response time and true 14-bit medical calibration depth for detailed endoscopic display.
Its fully bonded black bezel reduces reflection, supports easier cleaning and provides a modern near-borderless viewing surface.
3840 x 2160
24-55"
1000 cd/m2
178 degrees
Core Display Features
Medical color modes
Gamma 1.8/2.0/2.2/2.4, sRGB, DICOM, BT.709 and BT.2020 support.
Clinical enclosure
Its fully bonded black bezel reduces reflection, supports easier cleaning and provides a modern near-borderless viewing surface.
Flexible connectivity
Model-dependent DVI, HDMI, DisplayPort, USB, VGA and SDI interfaces.
Actual Product Views
Review the monitor body, bezel finish, stand and available screen sizes before selecting a configuration.
Model and Physical Configuration
Choose the required screen size and confirm the dimensions, weight, brightness, video interfaces and mounting pattern.
| Model | Screen size | Dimensions (mm) | Net weight (kg) | Brightness (cd/m2) | Contrast ratio | Power consumption | Input | Output | Input power | Mounting |
|---|---|---|---|---|---|---|---|---|---|---|
| CK124 | 24 | 575 x 380 x 75 | 8 | 1000 | 1200:1 | <120W | DVI / HDMI-IN / HDMI / DP-1 / DP-2 / USB / VGA | HDMI-OUT / DP-OUT | DC 24V | 100 x 100 mm |
| CK127 | 27 | 660 x 395 x 75 | 10 | 1000 | 1200:1 | <120W | DVI / HDMI-IN / HDMI / DP-1 / DP-2 / USB / VGA | HDMI-OUT / DP-OUT | DC 24V | 100 x 100 mm |
| CK132 | 32 | 765 x 460 x 75 | 15 | 1000 | 1300:1 | <150W | DVI / HDMI-IN / DP-1 / DP-2 / USB / VGA / SDI-IN | DP-OUT / SDI-OUT | DC 24V | 200 x 100 mm |
| CK143 | 43 | 1030 x 620 x 80 | 25 | 1000 | 1100:1 | <300W | DVI / HDMI-IN / DP-1 / DP-2 / USB / VGA / SDI-IN | DP-OUT / SDI-OUT | AC 220V | 300 x 200 mm |
| CK155 | 55 | 1285 x 775 x 85 | 35 | 1000 | 1100:1 | <300W | DVI / HDMI-IN / DP-1 / DP-2 / USB / VGA / SDI-IN | DP-OUT / SDI-OUT | AC 220V | 300 x 200 mm |
Shared Display Specifications
| Surgical detail | 3840 x 2160 (4K UHD) |
|---|---|
| Viewing angle | 178 degrees |
| Color depth | 1.07 billion colors / true 14-bit |
| Response time | 8 ms |
| Calibration curves | Gamma 1.8 / 2.0 / 2.2 / 2.4 / sRGB / DICOM |
| Color space | Native / sRGB / Auto / BT.709 / BT.2020 |
| Multi-window mode | Picture-in-picture / dual-picture; quad-picture on selected 43-55 inch models |
| Control / service | RS-232 on CK1 and selected CK0 large-format configurations |
| Certifications | CCC (GB 4943.1, GB 9254, GB 17625.1); RoHS compliant; IEC 60601-1-2; Class A |
Optional Interface Configurations
Selected 4K models support alternative input and output combinations. Confirm the exact suffix and required interface set before quotation.
| Model | Input | Output | Control / service |
|---|---|---|---|
| CK124A | DVI / HDMI / DP-1 / DP-2 / VGA | DP MST | RS-232 |
| CK124B | DVI / HDMI-1 / HDMI-2 / DP-1 / DP-2 / VGA | HDMI | RS-232 |
| CK127A | DVI / HDMI 2.0 / DP 1.2-1 / DP 1.2-2 / VGA / 12G-SDI | DP MST / 12G-SDI | RS-232 |
| CK127B | DVI / HDMI 2.0-1 / HDMI 2.0-2 / DP 1.2-1 / DP 1.2-2 / VGA | DP MST / HDMI | RS-232 |
| CK132A | DVI / HDMI 2.0 / DP 1.2-1 / DP 1.2-2 / VGA / 12G-SDI | DP MST / 12G-SDI | RS-232 |
| CK132B | DVI / HDMI 2.0 / DP 1.2-1 / DP 1.2-2 / VGA | DP MST | RS-232 |
| CK132C | DVI / HDMI 2.0 / DP 1.2-1 / DP 1.2-2 / VGA / 3G-SDI x 4 | DP MST | RS-232 |
| CK132D | DVI / HDMI 2.0 / DP 1.2-1 / DP 1.2-2 | DP MST | RS-232 |
| CK132E | DVI / HDMI 2.0 / DP 1.2-1 / DP 1.2-2 / 12G-SDI | DP MST / 12G-SDI | RS-232 |
| CK132F | DVI / HDMI 2.0 / DP 1.2-1 / DP 1.2-2 / 3G-SDI | DP MST / 3G-SDI | RS-232 |
| CK132G | DVI / HDMI 2.0-1 / HDMI 2.0-2 / DP 1.2-1 / DP 1.2-2 | DP MST / HDMI | RS-232 |
| CD132A (3D) | DVI / HDMI 2.0 / DP 1.2-1 / DP 1.2-2 / VGA | DP MST | RS-232 |
| CD132B (3D) | 2D: HDMI-1 / DP-1 / DP-2; 3D: HDMI-2 / SDI-L / SDI-R / VGA | 12G-SDI | RS-232 |
| CD132C (3D) | DVI / HDMI 2.0 / DP 1.2-1 / DP 1.2-2 / VGA / 12G-SDI | DP MST / 12G-SDI | RS-232 |
| CK143A | DVI / HDMI 2.0 / DP 1.2-1 / DP 1.2-2 | DP MST / SDI | RS-232 |
| CK143B | DVI / HDMI 2.0 / DP 1.2-1 / DP 1.2-2 / 12G-SDI | DP MST / 12G-SDI | RS-232 |
| CK155A | DVI / HDMI 2.0 / DP 1.2-1 / DP 1.2-2 | DP MST / SDI | RS-232 |
| CK155B | DVI / HDMI 2.0 / DP 1.2-1 / DP 1.2-2 / 12G-SDI | DP MST / 12G-SDI | RS-232 |
Ordering Notes
Please confirm the series, model code, screen size, enclosure finish, input/output interfaces, mounting pattern and local power requirement. Final availability and certifications may vary by market and order configuration.
Inquiry Support
Use the inquiry module at the bottom of this page to request a quotation. Include the model code, intended endoscope system, required ports and installation method.
