    Description

    Endoscope Camera / Surgical Monitor – CF0

    Clear FHD surgical visualization for compact and large-screen setups.

    The CF0 Series combines 1920 x 1080 resolution, a 178-degree viewing angle, 16.7 million colors, a 14 ms response time and true 10-bit display depth for dependable endoscopic visualization.

    Its white medical enclosure provides a stable structure, protected edges and straightforward installation for daily clinical use.

    1920 x 1080
    19-32"
    600-1000 cd/m2
    178 degrees
    Camjoy CF0 Main product view

    Core Display Features

    Surgical detail

    1920 x 1080 Full HD resolution for clear procedural viewing.

    Medical color modes

    Gamma 1.8/2.0/2.2/2.4, sRGB, DICOM and user calibration modes.

    Clinical enclosure

    Its white medical enclosure provides a stable structure, protected edges and straightforward installation for daily clinical use.

    Flexible connectivity

    Model-dependent RGB, DVI, S-Video, 3G-SDI and HDMI interfaces.

    Actual Product Views

    Review the monitor body, bezel finish, stand and available screen sizes before selecting a configuration.

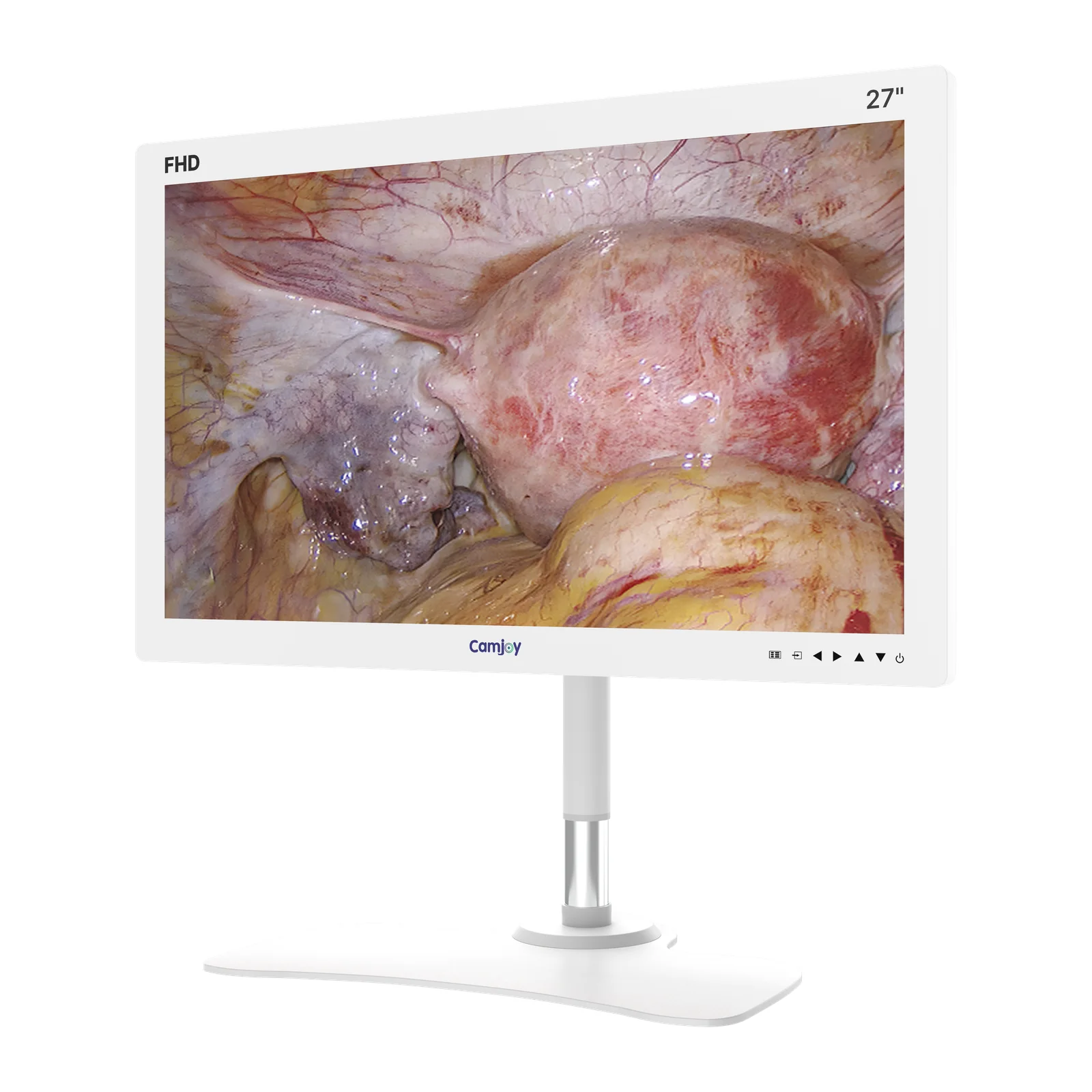

    Camjoy CF0 Main product view
    Main product view
    Camjoy CF0 19" - Perspective view
    19" – Perspective view
    Camjoy CF0 22" - Perspective view
    22" – Perspective view
    Camjoy CF0 24" - Side view
    24" – Side view
    Camjoy CF0 32" - Perspective view
    32" – Perspective view
    Camjoy CF0 Size family
    Size family

    Model and Physical Configuration

    Choose the required screen size and confirm the dimensions, weight, brightness, video interfaces and mounting pattern.

    Model Screen size Dimensions (mm) Net weight (kg) Brightness (cd/m2) Contrast ratio Power consumption Input Output Input power Mounting
    CF019 19 425 x 355 x 75 3.8 600 1000:1 <100W RGB (YPbPr) / DVI / S-Video / 3G-SDI 3G-SDI DC 24V 100 x 100 mm
    CF022 22 530 x 335 x 75 4.3 600 1000:1 <100W RGB (YPbPr) / DVI / S-Video / 3G-SDI 3G-SDI DC 24V 100 x 100 mm
    CF024 24 575 x 380 x 75 5.2 600 1000:1 <100W RGB (YPbPr) / DVI / S-Video / 3G-SDI 3G-SDI DC 24V 100 x 100 mm
    CF027 27 660 x 400 x 75 6 1000 1000:1 <120W RGB (YPbPr) / DVI / S-Video / 3G-SDI / HDMI 3G-SDI / HDMI DC 24V 100 x 100 mm
    CF032 32 765 x 460 x 75 8 1000 1000:1 <120W RGB (YPbPr) / DVI / S-Video / 3G-SDI / HDMI 3G-SDI / HDMI DC 24V 100 x 100 mm

    Shared Display Specifications

    Surgical detail 1920 x 1080 (FHD); CF019 / CF119: 16:10 aspect ratio
    Viewing angle 178 degrees
    Color depth 16.7 million colors / true 10-bit / 85% NTSC
    Response time 14 ms
    Calibration curves Gamma 1.8 / 2.0 / 2.2 / 2.4 / sRGB / DICOM / User 1 / User 2 / Native
    Color space Native / sRGB / Auto
    Multi-window mode Not specified
    Certifications CCC (GB 4943.1, GB 9254, GB 17625.1); RoHS compliant; IEC 60601-1-2; Class A

    Ordering Notes

    Please confirm the series, model code, screen size, enclosure finish, input/output interfaces, mounting pattern and local power requirement. Final availability and certifications may vary by market and order configuration.

    Inquiry Support

    Use the inquiry module at the bottom of this page to request a quotation. Include the model code, intended endoscope system, required ports and installation method.
