Camjoy Electronic Endoscope / UD101
Camjoy UD101 Disposable Digital Flexible Ureteroscope
Single-use digital flexible ureteroscope for HD ureteroscopy workflows.
UD101 is a disposable digital flexible ureteroscope family with USB-connected HD display support, one-click photo or video capture, ergonomic handling and multiple working-channel options for diagnostic and therapeutic needs.
Product Highlights

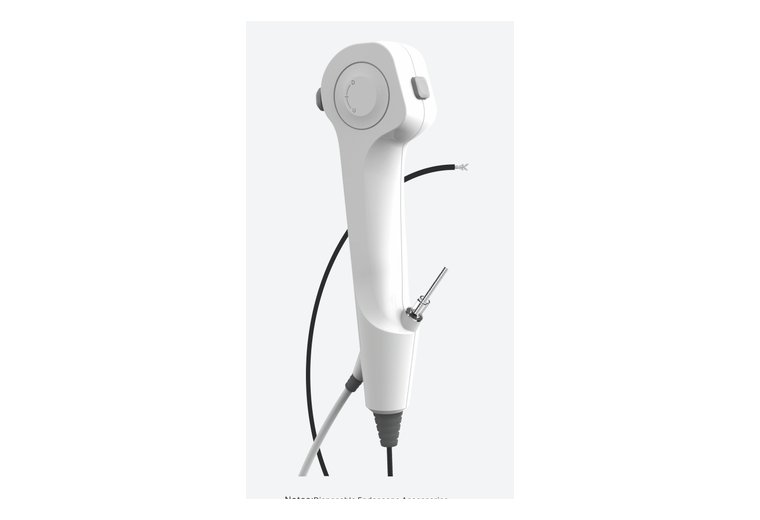

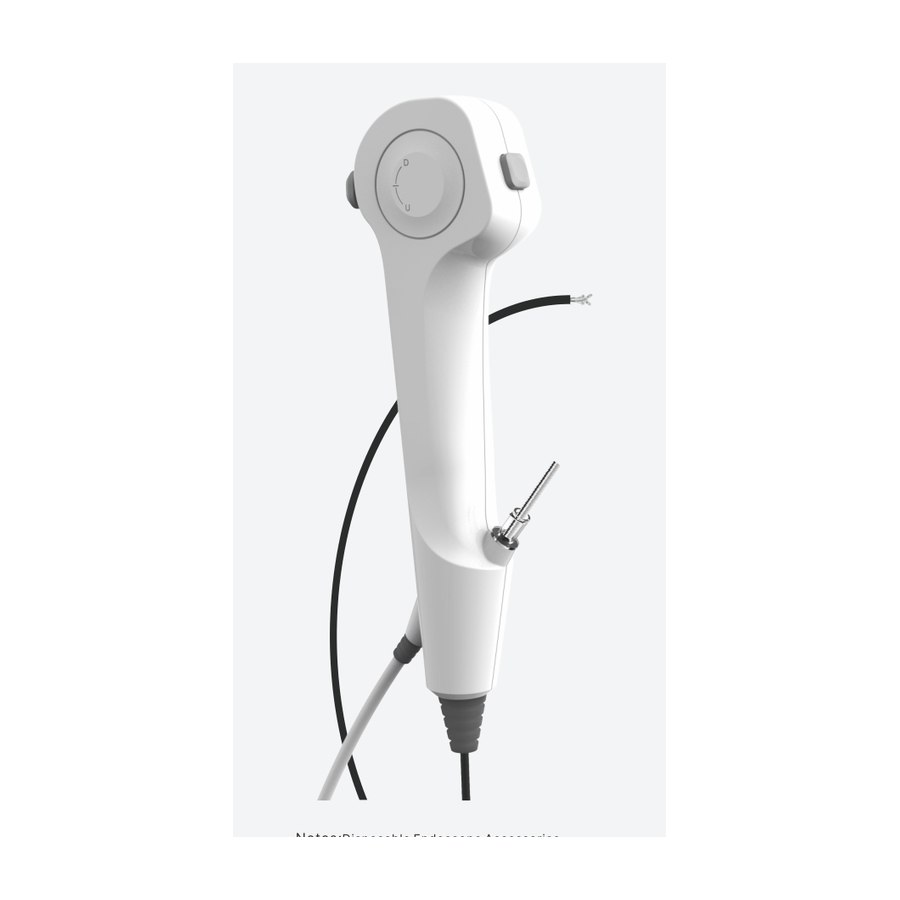

Actual Product Views
Review the product body, display connection and configuration details to match the model with the intended clinical workflow.
Physical Configuration Table
Built for flexible ureteroscope access, stone management support and urology diagnostic workflows.
| Product code | UD101 |
|---|---|
| Clinical workflow | Urology / ureteroscopy |
| Model options | Series models: UD2008, UD2212, UD2512, UD2812 |
| Outer diameter / blade options | 2.0 mm, 2.2 mm, 2.5 mm, 2.8 mm |
| Working channel | 0.8 mm or 1.2 mm |
| Bending / deflection | Up 300 deg / down 300 deg, or up 275 deg / down 275 deg |
| Working length | 650 mm |
| Total length | 860 mm |
| Image resolution | 400×400 |
| Field of view | 120 deg |
| Depth of field | 5-50 mm |
| Configuration note | Built for flexible ureteroscope access, stone management support and urology diagnostic workflows. |
Technical Specifications
| Series models | UD2008, UD2212, UD2512, UD2812 |
|---|---|
| Tube OD | 2.0 mm, 2.2 mm, 2.5 mm, 2.8 mm |
| Channel ID | 0.8 mm or 1.2 mm |
| Deflection angle | Up 300 deg / down 300 deg, or up 275 deg / down 275 deg |
| Resolution | 400×400 |
| Working length | 650 mm |
| Total length | 860 mm |
| Field of view | 120 deg |
| Depth of field | 5-50 mm |
Ordering Notes
- Model code and procedure type
- Insertion size or blade size
- Working-channel diameter
- Display or processor compatibility
- Single-use sterile workflow
- Local registration and package requirements
Inquiry Support
Use the product inquiry module at the bottom of this page to send quotation requirements. Share the model code, procedure type and display or processor requirements so Camjoy can confirm the correct configuration.
