Camjoy Electronic Endoscope / BD101
Camjoy BD101 Disposable Digital Flexible Bronchoscope
Disposable digital flexible bronchoscope for airway visualization.
BD101 is a disposable flexible bronchoscope family with multiple tube OD and working-channel options, HD imaging support and ergonomic one-handed operation.
WorkflowAirway / bronchoscopy
Image system400×400 or 1280×720
Model familyBD101
Product Highlights
HD imagingHD imaging with compatible main units
One-click photoOne-click photo and video capture
Ergonomic lightweight handleErgonomic lightweight handle
180 deg up/down deflection180 deg up/down deflection with 650 mm working length

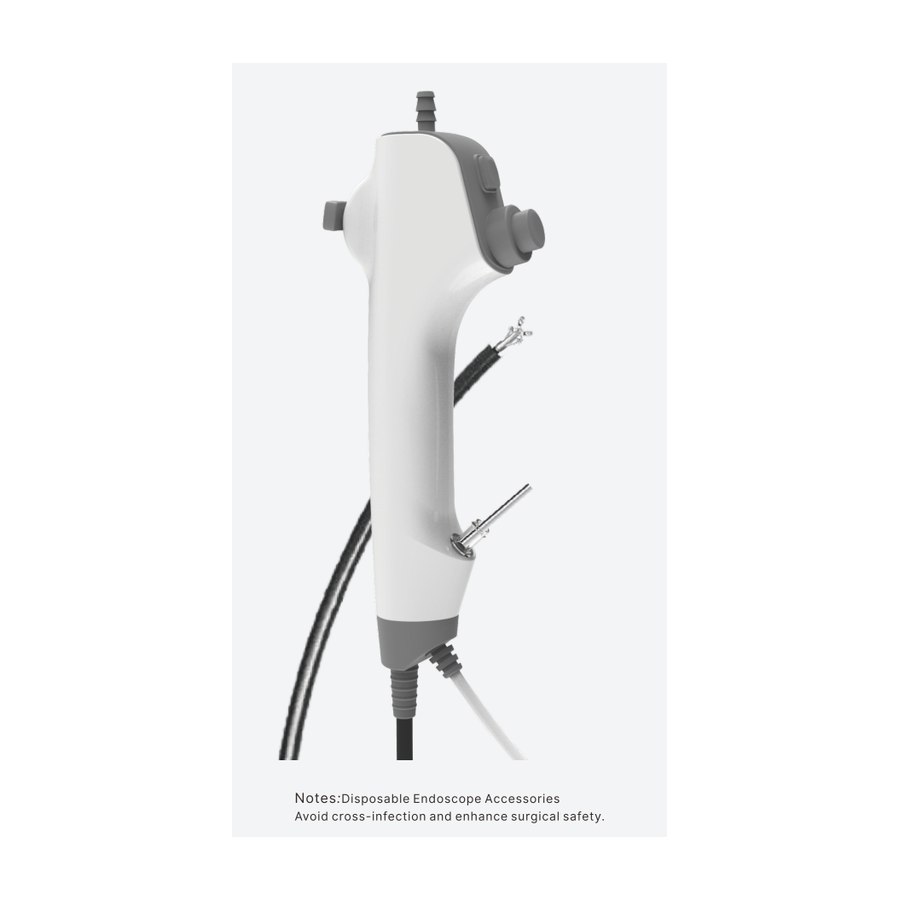

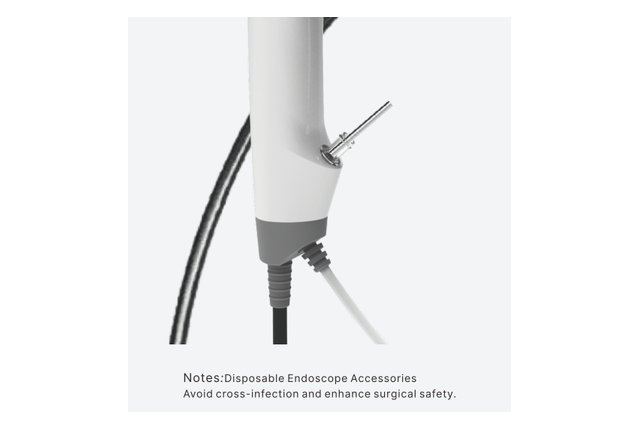

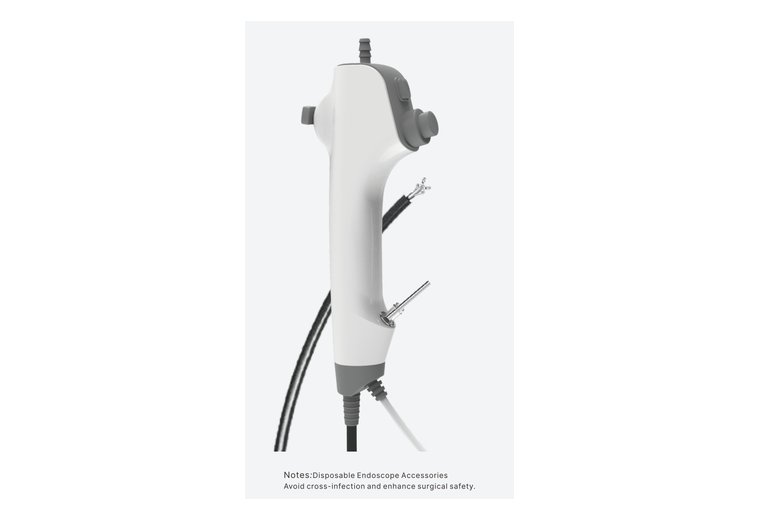

Actual Product Views
Review the product body, display connection and configuration details to match the model with the intended clinical workflow.
Physical Configuration Table
Prepared for airway visualization with flexible access and multiple channel-diameter choices.
| Product code | BD101 |
|---|---|
| Clinical workflow | Airway / bronchoscopy |
| Model options | 160K pixel models: BD2812, BD3816, BD4222, BD4826, BD5832; 1.0 MP models: BD3800, BD4816, BD5826 |
| Outer diameter / blade options | 2.8-5.8 mm |
| Working channel | 0.0-3.2 mm |
| Working length | 650 mm / 860 mm |
| Total length | 650 mm / 860 mm |
| Image resolution | 400×400 or 1280×720 |
| Field of view | 120 deg or 140 deg |
| Depth of field | 5-50 mm or 3-100 mm |
| Configuration note | Prepared for airway visualization with flexible access and multiple channel-diameter choices. |
Technical Specifications
| 160K pixel models | BD2812, BD3816, BD4222, BD4826, BD5832 |
|---|---|
| 1.0 MP models | BD3800, BD4816, BD5826 |
| Tube OD | 2.8-5.8 mm |
| Channel ID | 0.0-3.2 mm |
| Resolution | 400×400 or 1280×720 |
| Field of view | 120 deg or 140 deg |
| Depth of field | 5-50 mm or 3-100 mm |
| Working / total length | 650 mm / 860 mm |
Ordering Notes
Before quotation, confirm the intended procedure, model code, insertion or blade size, channel diameter, compatible display or processor, accessory list and local registration needs.
- Model code and procedure type
- Insertion size or blade size
- Working-channel diameter
- Display or processor compatibility
- Single-use sterile workflow
- Local registration and package requirements
Inquiry Support
Use the product inquiry module at the bottom of this page to send quotation requirements. Share the model code, procedure type and display or processor requirements so Camjoy can confirm the correct configuration.
