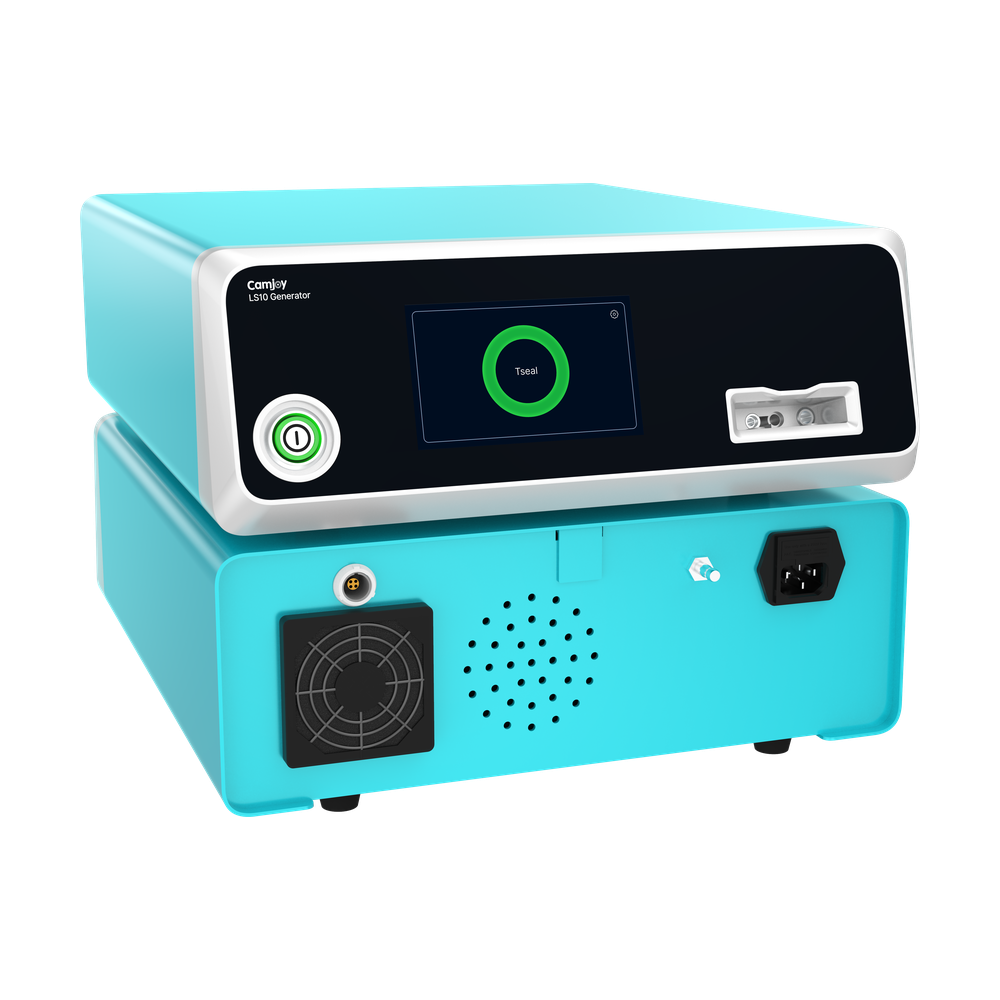

Camjoy LS101 Single-Channel Vessel Sealing Generator
Controlled bipolar sealing platform for vessel sealing and tissue division.
LS101 is designed for controlled vessel sealing in open and laparoscopic workflows. The generator combines mechanical jaw compression, controlled bipolar energy output and real-time tissue response feedback to help support consistent sealing performance.
Core Advantages
The LS101 page has been rebuilt from the supplied PDF material, matching the generator specifications, status display and optional instrument portfolio.
Controlled Vessel Sealing Workflow

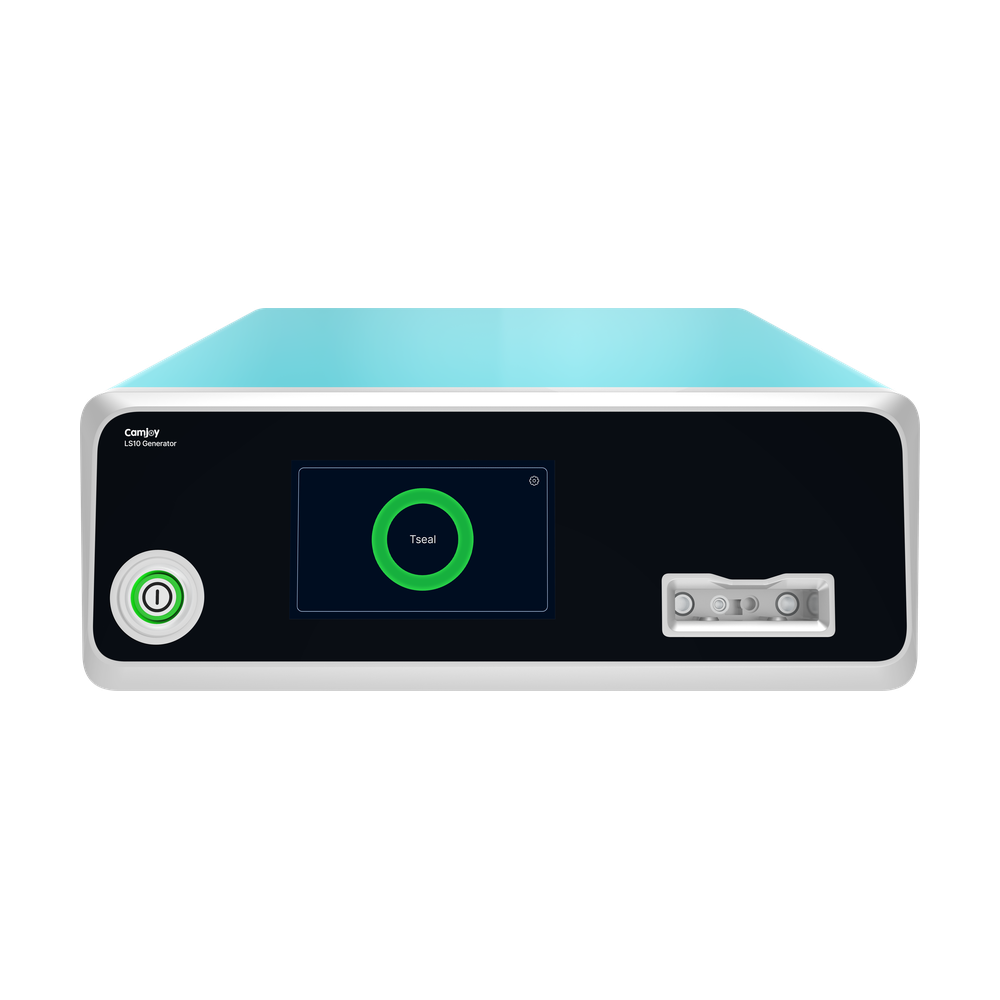

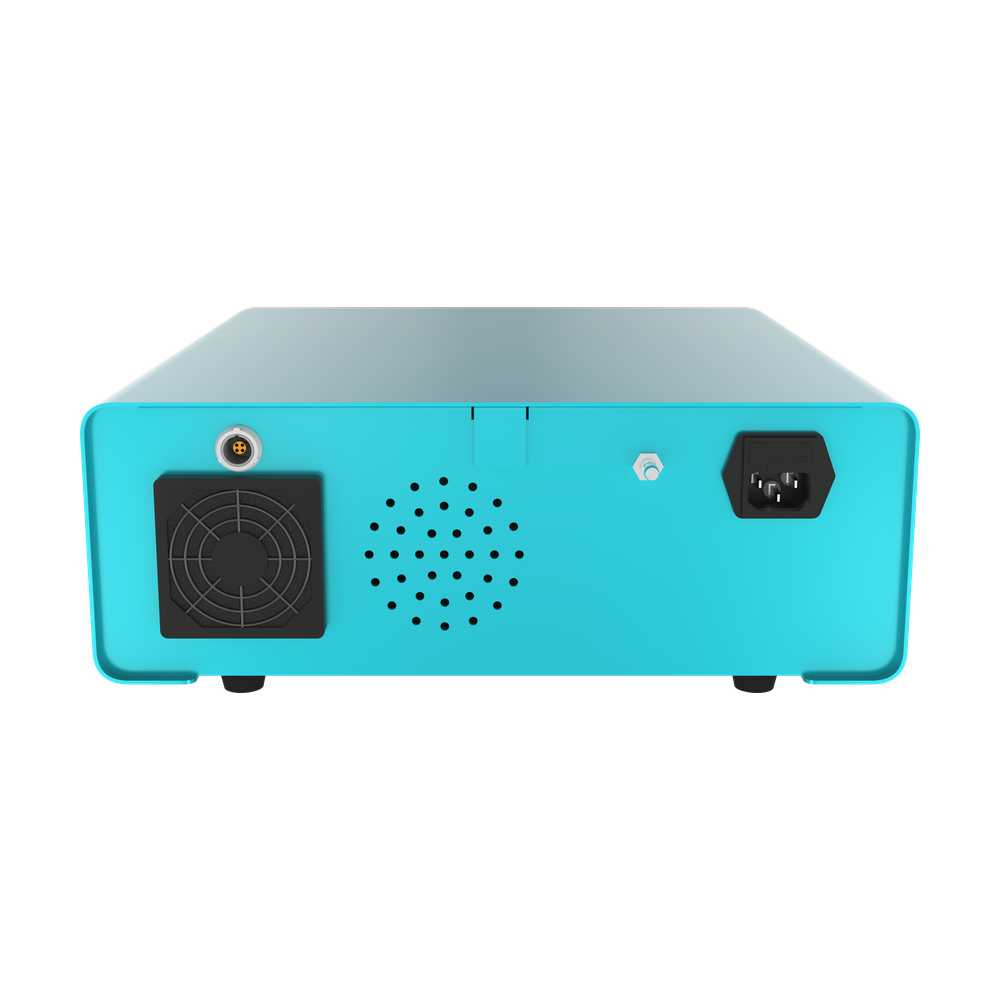

Interface Overview and Status Indicators
- Power Button ON / OFF
- Instrument Connection Port
- Footswitch Port
- Ventilation Outlet
- Grounding Terminal
- AC Power Inlet
Touchscreen Status Display
Green – T-Seal Ready
Flashing Green – Sealing in Progress
Purple – SP-Seal
Yellow – InformationProduct Specifications
Core generator specifications from the PDF product sheet.
| Model | LS101 |
|---|---|
| Peak Voltage | 500 V |
| Rated Load | 30 Ω |
| Input Power | 220-240 V |
| Maximum Power | 270 V |
| Dimensions | 300 x 105 x 377 mm |
| Weight | 5.5 kg |
Compatible Sealing Instruments
The LS101 generator can be paired with designated instruments for isolating tissue, coagulated tissue handling, scraping tissue and vessel sealing tasks. Final instrument selection should be confirmed by order configuration.

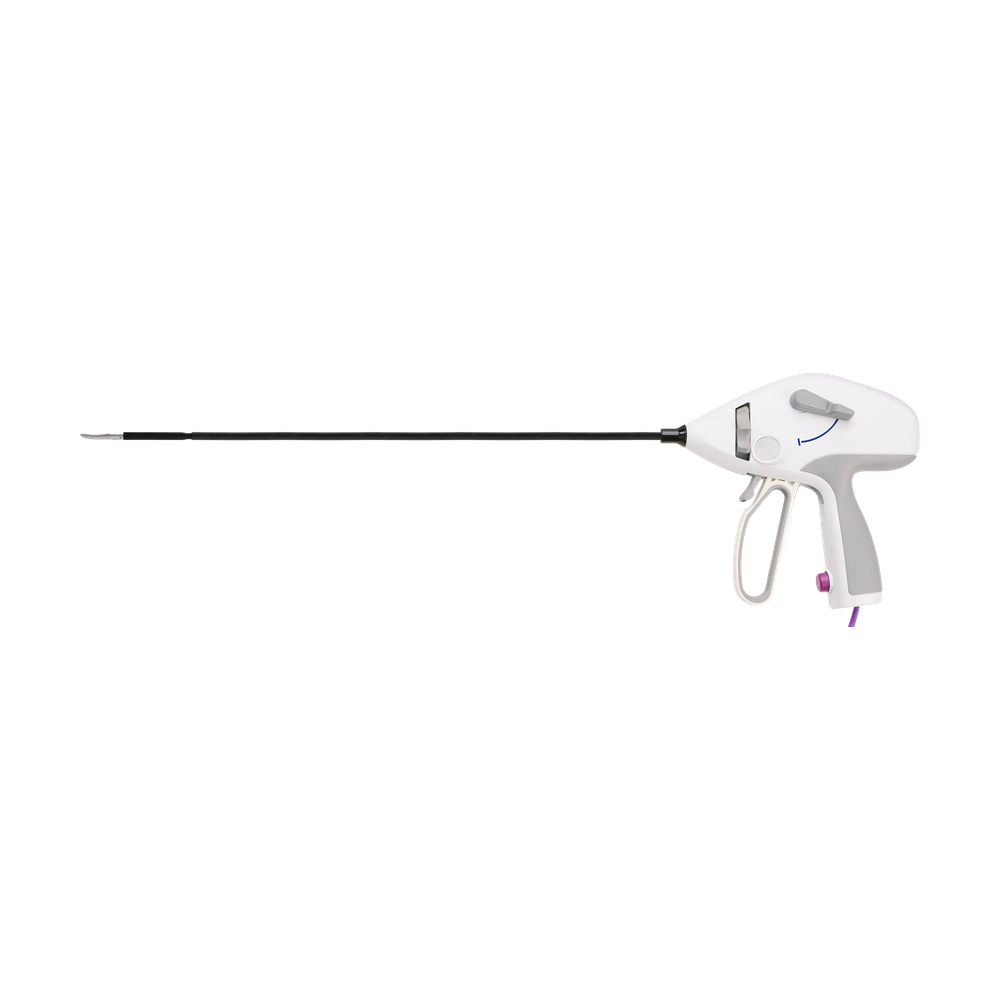

CY1923 / CY1937 / CY1944 laparoscopic sealing instruments
| Product Codes | CY1923A/B, CY1937A/B, CY1944A/B |
|---|---|
| Shaft Length | 23 cm / 9.06 in; 37 cm / 14.57 in; 44 cm / 17.32 in |
| Seal Plate Length | 20.55 mm |
| Cut Length | 18.65 mm |
| Shaft Diameter | 5 mm |
| Typical Use | Isolate tissue, coagulated tissue, scrape tissue, vessel sealing |

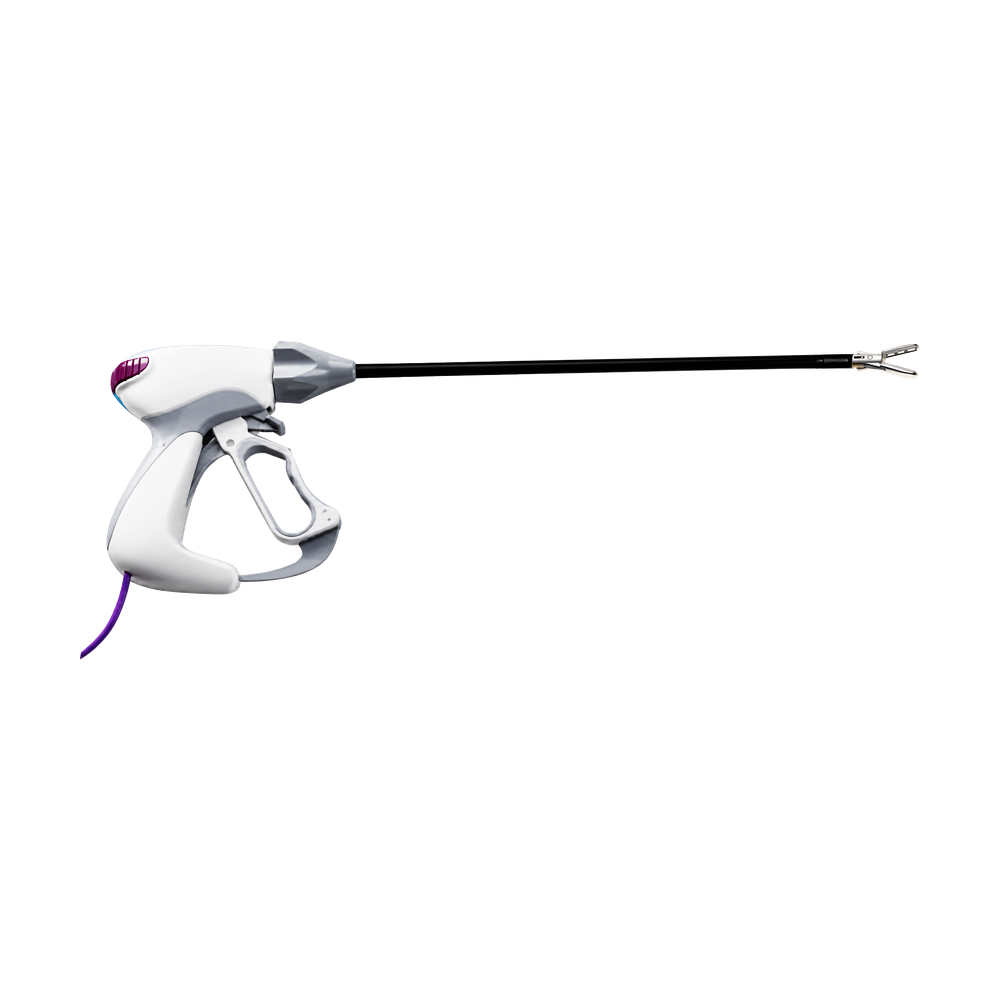

CY2020 / CY2037 blunt tip vessel sealer and divider
| Product Codes | CY2020, CY2037 |
|---|---|
| Shaft Length | 20 cm / 7.87 in; 37 cm / 14.57 in |
| Seal Plate Length | 22.00 mm |
| Cut Length | 20.00 mm |
| Shaft Diameter | 10 mm |
| Typical Use | Blunt tip vessel sealer and divider, low temperature profile, vessel/rectum sealing |
CY1823 / CY1837 / CY1844 A and B type instruments
| Product Codes | CY1823A/B, CY1837A/B, CY1844A/B |
|---|---|
| Shaft Length | 23 cm / 9.06 in; 37 cm / 14.57 in; 44 cm / 17.32 in |
| Seal Plate Length | 19.50 mm |
| Cut Length | 17.80 mm |
| Shaft Diameter | 5 mm |
| Typical Use | Isolate tissue, coagulated tissue, scrape tissue, vessel sealing |

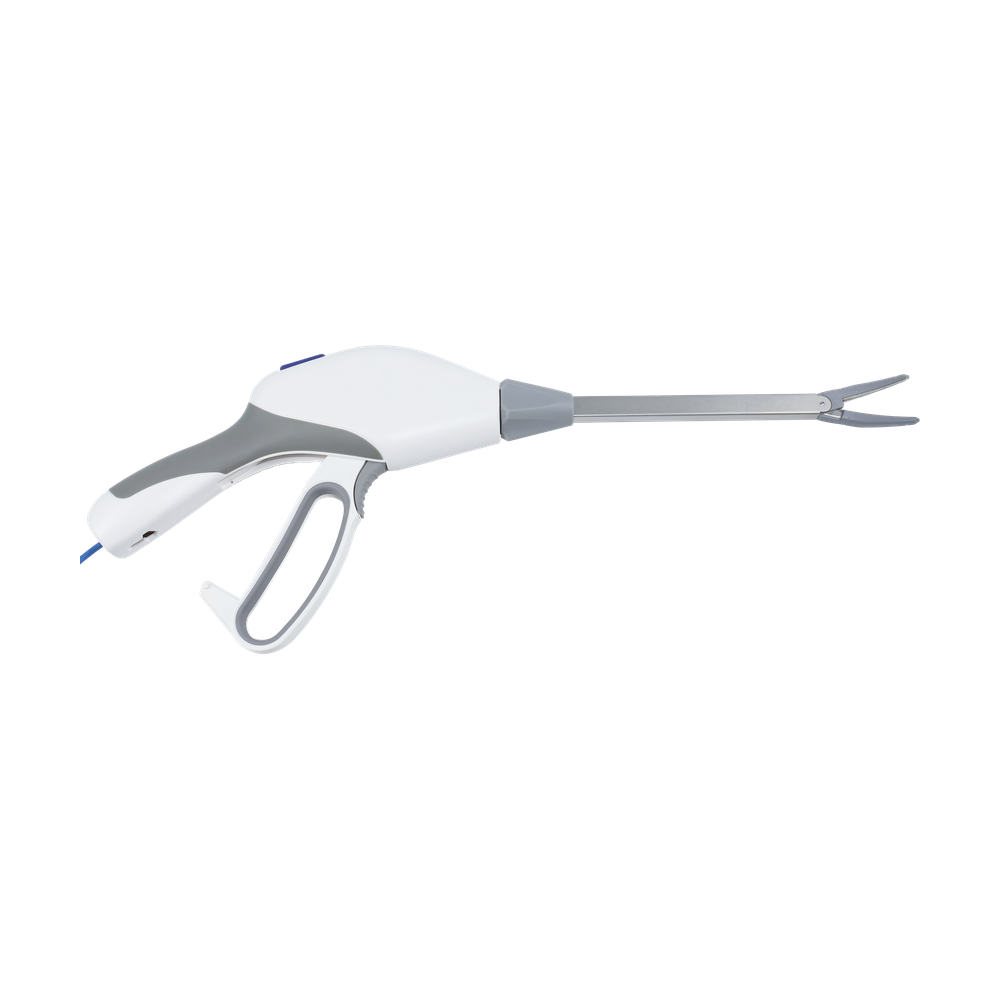

CY3418 blunt tip vessel sealer and divider
| Product Codes | CY3418 |
|---|---|
| Shaft Length | 18 cm / 7.1 in |
| Seal Plate Length | 36.00 mm |
| Cut Length | 34.00 mm |
| Shaft Diameter | 13.5 mm |
| Typical Use | Grasp, seal and cut tissue independently; vessel/rectum sealing |

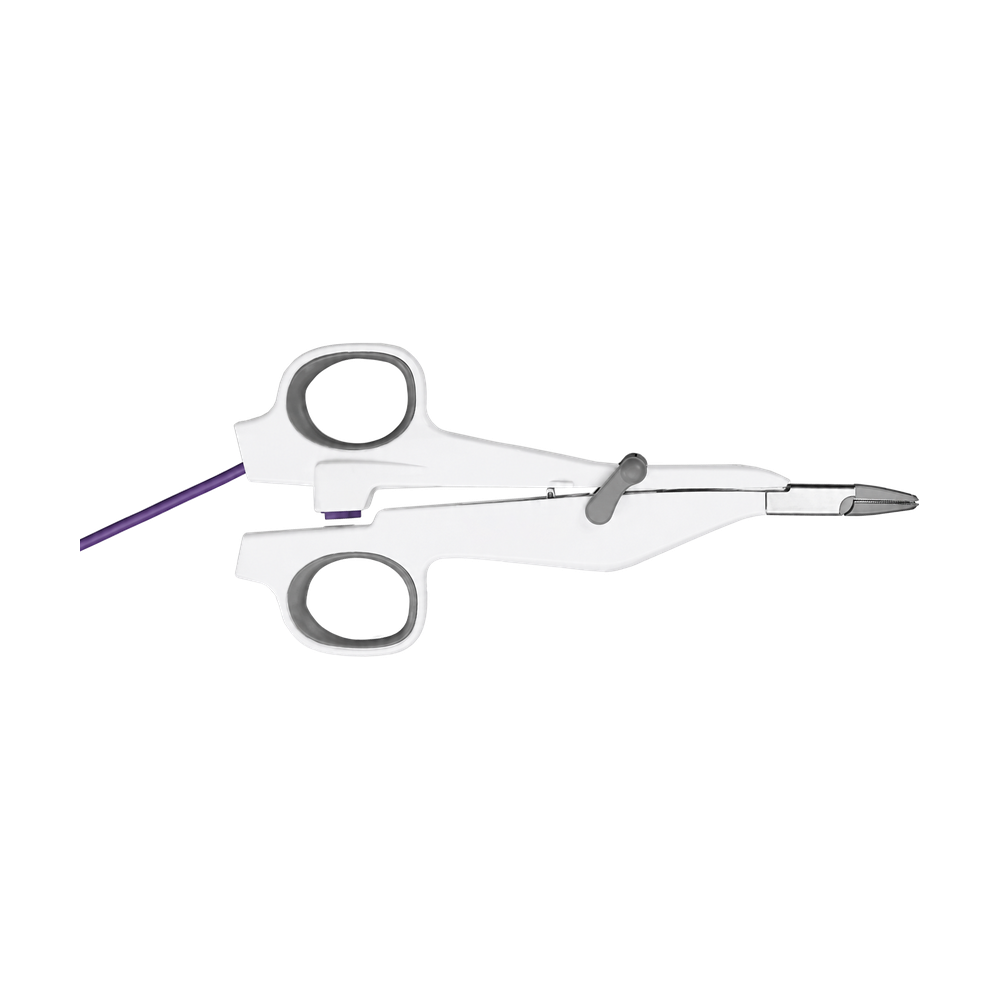

CY1519 vessel sealing scissors
| Product Codes | CY1519 |
|---|---|
| Shaft Length | 19 cm / 7.4 in |
| Seal Plate Length | 16.50 mm |
| Cut Length | 14.70 mm |
| Jaw Design | 28° |
| Typical Use | Scrape tissue, coagulated tissue, blunt tip vessel sealer and divider |
Touchscreen and Settings Screens
Interface screens show sealing progress, T-Seal ready, SP-Seal, information, settings, calibration, language and brightness or volume controls.
LS101 touchscreen settings menu
LS101 touchscreen calibration mode
LS101 touchscreen language settings
LS101 touchscreen brightness and volume settingsOptional Instrument Configuration
| Generator | 1pcs |
|---|---|
| Power cable | 1pcs |
| CY1937A Instrument | 1pcs |
| CY2020 Instrument | 1pcs |
| CY1837B Instrument | 1pcs |
| CY3418 Instrument | 1pcs |
| CY1519 Instrument | 1pcs |
| User manual | 1pcs |
Procurement Notes
Before ordering, confirm the generator package, power cable, instrument model, shaft length, jaw design and whether the case requires open surgery or laparoscopic sealing instruments.
