The 4K 3D & ICG Fluorescence Pinnacle
Camjoy CY2402KGD 4K 3D ICG Fluorescence Endoscope Camera System Motherboard Kit
In the elite context of surgical visualization, the CY2402KGD redefines clarity through ICG fluorescence pixel-level fusion. This highly accurate technology seamlessly blends true optical 3D images with glowing fluorescence signals, ensuring tumor boundaries and perfusion are exceptionally clear. Perfectly synchronized with our LED Light Sources, it provides the ultimate imaging foundation for complex oncology procedures.
Advanced ICG & 3D Imaging Core
The CY2402KGD transcends standard imaging by introducing pixel-level fusion, offering immense strategic advantages for brands deploying advanced Rigid Endoscope Instruments in intricate surgical environments.
Dual 4K CMOS Sensors

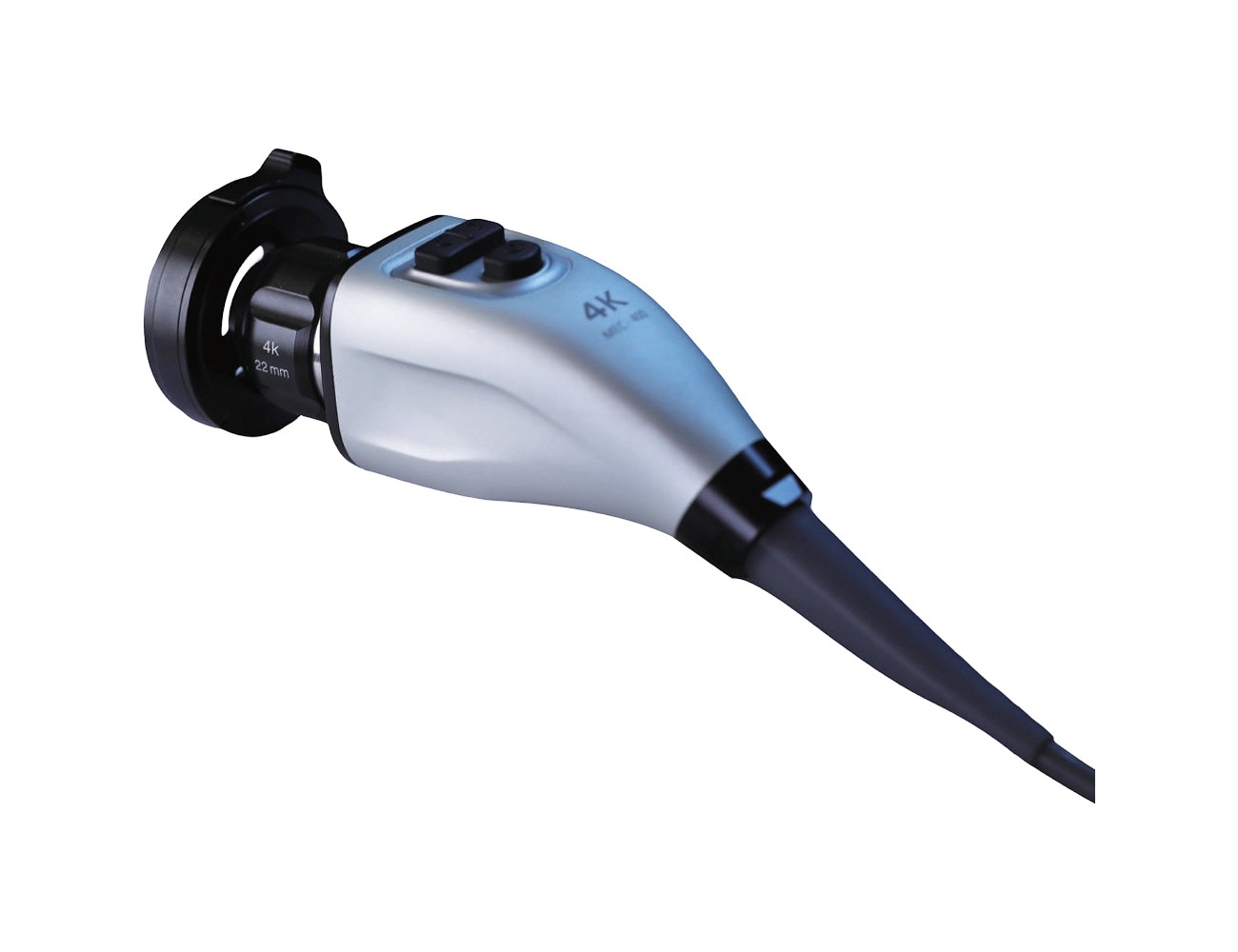

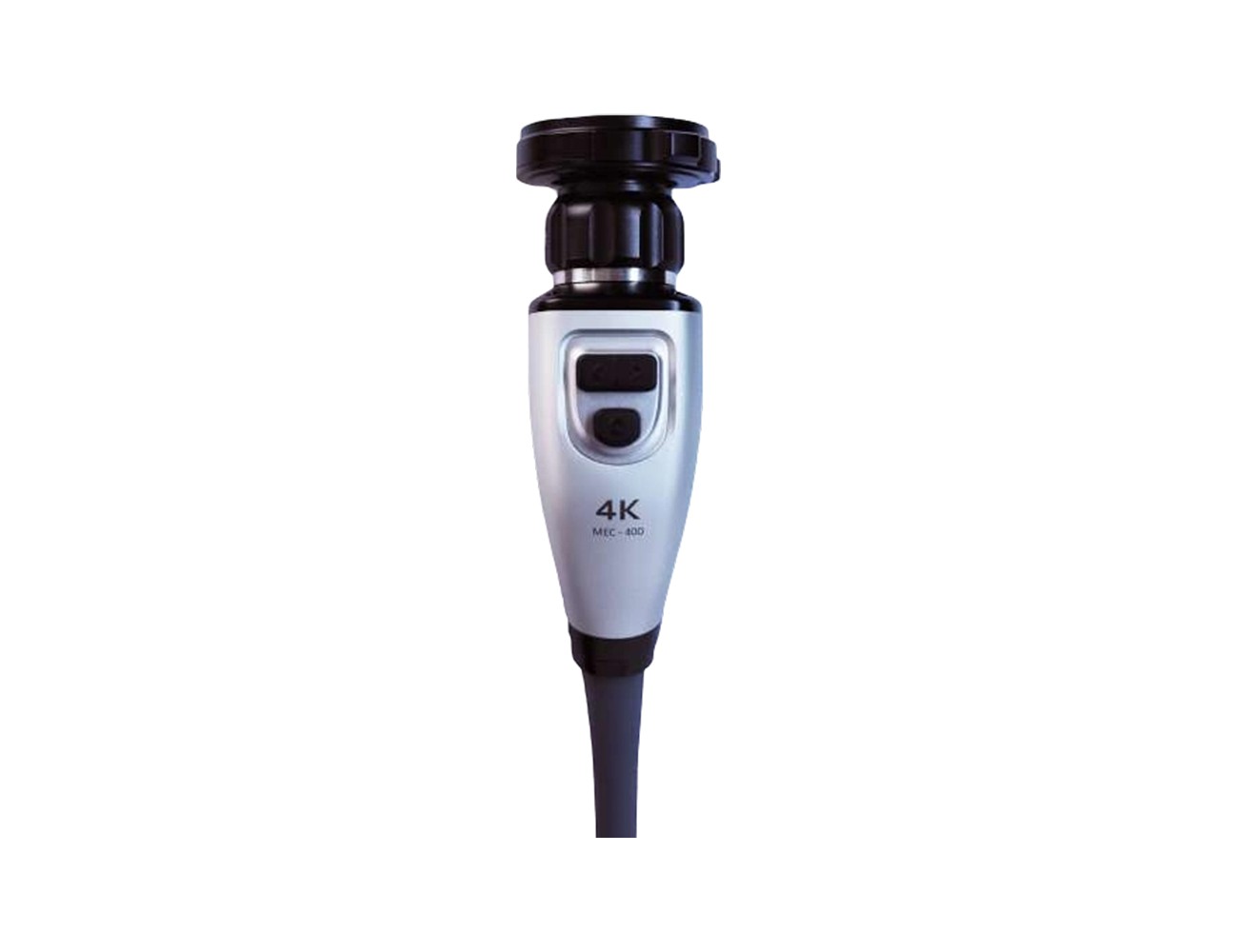

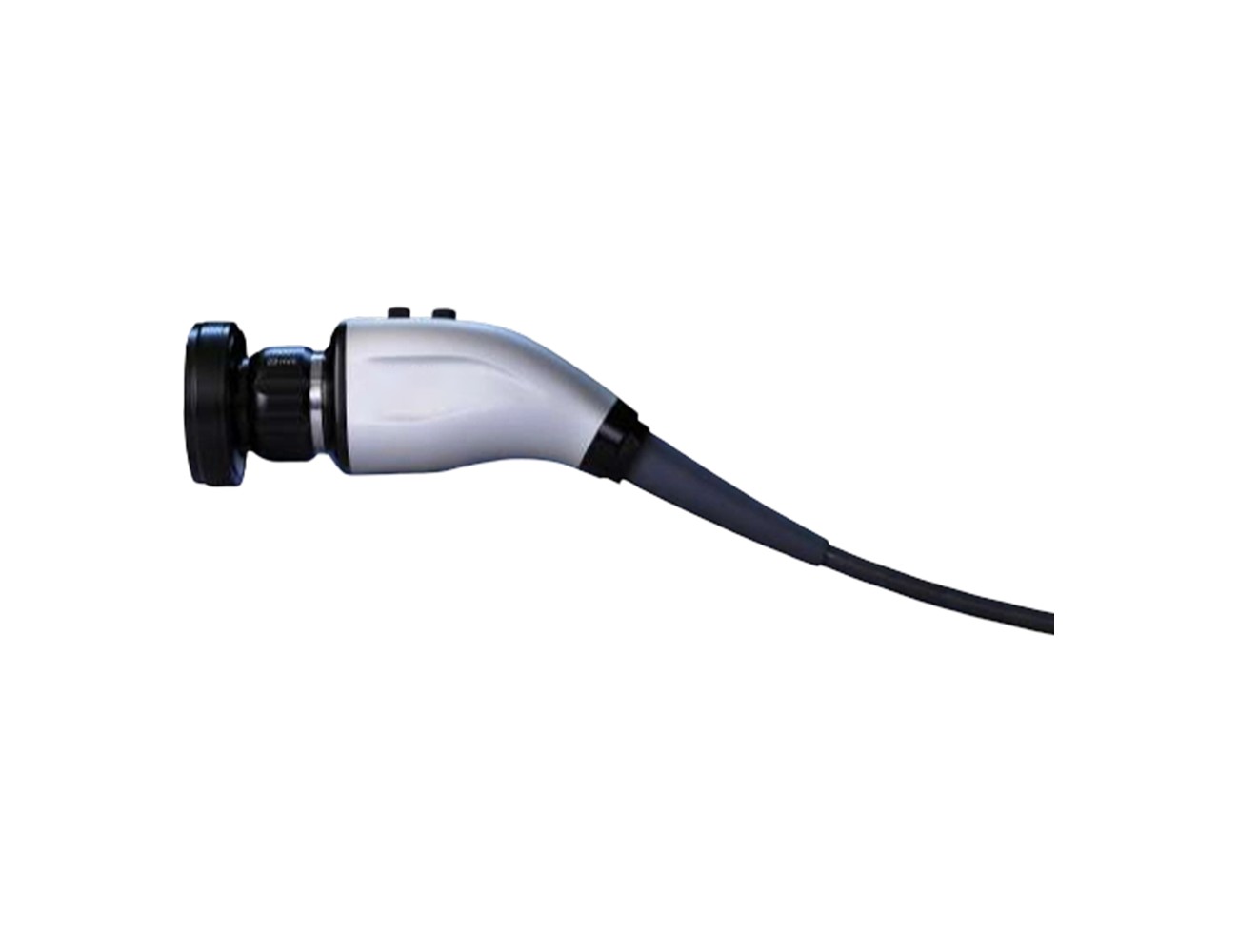

The foundational image is captured by specialized camera handles equipped with dual 1/1.8″ CMOS sensors. These capture a massive dual 4K resolution (2*3840×2160) to provide ultra-high-definition, true optical 3D imaging, making the surgical field extraordinarily realistic.
Pixel-Level ICG Fusion
The system executes a highly accurate blending of the true optical 3D image with the glowing ICG fluorescence signals. This pixel-level accuracy ensures that targeted fluorescent tissues stand out sharply against the standard anatomical background.
Proprietary ISP Algorithms
The precise alignment and fusion of the optical video and fluorescence data are driven by our self-developed advanced Image Signal Processing (ISP) algorithms, ensuring zero latency and zero ghosting during rapid instrument movement.
Core Hardware Specifications
Versatile Surgical Visualization
To maximize clinical utility, the CY2402KGD offers surgeons total control over how structural and fluorescent data is displayed and interpreted during critical procedures.
Multi-Format Display Modes
Surgeons can seamlessly view the surgical field in standard 2D, various 3D formats (including progressive and side-by-side), and a dedicated ICG picture-in-picture (画中画) mode for simultaneous anatomical and fluorescent monitoring.
Customizable Fluorescence
At the hardware processing level, the system supports three distinct fluorescence mapping modes: grayscale maps, intensity distribution maps, and highly visible color overlays (typically blue or green).
Intuitive Clinical Control
Surgeons can effortlessly toggle between standard white light and specific fluorescence modes using a hands-free foot pedal, or they can fine-tune parameters directly on the host console’s 7-inch touch screen.
Software & UI Control
Seamless Workflow Integration
The CY2402KGD is designed to place complex 3D and ICG data exactly where the surgical team needs it, without disrupting operational focus.
📺 Picture-in-Picture (PiP) Architecture
The dedicated PiP mode allows the surgical team to simultaneously monitor standard optical anatomy alongside the isolated fluorescent highlights. This routes perfectly to standard or 3D Medical Monitors.
⚙️ Direct Touch & Toggle
Total control is granted through the host console’s native 7-inch HD touch screen for deep parameter settings (like ICG color maps), while the included foot pedal ensures surgeons never have to break sterility to change viewing formats.
CY2402KGD Technical Specifications
The definitive engineering parameters for seamless ICG/3D hardware integration.
| Hardware Component | Specification & Parameter |
|---|---|
| Image Sensor | Dual 1/1.8″ Imported CMOS (Specialized Handles) |
| Video Resolution | Dual 4K UHD (2 * 3840 x 2160P) |
| Specialized Imaging | True Optical 3D & ICG Fluorescence |
| Fusion Technology | ICG Fluorescence Pixel-Level Fusion |
| Processing Platform | Advanced Self-Developed ISP Algorithms |
| Display Formats Supported | Standard 2D, Progressive 3D, Side-by-Side 3D, ICG PiP |
| Fluorescence Mapping | Grayscale Map, Intensity Map, Color Overlay (Blue/Green) |
| Host UI Interface | 7-inch HD Touch Screen for deep parameter settings |
| Surgical Control | Hands-free Foot Pedal Toggle (White Light vs ICG) |
| Market Positioning | Elite Oncology & Perfusion Visualization |
Engineering & OEM FAQ: CY2402KGD
Q1: What exactly is ICG pixel-level fusion?
A: It is the highly accurate blending of true optical 3D images with Indocyanine Green (ICG) fluorescence signals. This pixel-level accuracy ensures that the boundaries of targeted fluorescent tissues are exceptionally clear against the standard anatomical background, preventing the “glow bleed” found in lower-tier systems.
Q2: What display formats does the host console support?
A: The system is incredibly versatile. Surgeons can output the surgical field in standard 2D, multiple 3D formats (such as progressive and side-by-side), and a highly useful dedicated ICG picture-in-picture (画中画) mode.
Q3: How do surgeons toggle between normal and fluorescence modes?
A: To maintain sterility and operational focus, surgeons can instantly toggle between standard white light and active fluorescence modes using a connected foot pedal. Advanced parameter tuning can be done via the host’s 7-inch touch screen by the circulating nurse.
Q4: What fluorescence mapping options are available?
A: The hardware processing board offers three distinct ways to visualize the ICG data: grayscale maps for pure intensity reading, intensity distribution maps, and color overlays (typically rendered in stark blue or green for rapid tissue boundary identification).
Scale Your Medical Brand
Deploy the CY2402KGD 3D/ICG Infrastructure

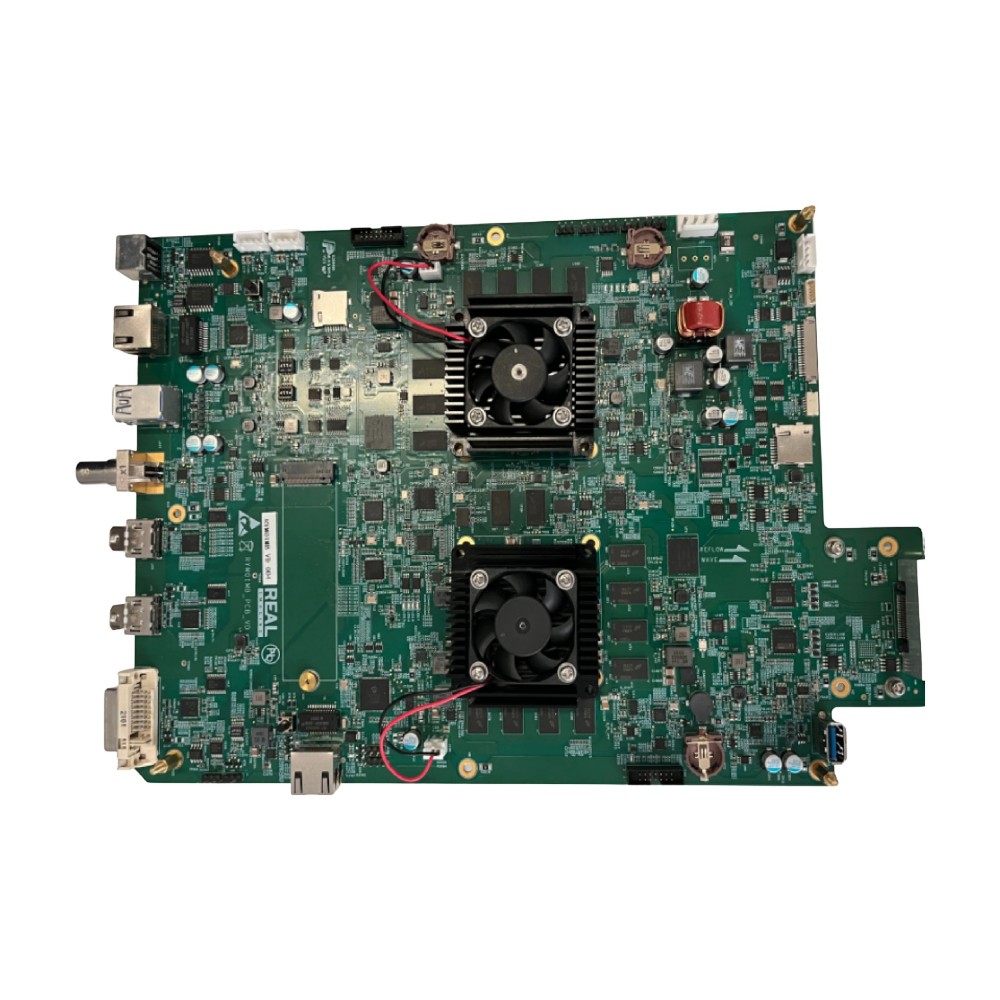

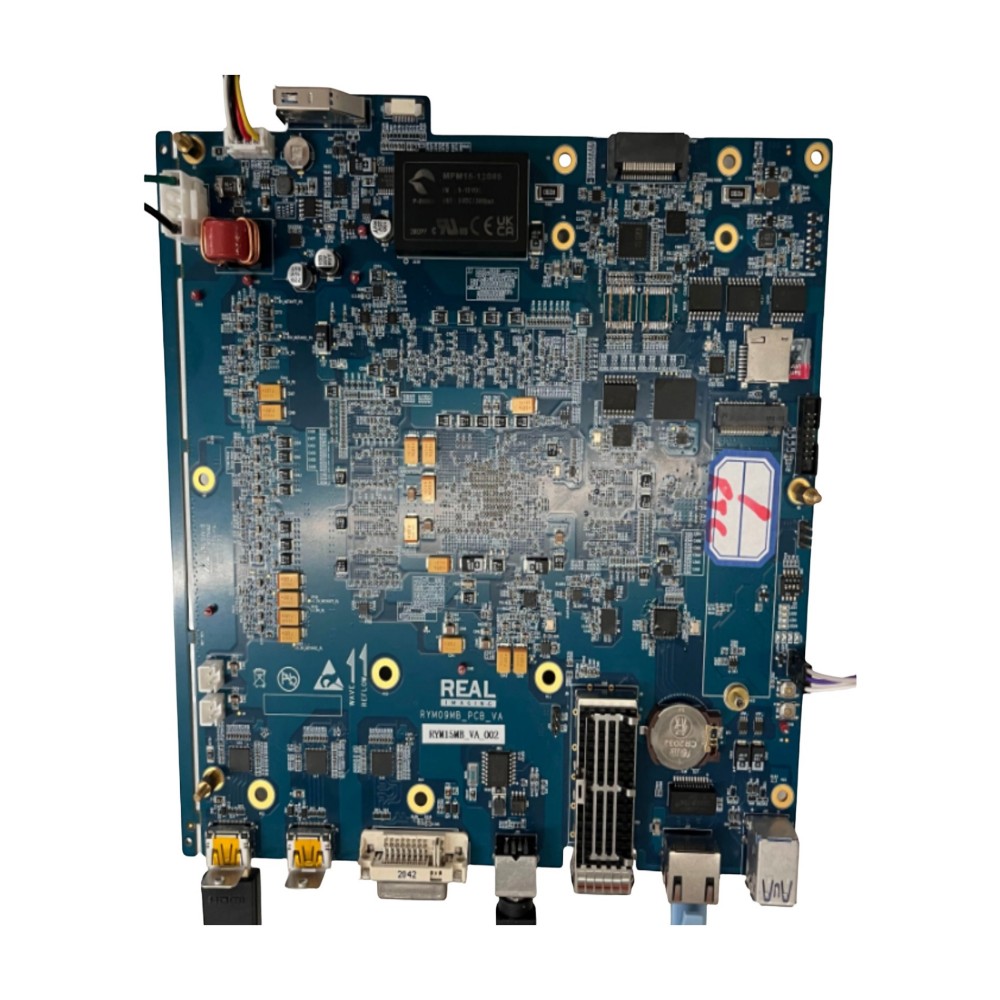

Whether you require completely assembled fluorescence/3D camera units, or bulk shipments of the dual 4K PCB modules for local SKD manufacturing, Camjoy is ready to partner with you.
Request ICG/3D OEM Pricing
Please detail your advanced imaging OEM requirements. Let us know if you require specific optical fusion parameters or pricing tiers for high-volume dual 4K module procurement.
