Camjoy Electronic Endoscope / VM101

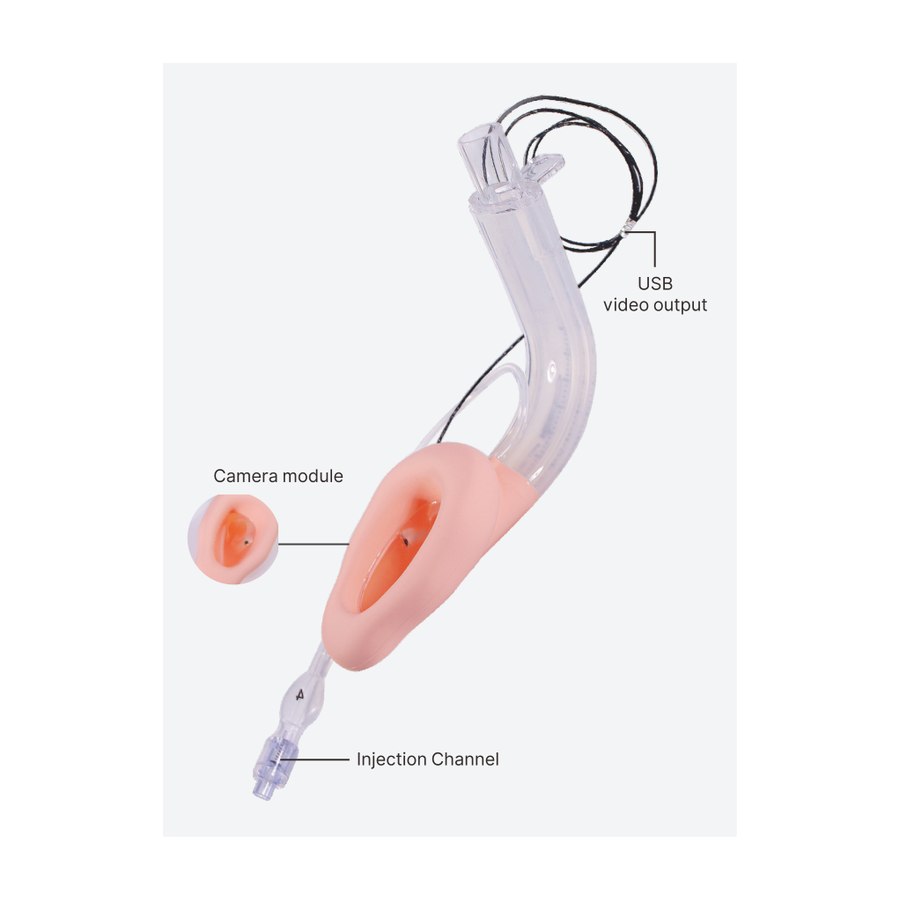

Camjoy VM101 Video Laryngeal Mask
Video laryngeal mask with integrated camera module and Type-C output.
VM101 integrates a camera module into a laryngeal mask platform for visualized airway placement, Type-C video output and multiple size options.
WorkflowAirway visualization accessory
Image systemDigital HD imaging
Model familyVM101
Product Highlights
Avoids cross-infectionAvoids cross-infection with single-use workflow
High-brightness cold LED light sourceHigh-brightness cold LED light source
Multiple sizesMultiple sizes for different patients
Type-C outputType-C output and forward viewing

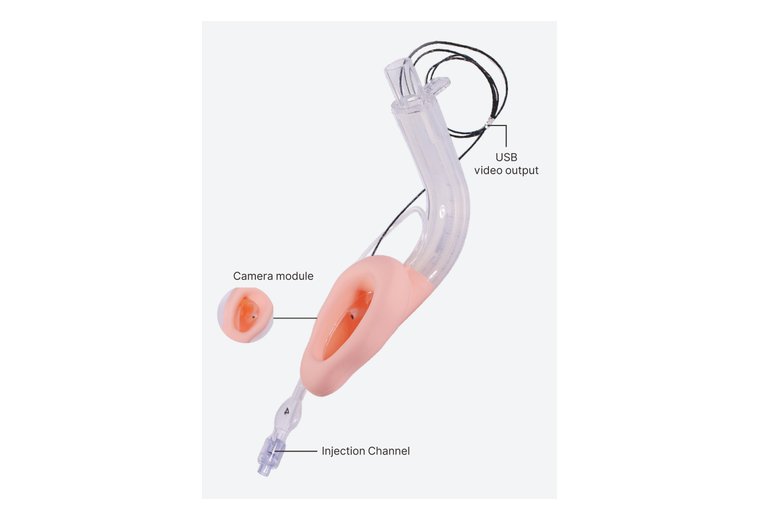

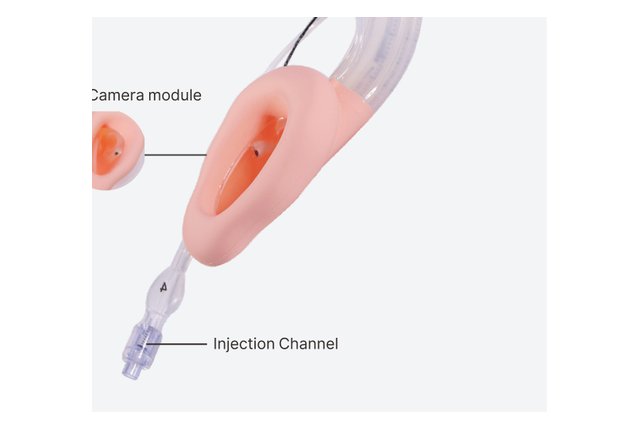

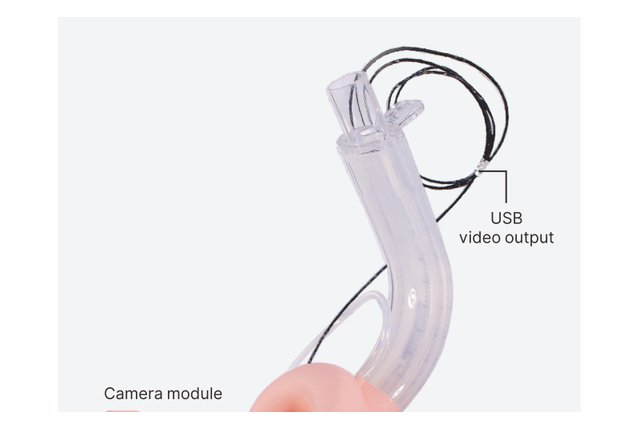

Actual Product Views
Review the product body, display connection and configuration details to match the model with the intended clinical workflow.
Physical Configuration Table
Video-enabled airway accessory for intubation support and visual tube placement workflows.
| Product code | VM101 |
|---|---|
| Clinical workflow | Airway visualization accessory |
| Model options | Models: VM3000, VM4000 |
| Field of view | 100 deg |
| Depth of field | 10-100 mm |
| Direction of view | Forward viewing |
| Light source / output | 6 PCS white LED |
| Configuration note | Video-enabled airway accessory for intubation support and visual tube placement workflows. |
Technical Specifications
| Models | VM3000, VM4000 |
|---|---|
| Size | 3.0 mm, 4.0 mm |
| Pixels | 1.0 Megapixels |
| Materials | Medical-grade PVC |
| Output | Type-C |
| Field of view | 100 deg |
| Depth of field | 10-100 mm |
| Direction of view | Forward viewing |
| Light source | 6 PCS white LED |
Ordering Notes
Before quotation, confirm the intended procedure, model code, insertion or blade size, channel diameter, compatible display or processor, accessory list and local registration needs.
- Model code and procedure type
- Insertion size or blade size
- Working-channel diameter
- Display or processor compatibility
- Reusable cleaning workflow or accessory matching
- Local registration and package requirements
Inquiry Support
Use the product inquiry module at the bottom of this page to send quotation requirements. Share the model code, procedure type and display or processor requirements so Camjoy can confirm the correct configuration.
