Camjoy Electronic Endoscope / DD101
Camjoy DD101 Disposable Video Double Lumen Tubes
Disposable video double lumen tubes with Type-C output.

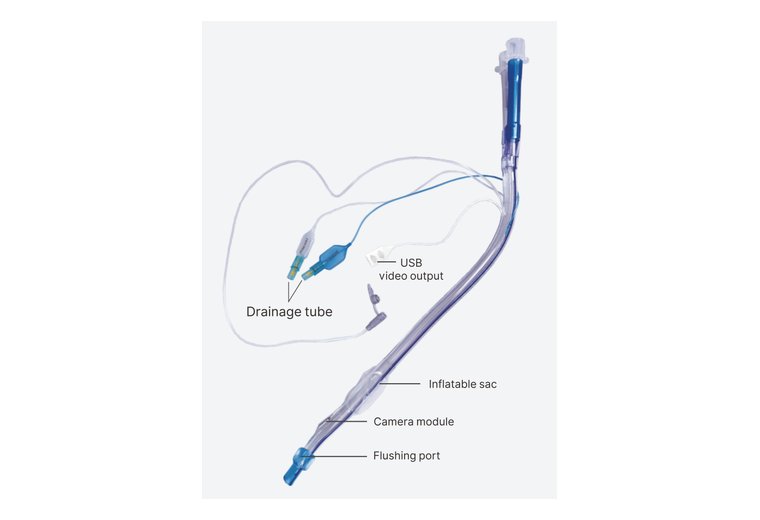

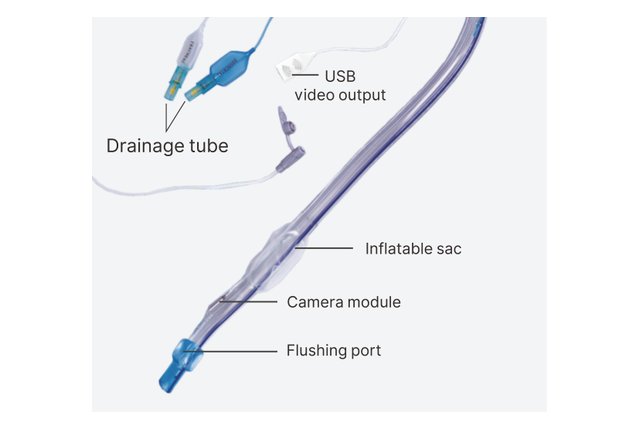

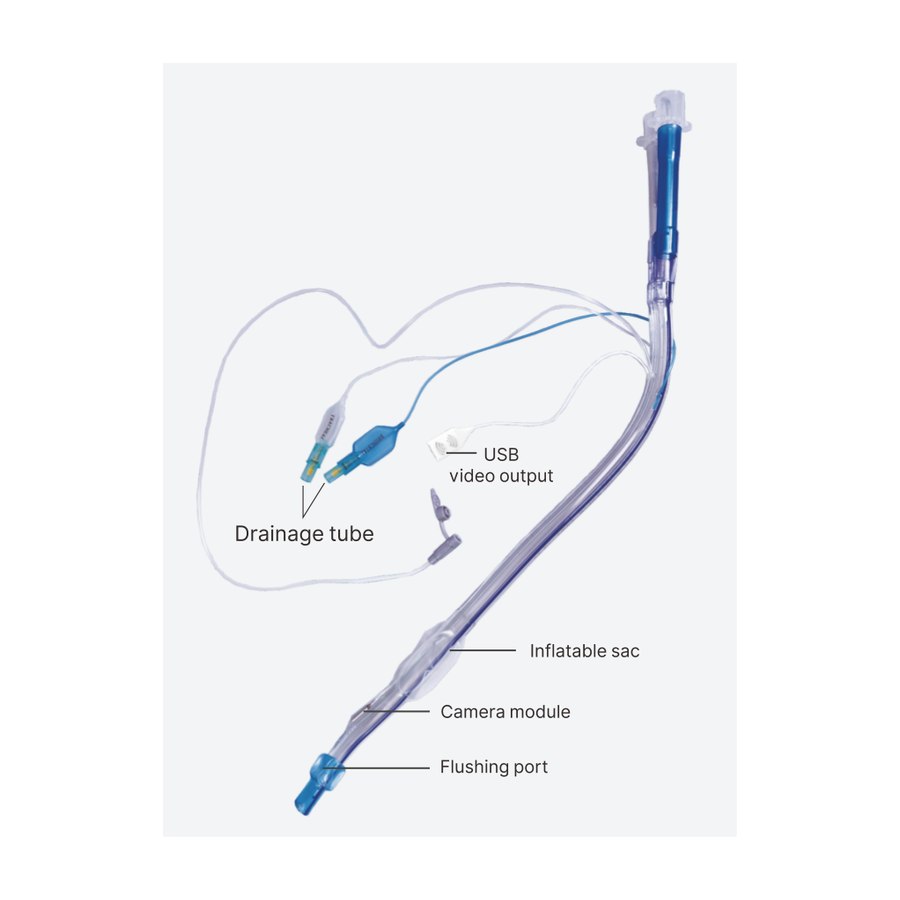

DD101 video double lumen tubes are designed for visualized placement workflows with a camera module, flushing port, drainage tube and Type-C output.
WorkflowAirway visualization accessory
Image systemDigital HD imaging
Model familyDD101
Product Highlights
High-brightness LED cold light sourceHigh-brightness LED cold light source
Multiple OD tube optionsMultiple OD tube options
Single-use medical-grade PVC constructionSingle-use medical-grade PVC construction
Forward-viewing Type-C video outputForward-viewing Type-C video output
Actual Product Views
Review the product body, display connection and configuration details to match the model with the intended clinical workflow.
Physical Configuration Table
Video-enabled airway accessory for intubation support and visual tube placement workflows.
| Product code | DD101 |
|---|---|
| Clinical workflow | Airway visualization accessory |
| Model options | Models: DD2800, DD3200, DD3500, DD3700, DD3900, DD4100 |
| Field of view | 100 deg |
| Depth of field | 10-100 mm |
| Direction of view | Forward viewing |
| Light source / output | 6 PCS white LED |
| Configuration note | Video-enabled airway accessory for intubation support and visual tube placement workflows. |
Technical Specifications
| Models | DD2800, DD3200, DD3500, DD3700, DD3900, DD4100 |
|---|---|
| Size | 28Fr left, 32Fr left, 35Fr left, 37Fr left, 39Fr left, 41Fr left |
| Pixels | 1.0 Megapixels |
| Materials | Medical-grade PVC |
| Output | Type-C |
| Field of view | 100 deg |
| Depth of field | 10-100 mm |
| Direction of view | Forward viewing |
| Light source | 6 PCS white LED |
Ordering Notes
Before quotation, confirm the intended procedure, model code, insertion or blade size, channel diameter, compatible display or processor, accessory list and local registration needs.
- Model code and procedure type
- Insertion size or blade size
- Working-channel diameter
- Display or processor compatibility
- Reusable cleaning workflow or accessory matching
- Local registration and package requirements
Inquiry Support
Use the product inquiry module at the bottom of this page to send quotation requirements. Share the model code, procedure type and display or processor requirements so Camjoy can confirm the correct configuration.
