Camjoy Electronic Endoscope / CD101
Camjoy CD101 Disposable Digital Flexible Cystoscope
Disposable digital flexible cystoscope with HD imaging and ergonomic control.
CD101 supports cystoscopy workflows with single-use flexible scope configurations, USB output options and a familiar handheld control layout for stable lesion imaging.
WorkflowUrology / cystoscopy
Image system400×400 or 1280×720
Model familyCD101
Product Highlights
HD imagingHD imaging for real-time display
One-click photoOne-click photo and video recording
Lightweight ergonomic designLightweight ergonomic design
210 deg left/right deflection210 deg left/right deflection with 350 mm working length

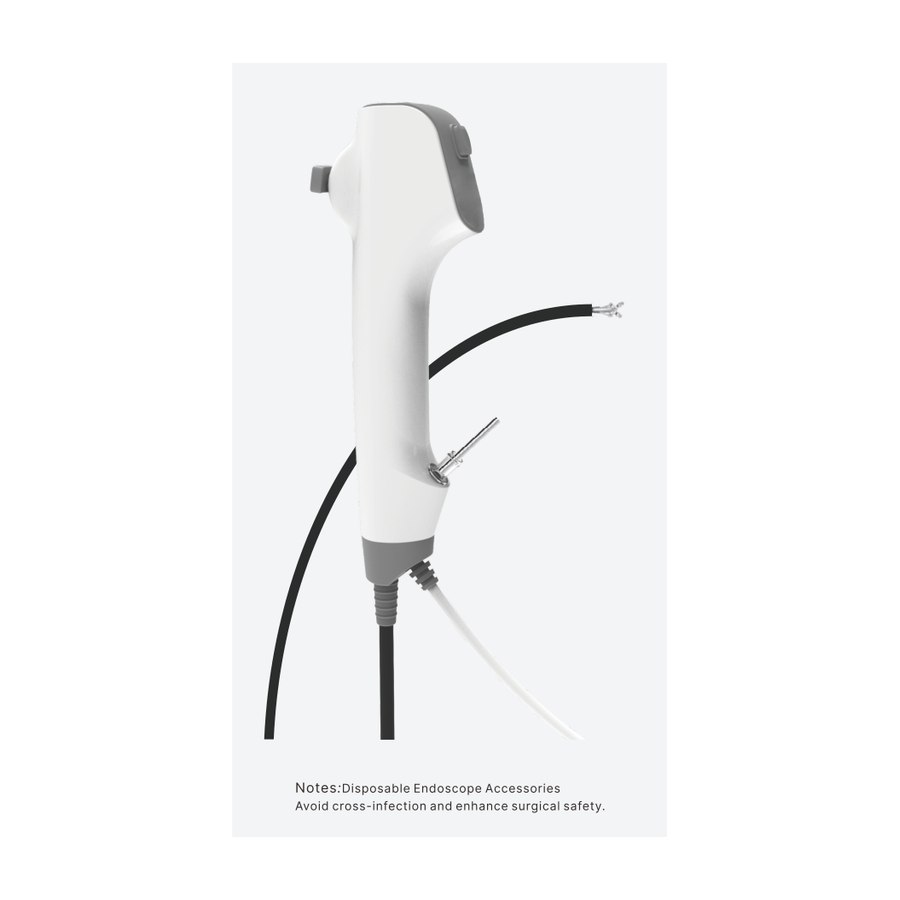

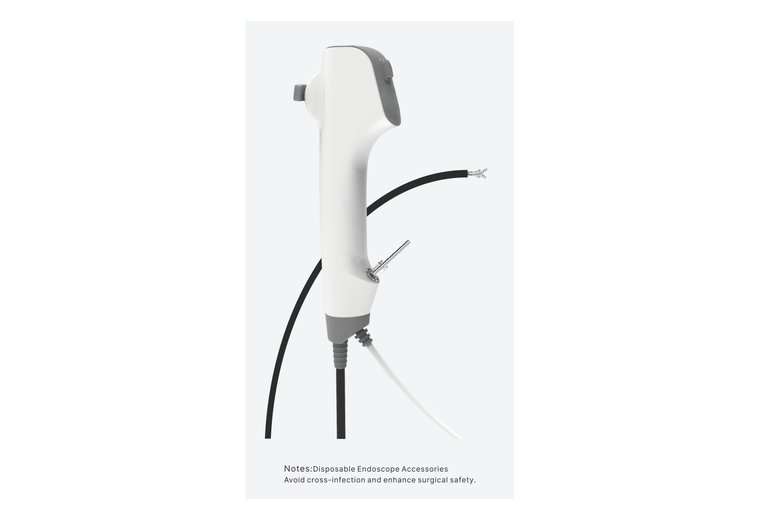

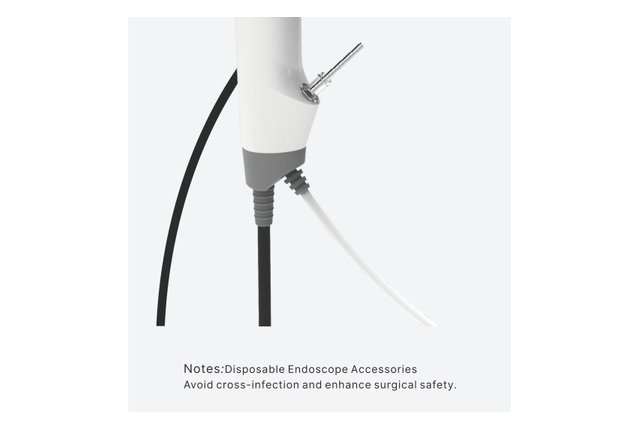

Actual Product Views
Review the product body, display connection and configuration details to match the model with the intended clinical workflow.
Physical Configuration Table
Configured for bladder inspection, cystoscopy imaging and working-channel instrument support.
| Product code | CD101 |
|---|---|
| Clinical workflow | Urology / cystoscopy |
| Model options | Series models: CD4826, CD5230, CD5832, CD5826 |
| Outer diameter / blade options | 4.8 mm, 5.2 mm, 5.8 mm |
| Working channel | 2.6 mm, 3.0 mm, 3.2 mm |
| Image resolution | 400×400 or 1280×720 |
| Field of view | 120 deg or 140 deg |
| Depth of field | 5-50 mm or 3-100 mm |
| Processor / compatibility | CY121 for 160K pixel series |
| Configuration note | Configured for bladder inspection, cystoscopy imaging and working-channel instrument support. |
Technical Specifications
| Series models | CD4826, CD5230, CD5832, CD5826 |
|---|---|
| Tube OD | 4.8 mm, 5.2 mm, 5.8 mm |
| Channel ID | 2.6 mm, 3.0 mm, 3.2 mm |
| Resolution | 400×400 or 1280×720 |
| Field of view | 120 deg or 140 deg |
| Depth of field | 5-50 mm or 3-100 mm |
| Compatible processor | CY121 for 160K pixel series |
Ordering Notes
Before quotation, confirm the intended procedure, model code, insertion or blade size, channel diameter, compatible display or processor, accessory list and local registration needs.
- Model code and procedure type
- Insertion size or blade size
- Working-channel diameter
- Display or processor compatibility
- Single-use sterile workflow
- Local registration and package requirements
Inquiry Support
Use the product inquiry module at the bottom of this page to send quotation requirements. Share the model code, procedure type and display or processor requirements so Camjoy can confirm the correct configuration.
