Camjoy Electronic Endoscope / BR101
Camjoy BR101 Reusable Digital Flexible Bronchoscope
Reusable flexible bronchoscope for HD airway endoscopy.
BR101 is a reusable digital flexible bronchoscope family with multiple tube diameters, working-channel options and HD-compatible reusable operation.
WorkflowAirway / bronchoscopy
Image system400×400 or 1280×720
Model familyBR101
Product Highlights
HD imagingHD imaging with compatible main units
One-touch image freezeOne-touch image freeze
Ergonomic reusable handleErgonomic reusable handle
210 deg up/down deflection210 deg up/down deflection with 600 mm working length

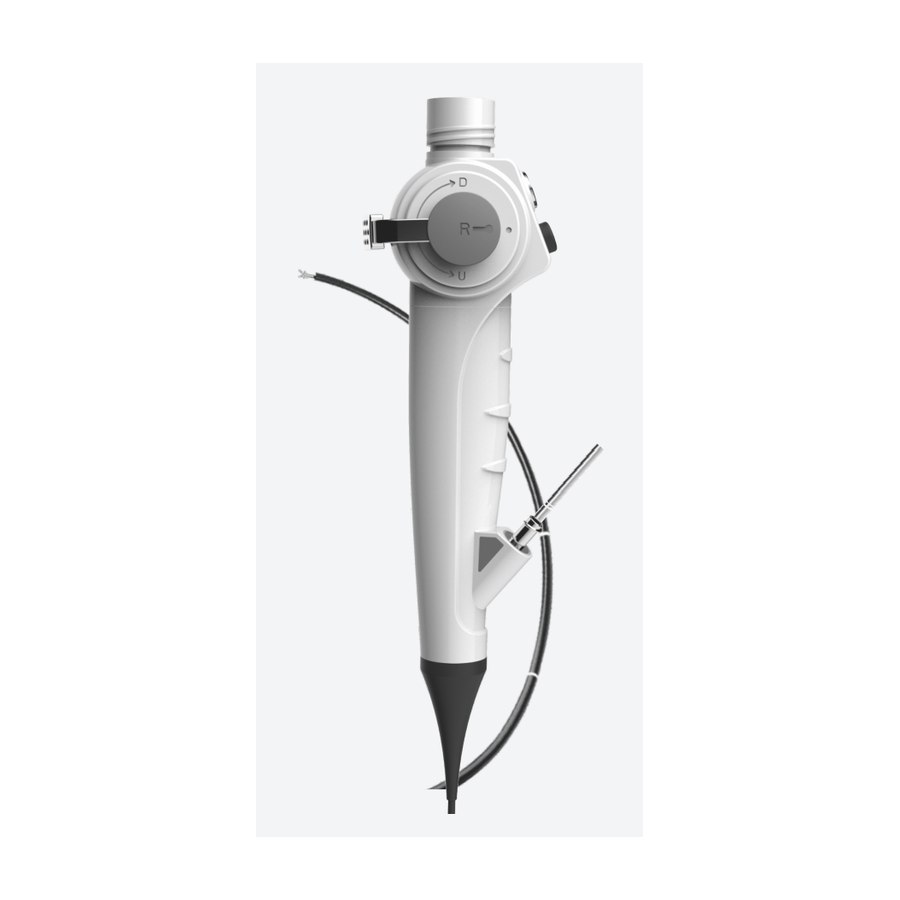

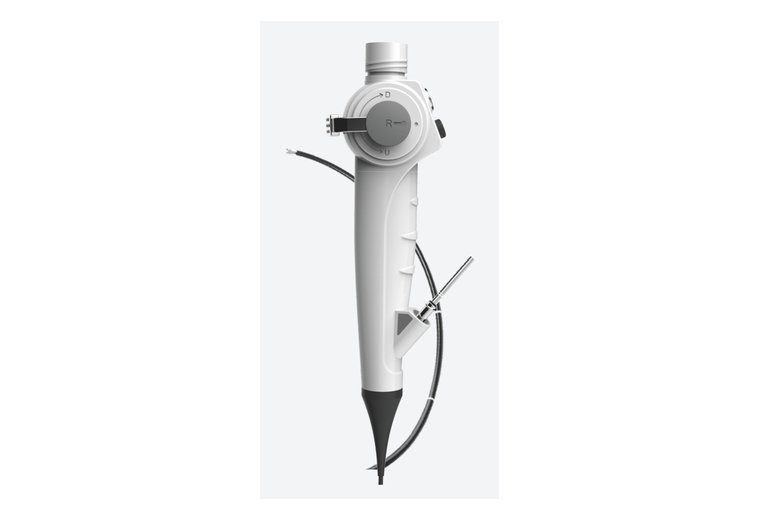

Actual Product Views
Review the product body, display connection and configuration details to match the model with the intended clinical workflow.
Physical Configuration Table
Prepared for airway visualization with flexible access and multiple channel-diameter choices.
| Product code | BR101 |
|---|---|
| Clinical workflow | Airway / bronchoscopy |
| Model options | 160K pixel models: BR2812, BR3818, BR4826, BR5230, BR5832; 1.0 MP models: BR3800, BR4816, BR5826 |
| Outer diameter / blade options | 2.8-5.8 mm |
| Working channel | 0.0-3.2 mm |
| Image resolution | 400×400 or 1280×720 |
| Field of view | 120 deg |
| Depth of field | 5-50 mm |
| Configuration note | Prepared for airway visualization with flexible access and multiple channel-diameter choices. |
Technical Specifications
| 160K pixel models | BR2812, BR3818, BR4826, BR5230, BR5832 |
|---|---|
| 1.0 MP models | BR3800, BR4816, BR5826 |
| Tube OD | 2.8-5.8 mm |
| Channel ID | 0.0-3.2 mm |
| Resolution | 400×400 or 1280×720 |
| Field of view | 120 deg |
| Depth of field | 5-50 mm |
Ordering Notes
Before quotation, confirm the intended procedure, model code, insertion or blade size, channel diameter, compatible display or processor, accessory list and local registration needs.
- Model code and procedure type
- Insertion size or blade size
- Working-channel diameter
- Display or processor compatibility
- Reusable cleaning workflow or accessory matching
- Local registration and package requirements
Inquiry Support
Use the product inquiry module at the bottom of this page to send quotation requirements. Share the model code, procedure type and display or processor requirements so Camjoy can confirm the correct configuration.
