Camjoy Electronic Endoscope / DG101
Camjoy DG101 Digital Gastroscope
Digital gastroscope with dual-channel design and OEM processor option.
DG101 is a digital gastroscope platform with angle lock lever, HD imaging, deflection control, dual-channel distal design and an OEM processor kit option.
WorkflowGastroenterology
Image system1280×720
Model familyDG101
Product Highlights
Angle lock leverAngle lock lever for stable operation
HD imaging of lesionsHD imaging of lesions
90 deg left/right/down90 deg left/right/down and 180 deg up deflection
Separate waterSeparate water and air channels

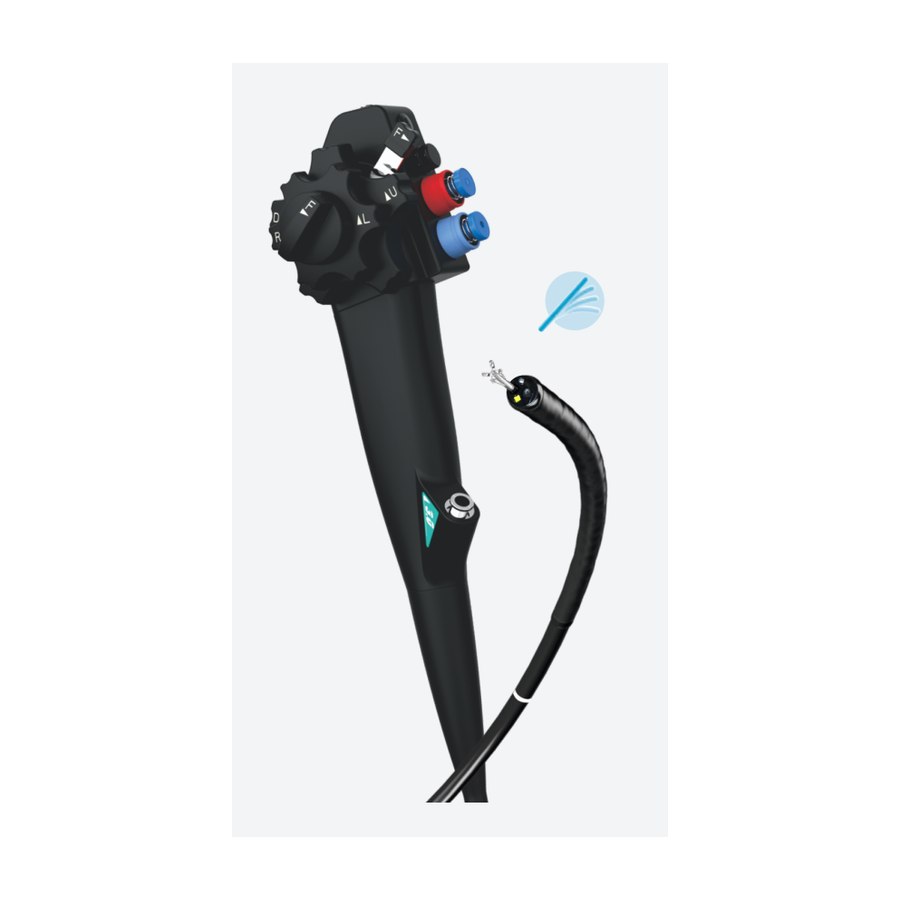

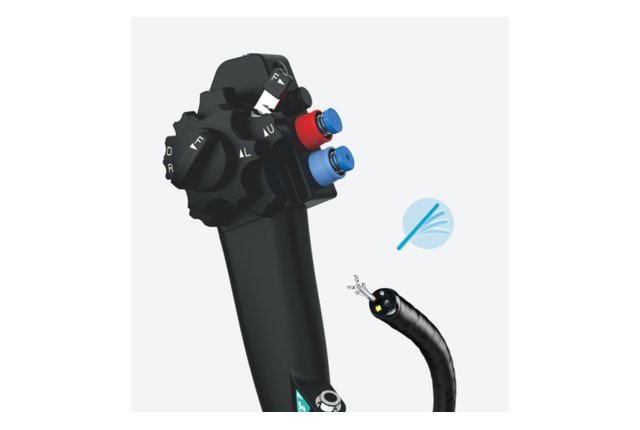

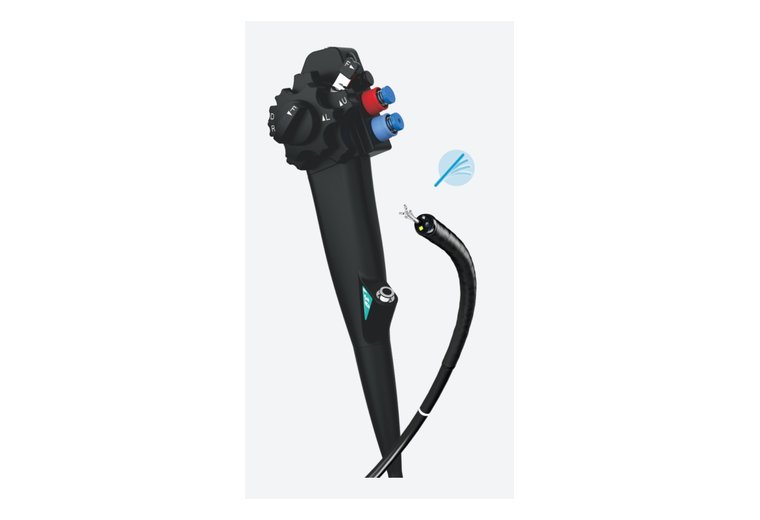

Actual Product Views
Review the product body, display connection and configuration details to match the model with the intended clinical workflow.
Physical Configuration Table
Designed for HD digestive endoscopy with forward viewing and compatible processor configurations.
| Product code | DG101 |
|---|---|
| Clinical workflow | Gastroenterology |
| Model options | Models: DG7020, DG8026, DG9530 |
| Outer diameter / blade options | 7.0 mm, 8.0 mm, 9.5 mm |
| Working channel | 2.0 mm, 2.6 mm, 3.0 mm |
| Working length | 1050 / 1500 / 3000 / 3500 mm |
| Image resolution | 1280×720 |
| Field of view | 140 deg |
| Depth of field | 3-100 mm |
| Direction of view | Forward viewing |
| Light source / output | LED |
| Configuration note | Designed for HD digestive endoscopy with forward viewing and compatible processor configurations. |
Technical Specifications
| Models | DG7020, DG8026, DG9530 |
|---|---|
| Tube OD | 7.0 mm, 8.0 mm, 9.5 mm |
| Channel ID | 2.0 mm, 2.6 mm, 3.0 mm |
| Working length | 1050 / 1500 / 3000 / 3500 mm |
| Direction of view | Forward viewing |
| Resolution | 1280×720 |
| Field of view | 140 deg |
| Depth of field | 3-100 mm |
| Light source | LED |
Ordering Notes
Before quotation, confirm the intended procedure, model code, insertion or blade size, channel diameter, compatible display or processor, accessory list and local registration needs.
- Model code and procedure type
- Insertion size or blade size
- Working-channel diameter
- Display or processor compatibility
- Reusable cleaning workflow or accessory matching
- Local registration and package requirements
Inquiry Support
Use the product inquiry module at the bottom of this page to send quotation requirements. Share the model code, procedure type and display or processor requirements so Camjoy can confirm the correct configuration.
