Camjoy Electronic Endoscope / CY121
Camjoy CY121 Universal Medical Display
12.1 inch universal medical display for flexible endoscope handpieces.
CY121 is a universal medical display for multiple Camjoy flexible endoscope handpieces, designed for portable on-site use with Type-C and Mini HDMI connectivity.
WorkflowEndoscope display platform
Image system1280×800
Model familyCY121
Product Highlights
12.1 inch HD display12.1 inch HD display
Fits multiple flexible endoscope handpiecesFits multiple flexible endoscope handpieces
Raised buttonsRaised buttons and recessed interface protection
Type-CType-C and Mini HDMI external display support

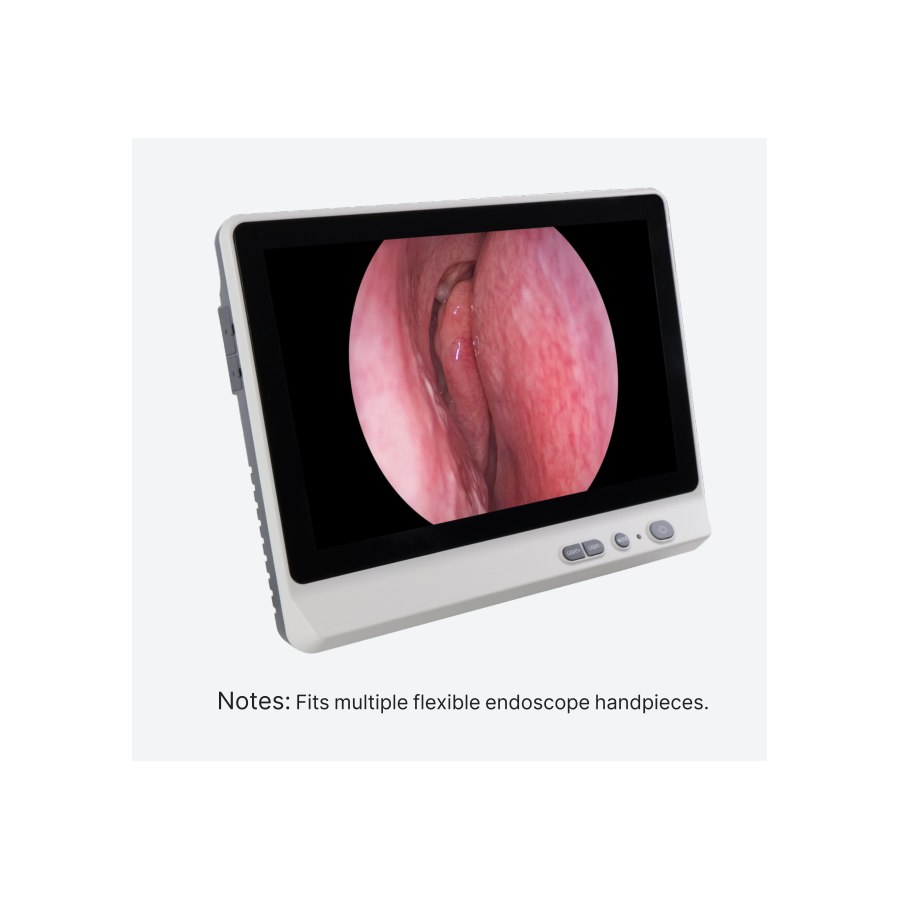

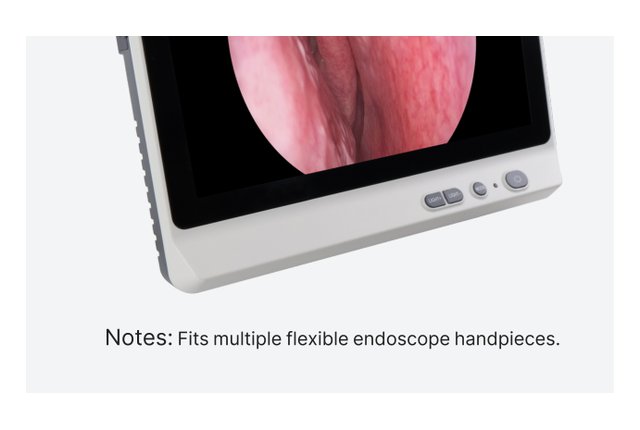

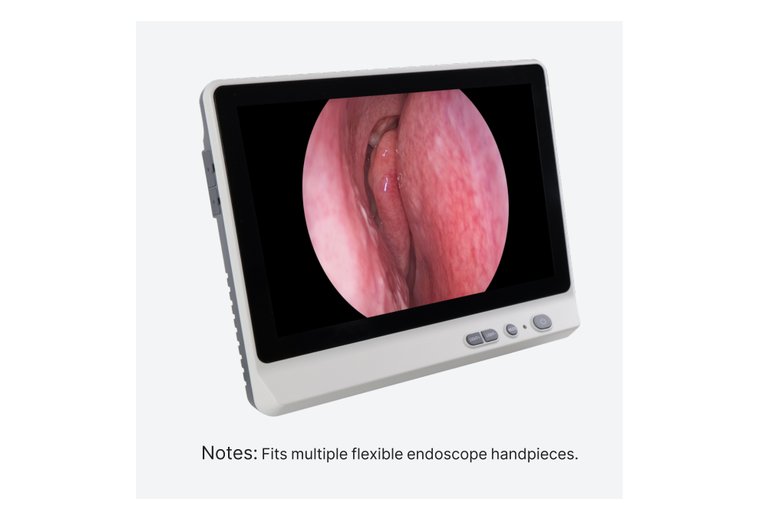

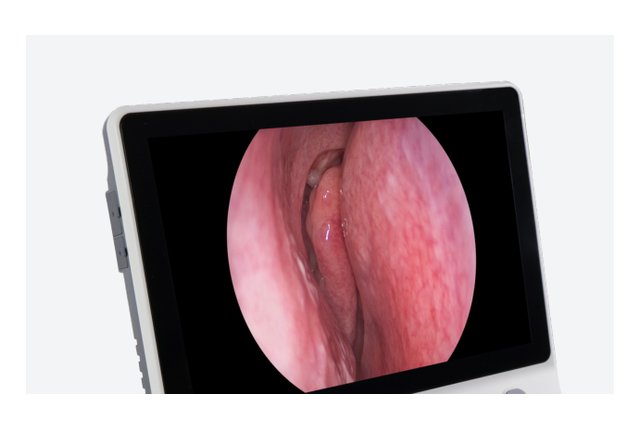

Actual Product Views
Review the product body, display connection and configuration details to match the model with the intended clinical workflow.
Physical Configuration Table
Display or processor module for compatible Camjoy digital flexible endoscope handpieces.
| Product code | CY121 |
|---|---|
| Clinical workflow | Endoscope display platform |
| Model options | Model: CY121 |
| Image resolution | 1280×800 |
| Configuration note | Display or processor module for compatible Camjoy digital flexible endoscope handpieces. |
Technical Specifications
| Model | CY121 |
|---|---|
| Power supply input | DC12V |
| Screen size | 12.1 inch |
| Resolution | 1280×800 |
| Screen | Capacitive touch screen |
| External interface | Type-C, HDMI output, three-phase power interface |
| Functions | White balance, brightness control, image capture, video capture |
Ordering Notes
Before quotation, confirm the intended procedure, model code, insertion or blade size, channel diameter, compatible display or processor, accessory list and local registration needs.
- Model code and procedure type
- Insertion size or blade size
- Working-channel diameter
- Display or processor compatibility
- Reusable cleaning workflow or accessory matching
- Local registration and package requirements
Inquiry Support
Use the product inquiry module at the bottom of this page to send quotation requirements. Share the model code, procedure type and display or processor requirements so Camjoy can confirm the correct configuration.
