Advanced Veterinary Diagnostics

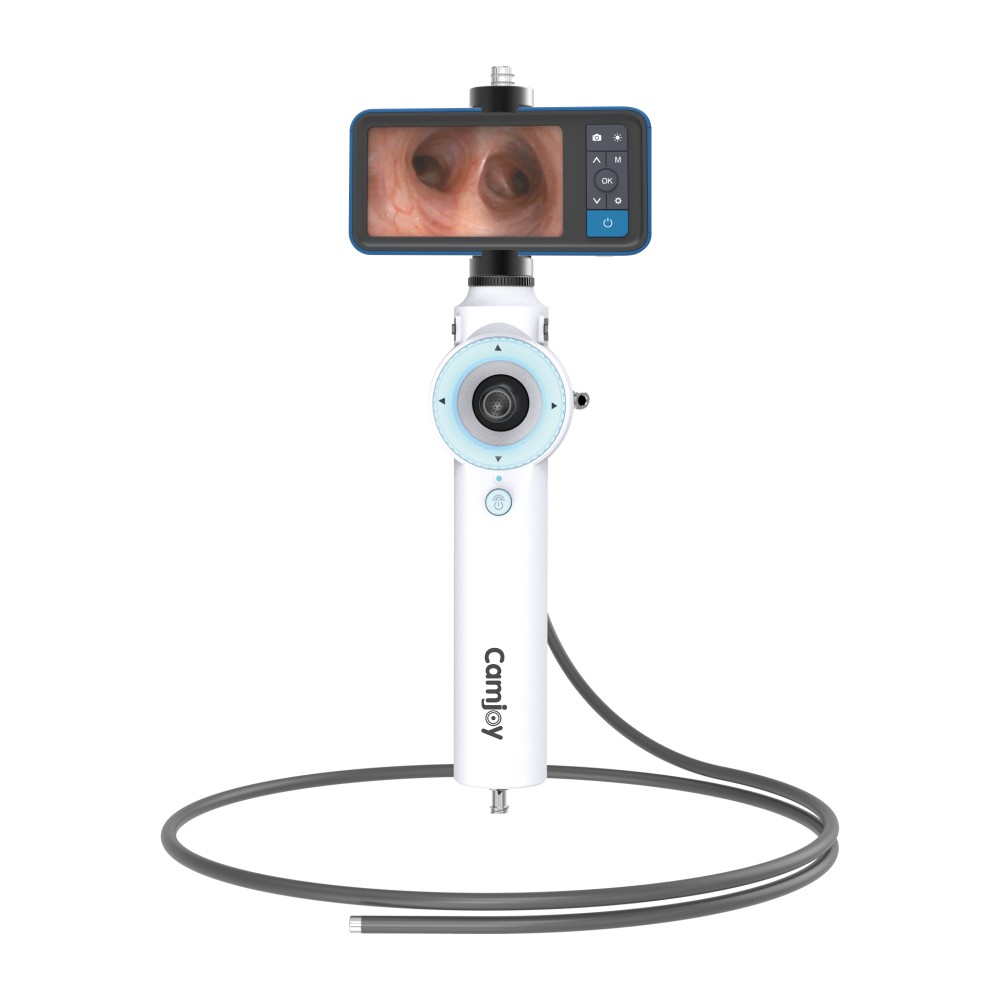

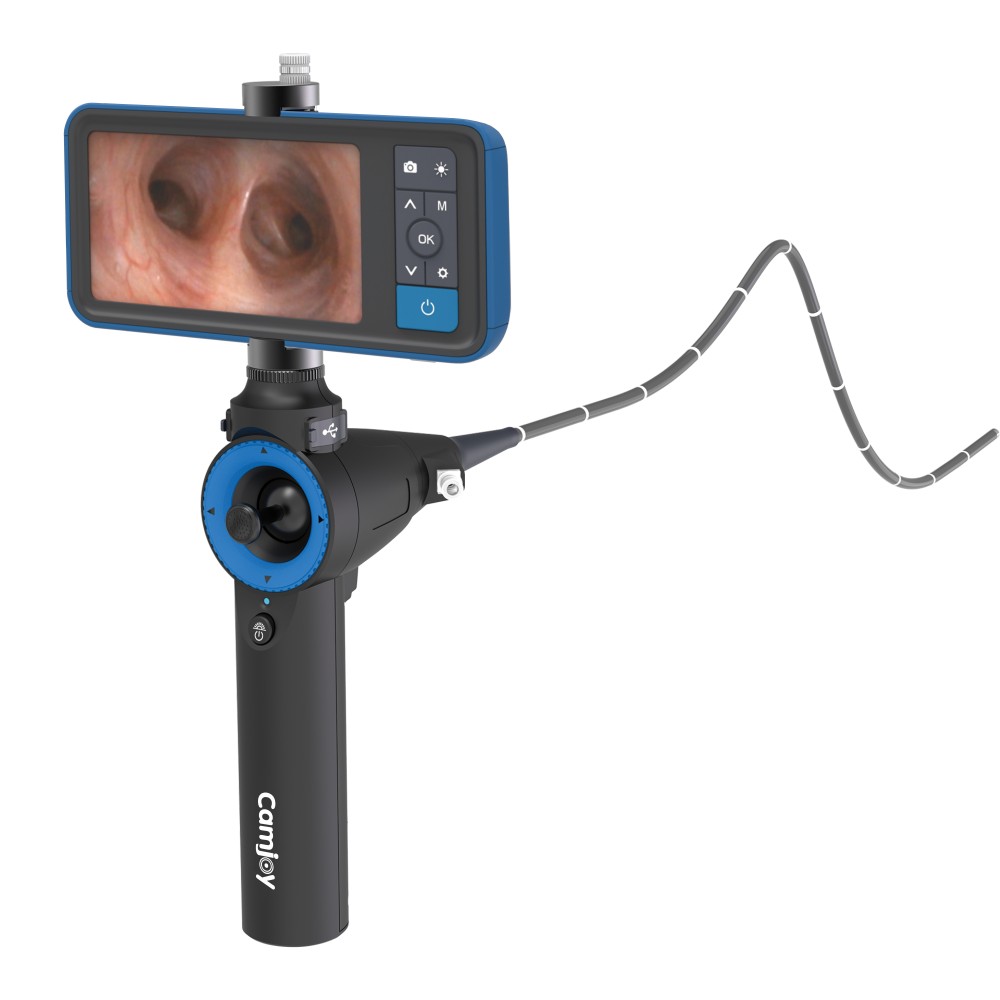

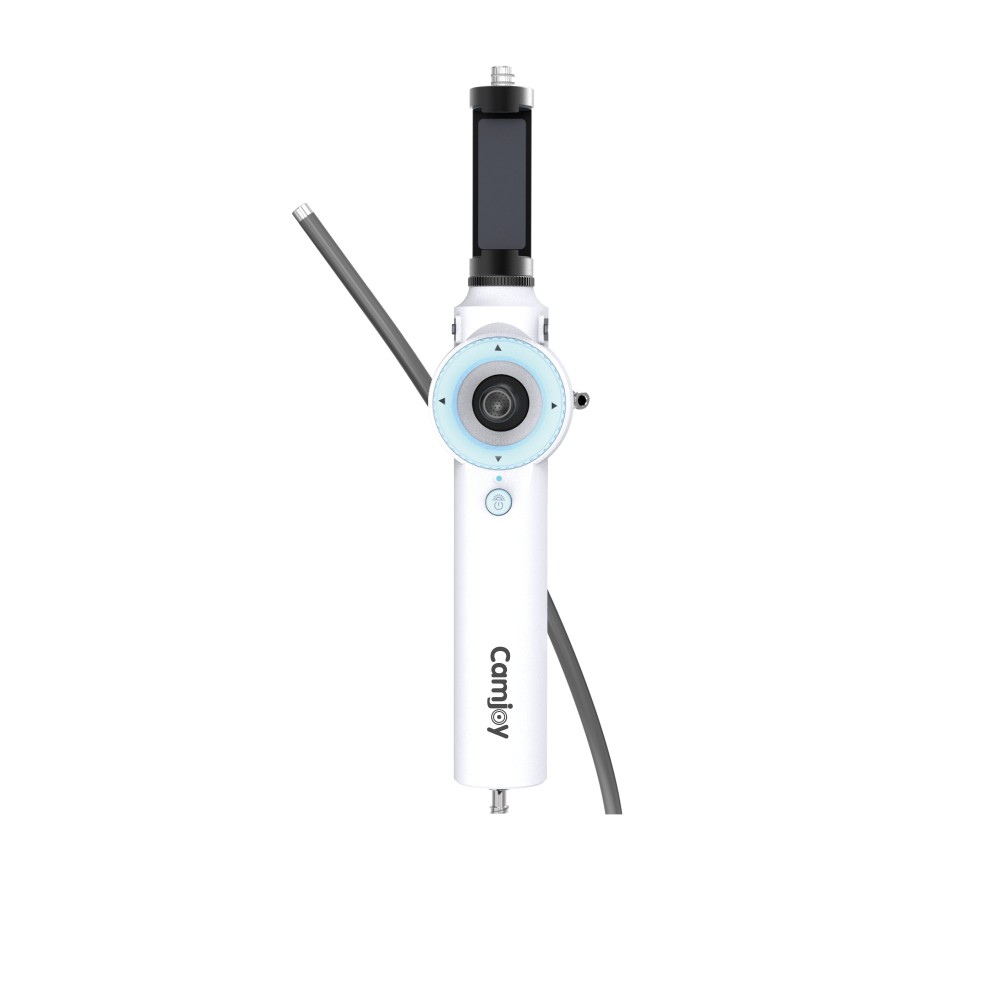

Camjoy CV102 Advanced Flexible Veterinary Endoscope
The CV102 (Model V01001) represents a significant clinical upgrade in our veterinary catalog. Designed for small to medium-sized animals, it builds upon foundational mobility by introducing full 360° steering, active fluid management, and versatile wireless connectivity. It transforms routine Veterinary Endoscopy into a highly efficient, active therapeutic process capable of handling complex anatomical challenges.
Unrestricted Maneuverability & Fluid Control
By drastically upgrading its physical handling and incorporating active irrigation, the CV102 ensures that veterinarians maintain total visual and physical control when navigating intricate veterinary anatomy.
Full 360° Steering
Unlike baseline models limited to 180° deflection, the CV102 upgrades physical handling with full 360° multi-directional steering. This allows for highly convenient and rapid clinical operation, significantly reducing patient trauma and procedure time.
Independent Water & Air Channel
A critical addition to this model is its dedicated water and air delivery pathway. Veterinarians can actively wash the lens and clear the surgical view mid-procedure, ensuring continuous high-definition visibility even in challenging, fluid-heavy environments.
Compact 5.8mm Insertion Tube
Despite packing complex steering mechanics and an extra fluid channel, it maintains a highly compact 5.8mm outer diameter (OD) and a versatile 750mm working length, perfectly suited for the digestive and respiratory tracts of small to medium subjects.
Software & Connectivity
Enhanced Wi-Fi & Smart Imaging
The CV102 surpasses standard smart models by supporting completely wireless, high-definition data transmission to multiple platforms.
1 Million Pixel HD Resolution
The high-definition distal camera yields a 1 Million Pixel resolution. Paired with an expansive 120° field of view and a 7mm to 100mm depth of field, it captures every detail of the patient’s internal anatomy with stunning clarity.
Wi-Fi & USB Transmission
It offers unparalleled clinical mobility by supporting both Wi-Fi and direct USB image transmission. It connects instantly and seamlessly to modern Android, Windows, and iOS devices to display and record procedures.
Therapeutic 2.0mm Channel
Transforming the scope from a diagnostic viewer into an active surgical tool, the 2.0mm inner diameter (ID) working channel allows the passage of vital accessories such as Two-Prong Foreign Body Forceps, dilation balloons, and precise medication syringes.
CV102 Technical Specifications
The definitive engineering parameters for the CV102 Advanced Veterinary Endoscope.
| Hardware Component | Specification & Parameter |
|---|---|
| Model Reference | CV102 (V01001) |
| Outer Tube Diameter (OD) | 5.8mm |
| Working Length | 750mm |
| Working Channel (ID) | 2.0mm |
| Fluid Management | Independent Water and Air Delivery Channel |
| Deflection Angle | Full 360° Steering (Multi-Directional) |
| Video Resolution | 1 Million Pixels |
| Field of View (FOV) | 120° |
| Depth of Field | 7mm – 100mm |
| Smart Connectivity | Wi-Fi & Direct USB Data Transmission |
| Device Compatibility | Android, iOS, Windows PCs, CY045 Display |
| Compatible Accessories | Two-Prong Forceps, Balloons, Syringes, Cleaning Brushes, Valves |
Veterinary Clinical FAQ: CV102
Q1: What are the primary upgrades of the CV102 compared to the base CV101?
A: The CV102 introduces three critical upgrades: Full 360° multi-directional steering for superior navigation, an independent water and air delivery channel for active lens cleaning, and advanced wireless Wi-Fi connectivity.
Q2: How does the Independent Water and Air Channel improve procedures?
A: During deep respiratory or GI procedures, fluids and debris often obscure the camera lens. This dedicated channel allows veterinarians to actively flush water and pump air to wash the lens in real-time, eliminating the need to frequently remove and manually clean the endoscope.
Q3: What viewing devices can connect to the CV102?
A: Through its Wi-Fi and USB integration, it connects flawlessly to standard Android, iOS, and Windows smart devices. Within our ecosystem, it is explicitly designed to pair with the highly portable CY045 Specialized 4.5-inch Display for a streamlined clinical setup.
Q4: Can it perform active therapeutic treatments?
A: Yes. It features a 2.0mm inner diameter working channel that accommodates vital operational accessories like Two-Prong Foreign Body Forceps, dilation balloons, and syringes, allowing for immediate therapeutic intervention.
