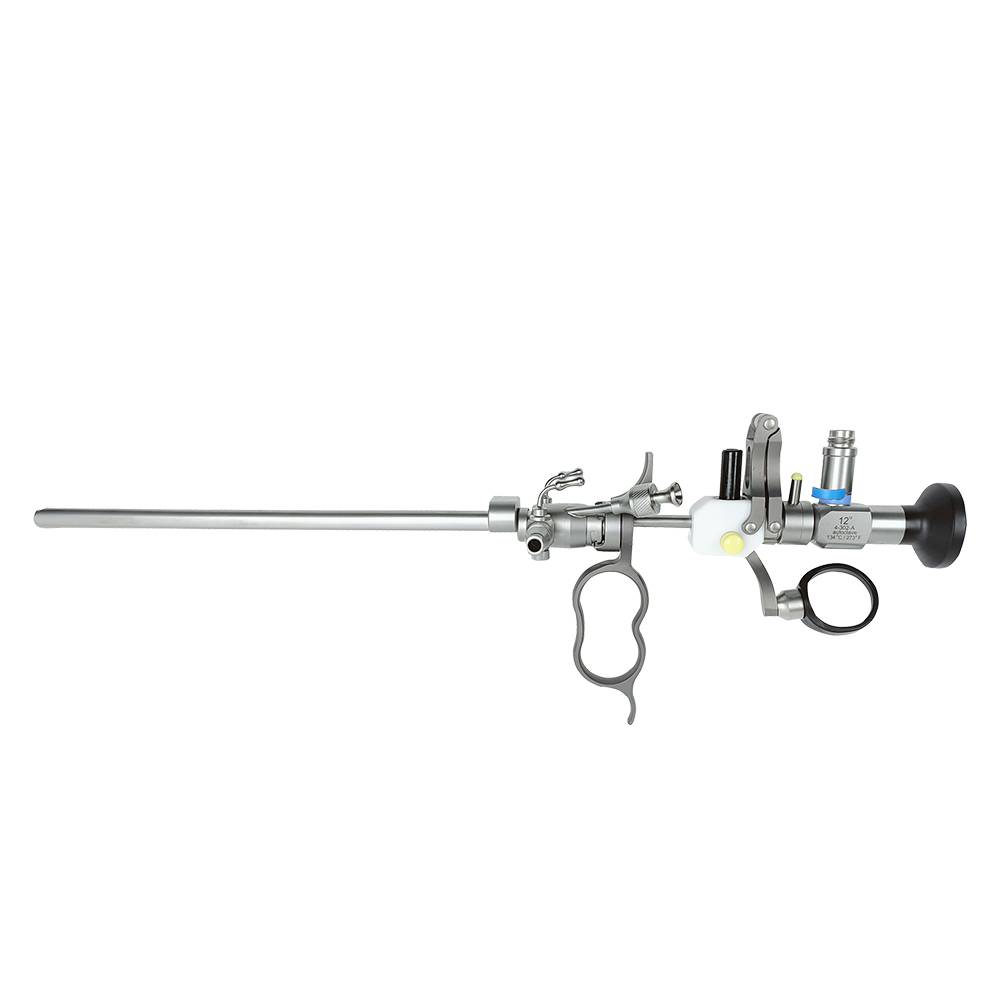

Urethrotome Set – US103A2 (Rotating Locked, Adult Type, Titanium Alloy Handle)
The Urethrotome Set US103A2 is a premium surgical instrument designed for the
treatment of urethral strictures in adult patients. Featuring a rotating locked system
and a titanium alloy handle, it offers exceptional strength, corrosion resistance,
and precision control during internal urethrotomy procedures. Fully compatible with major light cable systems.
Product Highlights
- Rotating locked mechanism ensures stable and precise surgical performance
- Lightweight titanium alloy handle for superior durability and balance
- Compatible with STORZ, WOLF, OLYMPUS, ATOMK, and ACMI light cables
- Includes four interchangeable cold knives for different incision needs
- Reusable, autoclavable, and made of medical-grade stainless steel
Set Components
- 4302.12 Endoscope (Green) – 12° / Ø4mm / 302mm
- W3613 Working Element (Passive, Titanium alloy) – Same as W8011P
- S2120A Sheath & Obturator – 21Fr / 200mm (with instrument channel)
- S2419H Half-round Sheath – 24.2Fr / 190mm
- R3340 Cleaning Rod – Ø3mm / 340mm
- A4301 In-flow Valve
- A4302 Out-flow Valve
- A4303 Sealed Cap
- K4281A Cold Knife, Straight – Ø4mm / 288mm
- K4282A Cold Knife, Round – Ø4mm / 288mm
- K4283A Cold Knife, Sickle-shaped – Ø4mm / 288mm
- K4284A Cold Knife, Hook-shaped – Ø4mm / 288mm
Technical Specifications
| Endoscope Direction | 12° |
| Endoscope Diameter | 4mm |
| Working Length | 302mm |
| Sheath Size | 21Fr / 24.2Fr |
| Sheath Length | 190–200mm |
| Handle Material | Titanium Alloy |
| Working Element | Passive Type |
| Material | Medical Grade Stainless Steel + Titanium Alloy |
| Compatibility | STORZ / WOLF / OLYMPUS / ATOMK / ACMI |
| Sterilization | Autoclavable at 134°C |
Applications
The US103A2 Urethrotome Set is used for internal urethrotomy
and urethral stricture management under direct endoscopic visualization.
It is suitable for use in hospitals, urology departments, and minimally invasive surgical centers.
Sterilization & Maintenance
- Disassemble all components before cleaning and sterilization.
- Use enzymatic detergent and soft brushes for thorough cleaning.
- Rinse with deionized water and dry completely before assembly.
- Sterilize by autoclaving at 134°C or by ETO sterilization.
Ordering Information
Model: US103A2
Type: Rotating Locked, Adult Type, Titanium Alloy Handle
Supplied as: Complete set or individual components
OEM / ODM customization available upon request
