Urethrotome Set – US103A1 (Rotating Locked, Adult Type, Plastic Handle)
The Urethrotome Set US103A1 is designed for precise and efficient urethral
stricture treatment in adult patients. Its rotating locked mechanism ensures stable operation,
while the ergonomic plastic handle provides better grip and comfort during endoscopic procedures.
This urethrotome set is fully compatible with major endoscopy systems.
Product Highlights
- Rotating locked structure for stable and accurate cutting
- Plastic passive working element handle for lightweight operation
- Compatible with STORZ, WOLF, OLYMPUS, ATOMK, and ACMI light cables
- Includes four types of cold knives for different surgical needs
- Reusable and autoclavable medical-grade stainless steel components
Set Components

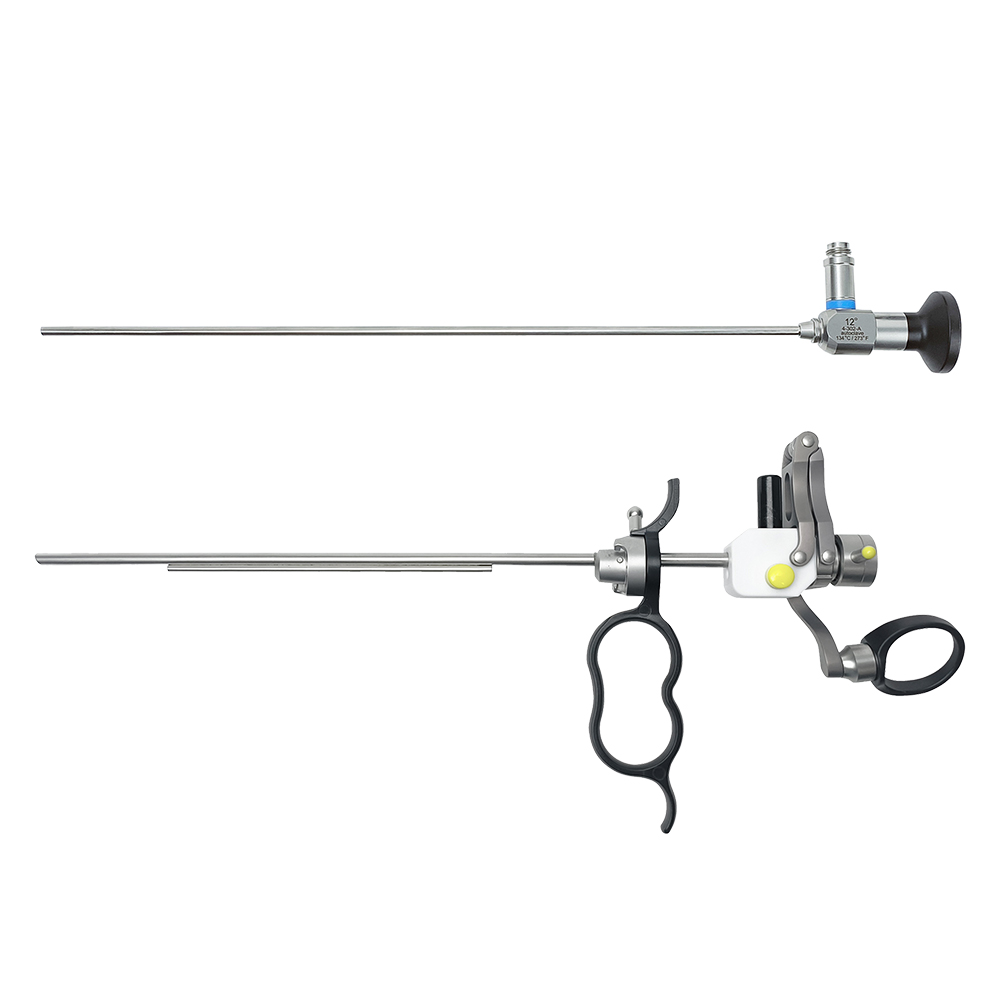

- 4302.12 Endoscope (Green) – 12° / Ø4mm / 302mm
- W3603 Working Element (Passive, Plastic) – Same as W8001P
- S2120A Sheath & Obturator – 21Fr / 200mm (with instrument channel)
- S2419H Half-round Sheath – 24.2Fr / 190mm
- R3340 Cleaning Rod – Ø3mm / 340mm
- A4301 In-flow Valve
- A4302 Out-flow Valve
- A4303 Sealed Cap

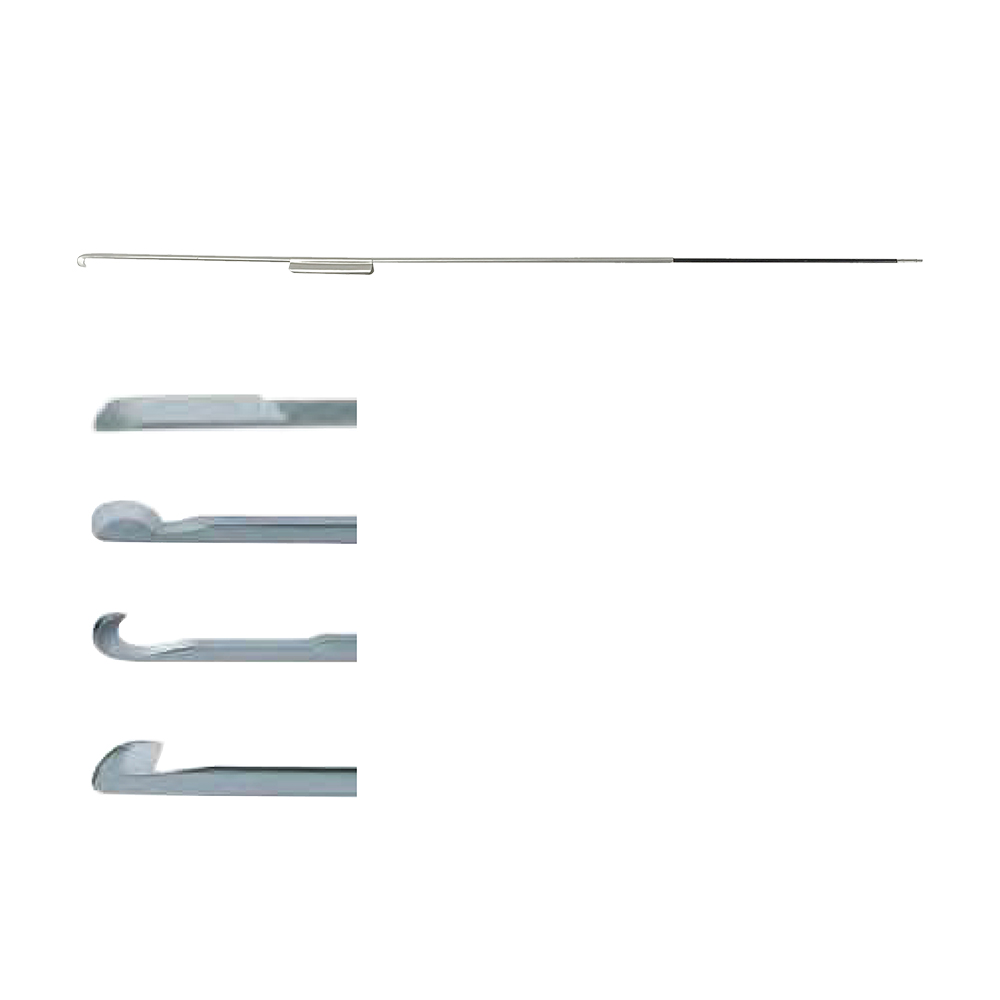

- K4281A Cold Knife, Straight – Ø4mm / 288mm
- K4282A Cold Knife, Round – Ø4mm / 288mm
- K4283A Cold Knife, Sickle-shaped – Ø4mm / 288mm
- K4284A Cold Knife, Hook-shaped – Ø4mm / 288mm
Technical Specifications
| Endoscope Direction | 12° |
| Endoscope Diameter | 4mm |
| Sheath Size | 21Fr / 24.2Fr |
| Sheath Length | 190–200mm |
| Handle Type | Passive, Plastic |
| Material | Medical Grade Stainless Steel |
| Compatibility | STORZ / WOLF / OLYMPUS / ATOMK / ACMI |
| Sterilization | Autoclavable at 134°C |
Applications
The US103A1 Urethrotome Set is ideal for performing internal urethrotomy
and urethral stricture surgeries in adult patients. It allows accurate incision under
direct endoscopic visualization, making it suitable for hospitals, urology departments, and
minimally invasive surgical centers.
Sterilization & Maintenance
- Disassemble all components before cleaning and sterilization.
- Clean thoroughly using enzymatic detergents and soft brushes.
- Rinse with deionized water and dry completely before assembly.
- Sterilize by autoclaving at 134°C for 5 minutes or ETO sterilization.
Ordering Information
Model: US103A1
Type: Rotating Locked, Adult Type with Plastic Handle
Supplied as complete set or individual components.
OEM and ODM customization available.
