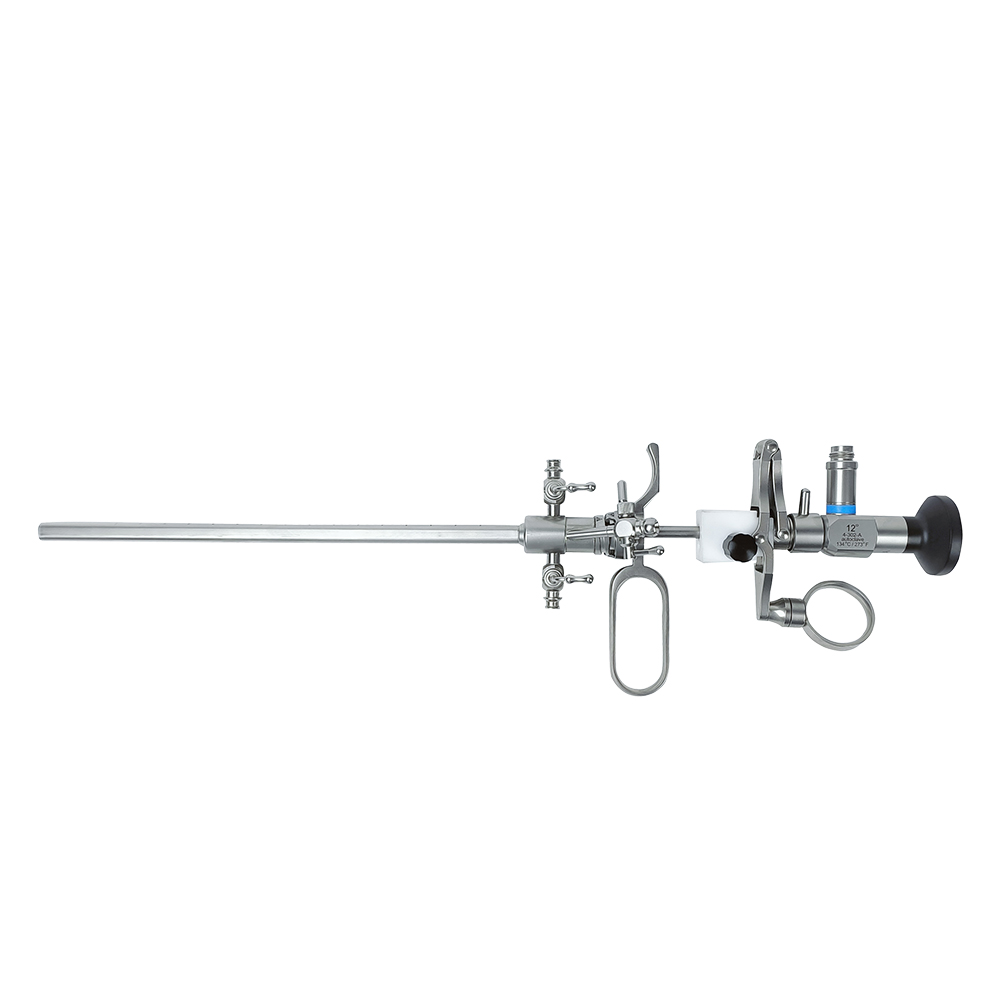

Urethrotome Set – US102 (Rotating Locked, Child Type)
The Urethrotome Set US102 is a precision-designed urology instrument for
pediatric and narrow urethral procedures. It provides controlled cutting of urethral
strictures under endoscopic visualization. The rotating locked structure ensures stability,
accuracy, and compatibility with leading endoscopy light sources.
Product Highlights
- Specially designed for pediatric and small-caliber urethral applications
- Rotating locked system for precise operation
- Compatible with major light cables (STORZ, WOLF, OLYMPUS, ACMI, ATOM)
- Multiple cold knife shapes: straight, round, sickle, and hook
- Reusable, autoclavable, and built from surgical-grade stainless steel
Set Components
- 3302.12 Endoscope (Green) – 12° / Ø3mm / 302mm
- W3602 Working Element (Passive)
- S1820 Sheath & Obturator – 18.5Fr / 200mm
- S2118H Half-round Sheath – 21.7Fr / 180mm
- R3340 Cleaning Rod – Ø3mm / 340mm
- A4301 In-flow Valve
- A4302 Out-flow Valve
- A4303 Sealed Cap
- K3281 Cold Knife, Straight – Ø3mm / 282mm
- K3282 Cold Knife, Round – Ø3mm / 282mm
- K3283 Cold Knife, Sickle-shaped – Ø3mm / 282mm
- K3284 Cold Knife, Hook-shaped – Ø3mm / 282mm
Technical Specifications
| Endoscope Direction | 12° |
| Endoscope Diameter | 3mm |
| Sheath Size | 18.5Fr / 21.7Fr |
| Sheath Length | 180–200mm |
| Material | Medical Grade Stainless Steel |
| Working Element | Passive Type, Rotating Locked |
| Sterilization | Autoclavable at 134°C |
Applications
The US102 urethrotome set is used for internal urethrotomy and urethral
stricture treatment in pediatric and adult patients with narrow urethra. Suitable for
hospitals and urology clinics performing delicate endoscopic urethral surgery.
Sterilization & Maintenance
- Disassemble all parts before cleaning and sterilization.
- Clean with enzymatic detergent and a soft brush.
- Rinse with deionized or distilled water, then dry completely.
- Autoclave at 134°C for 5 minutes or use ETO sterilization methods.
Ordering Information
Model: US102
Type: Rotating Locked, Child Type
Available as complete set or individual components.
OEM and ODM customization available.
