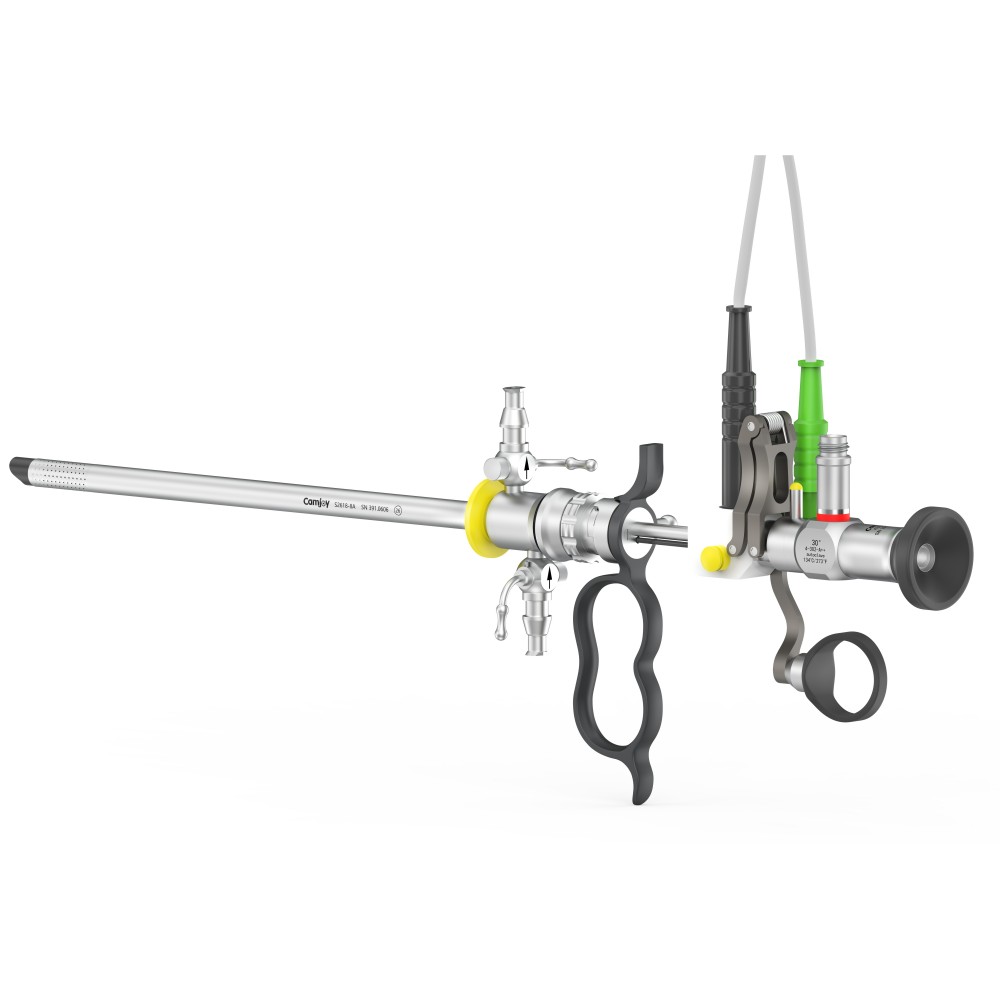

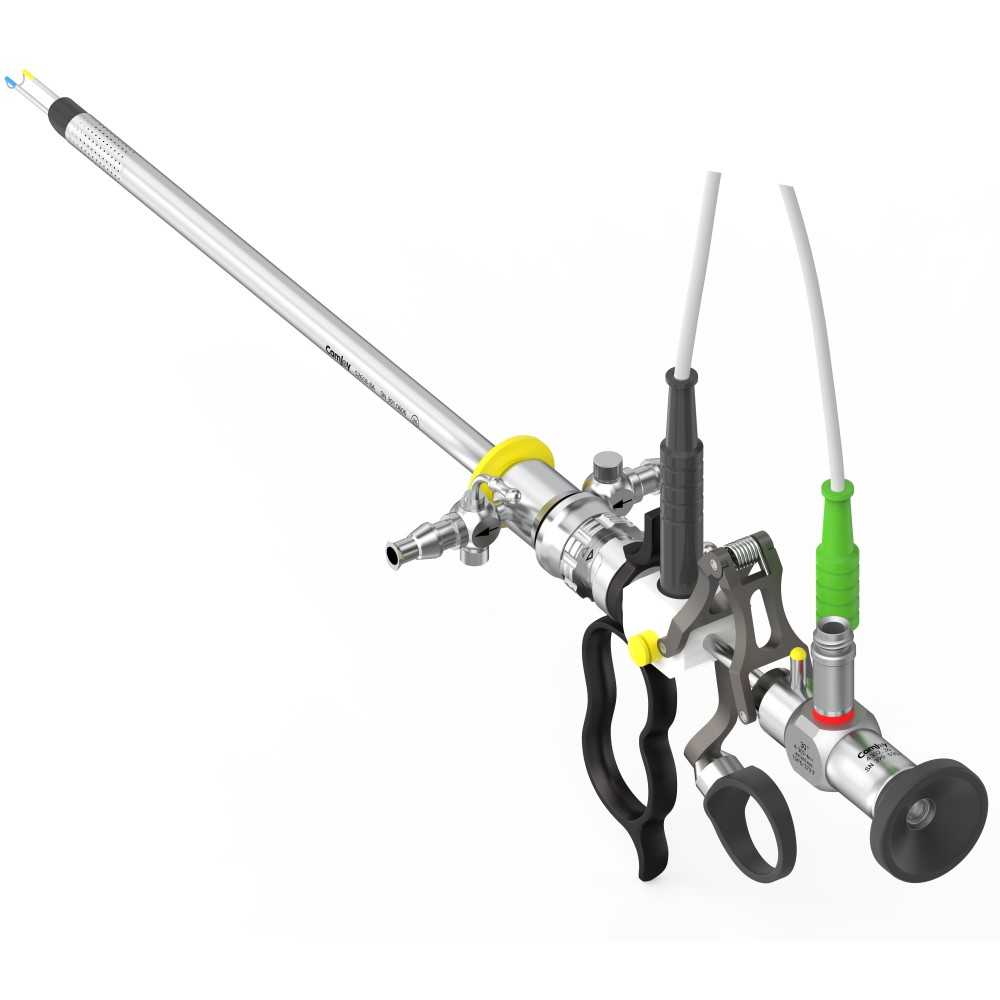

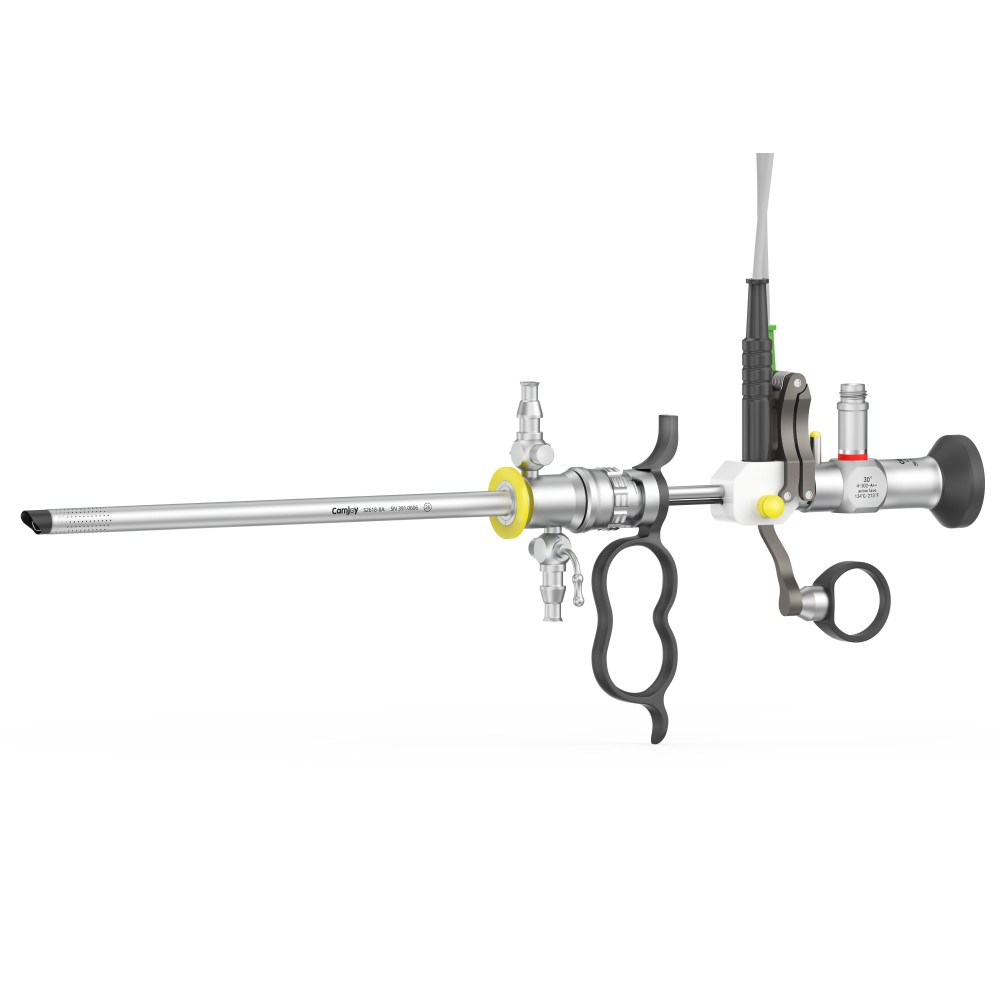

Camjoy BRS108A1 Bipolar Resectoscope Set
✔ Click-Locked Mechanism
✔ Morcelloscope Compatible
✔ Visual Obturator Insertion
Redefining Versatility in Urological Resection
The Camjoy BRS108A1 Bipolar Resectoscope System is engineered to meet the highest demands of modern urology. Built around a standard 302mm / 4mm HD optical system, this 26Fr platform delivers exceptional cutting precision and fluid management for Transurethral Resection (TURP and TURBT) under safe, 0.9% Normal Saline irrigation.
What truly sets the BRS108A1 apart is its forward-thinking adaptability. It is specifically designed to match with morcelloscopes for HoLEP (Holmium Laser Enucleation of the Prostate) procedures, making it a dual-purpose investment for any urological theater transitioning to or expanding their laser enucleation capabilities.
Furthermore, the system features a specialized lightweight plastic handle available in both Active and Passive configurations. This ergonomic choice significantly reduces the overall instrument weight, allowing surgeons to maintain peak dexterity and combat hand fatigue during high-volume or prolonged surgical lists.
Clinical Advantages
- ✔ HoLEP Synergy: Sheath architecture seamlessly integrates with tissue morcellation tools.
- ✔ Ultra-Light Ergonomics: Premium plastic handle minimizes surgeon wrist fatigue.
- ✔ Visual Insertion: Comprehensive visual obturators ensure 100% atraumatic entry.
- ✔ Saline Safety: Zero risk of TUR syndrome via bipolar plasma technology.
- ✔ High-Volume Clearance: 26Fr continuous flow handles heavy debris and bleeding effortlessly.
Engineering Excellence & Technology
1. HoLEP & Morcelloscope Integration
As Holmium Laser Enucleation of the Prostate (HoLEP) becomes the new gold standard for treating large glands, equipment versatility is critical. The BRS108A1 outer sheath system (S2618-8A) is precision-engineered to accommodate urological morcellators. After the adenoma is enucleated into the bladder, the working element can be swiftly removed via the Click-Lock mechanism, allowing the morcelloscope to be directly introduced through the same sheath for rapid tissue extraction.
2. Advanced Visual Obturator System
Blind insertion is a leading cause of urethral trauma and stricture formation. The BRS108A1 set provides an industry-leading suite of Visual Obturators (V8101 – V8104). These specialized obturators allow the 4mm endoscope to be inserted inside the obturator during the initial passage. The surgeon can visually navigate the urethra up to the bladder neck under direct vision, with options including funnel-type and valve-type working channels for simultaneous irrigation or guidewire placement.

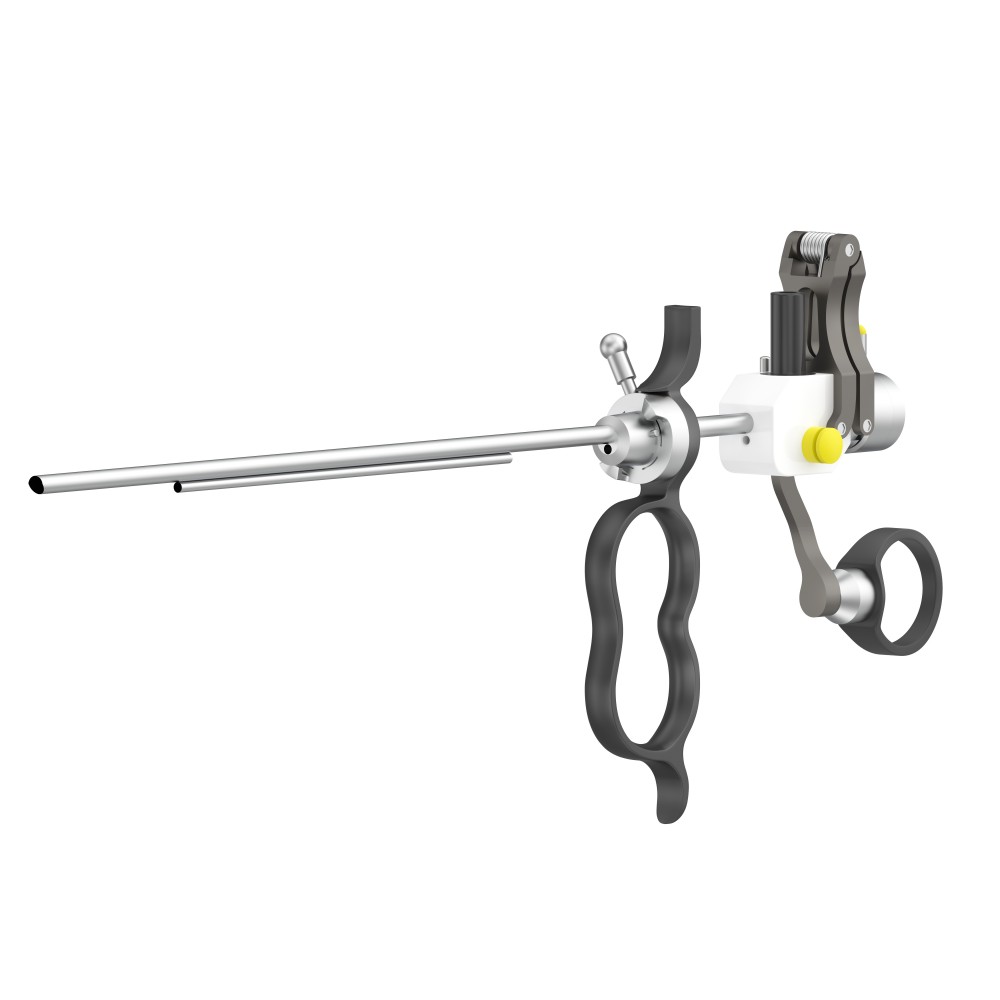

3. Lightweight Plastic Working Elements (Active & Passive)
To maximize stamina during complex resections, the working elements (W8101P / W8101A) are constructed using high-grade, medical-grade autoclavable polymer (plastic). This drastically reduces the fulcrum weight in the surgeon’s hand compared to traditional all-metal handles. Surgeons can choose between Passive (spring retracts the loop for built-in safety) or Active (surgeon pulls to cut) configurations based on their training and preference.
4. High-Volume Continuous Flow (26Fr)
Visibility is paramount. The 26Fr Outer Sheath paired with the 24Fr Inner Sheath creates a large-capacity convection current. Clear irrigation flows continuously while blood and tissue chips are rapidly suctioned out, keeping intravesical pressure low and the optical field perfectly clear.
🌟 Key System Highlights
HoLEP Ready
Specifically designed to match with morcelloscopes, bridging the gap between standard TURP and advanced laser enucleation.
Lightweight Handle
High-durability plastic working elements (Active/Passive) provide unmatched ergonomic balance and fatigue reduction.
Direct Vision Entry
Complete V-Series visual obturators ensure 100% safe, trauma-free navigation through the urethra.
Click-Lock Design
Rapid, rotational-free assembly ensures the 30° scope view perfectly aligns with the cutting electrode at all times.
Universal Optics
The 4302.30 Endoscope connects seamlessly to ATOMX, STORZ, WOLF, OLYMPUS, and ACMI light cables.
📊 Detailed Ordering Information (BRS108A1)
The BRS108A1 is a highly modular system. Below is the exhaustive component list, featuring full compatibility for both Bipolar and Monopolar energy modalities.
| Model No. | Description | Specification & Details |
|---|---|---|
| I. Main Components (Optics, Handles & Sheaths) | ||
| 4302.30 | HD Endoscope (Red Ring) | 30° | Ø 4mm | 302mm Length | Universal Light Cable Compatibility |
| W8101P | Working Element (Passive) | Lightweight Plastic Handle | Click-Locked |
| W8101A | Working Element (Active) | Lightweight Plastic Handle | Click-Locked |
| S2618-8A | Outer Sheath with Obturator | 26Fr | 180mm Length |
| S2420-8A | Inner Sheath with Obturator | 24Fr | 200mm Length |
| S2400-8A | Inner Sheath Adaptor | Click-Locked connecting bridge |
| II. Visual Obturators (For Safe Insertion under Vision) | ||
| V8101 | Visual Obturator (Outer) | For outer sheath | Without working channel |
| V8102 | Visual Obturator (Outer) | For outer sheath | With working channel (Funnel-type) |
| V8103 | Visual Obturator (Inner) | For inner sheath | With working channel (Valve-type) |
| V8104 | Visual Obturator (Inner) | For inner sheath | With working channel (Funnel-type) |
| III. Electrodes (Bipolar & Monopolar Options) | ||
| Code (Mono / Bipolar) | Electrode Type | Shape / Angle |
| C8111 / C8112 | Cutting Loop (Thin) | 90° Angled | Precision cutting |
| C8121 / C8122 | Cutting Loop (Thick) | 90° Angled | High durability |
| C8141 / C8142 | Cutting Loop (Straight) | 0° Straight |
| C8131 / C8132 | Needle Electrode | Fine tip for strictures / BNI |
| C8151 / C8152 | Knife Electrode | 90° Angled blade |
| C8161 / C8162 | Coagulation Button | For targeted hemostasis |
| C8171 / C8172 | Rollerball Electrode | Ball shape for wide surface coagulation |
| C8181 / C8182 | Strip Electrode | Flat strip design |
| C8191 / C8192 | Roller Electrode | Cylindrical | For TUVP vaporization |
| IV. Accessories & Valves | ||
| H8002 | HF Cable (Bipolar) | 3 Meters |
| H8001 | HF Cable (Monopolar) | 3 Meters |
| A4311 / A4312 | In-flow / Out-flow Valve | Stainless Steel Luer Lock |
| A8304 | Irrigator Connector | Secure fluid line connection |
| A4305 / A4306 | Huffman / Ellik Irrigator | For manual tissue chip evacuation |
| A4303 | Sealed Cap | 10 pcs per pack |
| R3340 | Cleaning Rod | Ø 3mm | 340mm Length |
| V. Fistula Instruments (Complete Set) | ||
| F1695 – F2495 | Fistula Instruments | 16Fr, 18Fr, 20Fr, 22Fr, 24Fr (All 95mm Length) |
