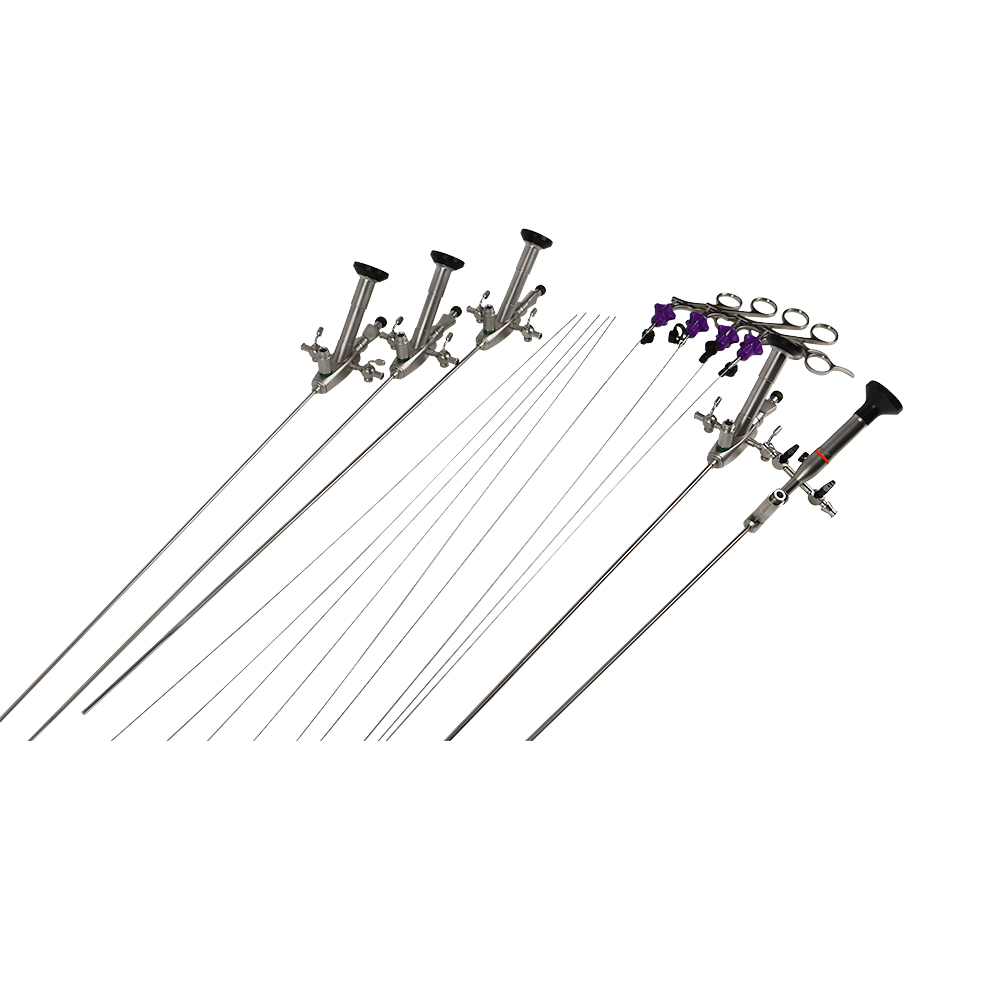

Camjoy JY7001K Standard Rigid Ureteroscope
The definitive “workhorse” for everyday urology. Offering the perfect balance of shaft stiffness, durability, and instrument capacity.
🚀 Product Overview
In the demanding environment of the operating room, reliability is paramount. The Camjoy JY7001K is engineered to be the daily driver for urologists worldwide. Designed as a precise functional equivalent to the Storz 27001 KK, this instrument addresses 80% of all ureteroscopic indications, from routine stone fragmentation to tumor biopsies.
While ultra-slim scopes are necessary for tight strictures, the JY7001K’s slightly robust 8.5 Fr sheath provides superior torque control and pushability. This allows the surgeon to navigate the guidewire with confidence and apply necessary force without fear of instrument buckling. Its 5.0 Fr working channel is a critical upgrade over smaller models, allowing for the passage of larger stone baskets, biopsy forceps, and dual-instrument techniques (e.g., laser fiber + basket simultaneously).
📊 Technical Specifications
| Specification | Details |
|---|---|
| Model Number | JY7001K |
| Reference Compatibility | Storz 27001 KK |
| Distal Tip Diameter | 7.5 Fr (Tapered) |
| Proximal Sheath Diameter | 8.5 Fr |
| Working Length | 340 mm (Standard Adult) |
| Working Channel | 5.0 Fr (Large Capacity) |
| Direction of View (DOV) | 6° (Angled View) |
| Optical System | German High-Density Fiber Bundle (50k+ Pixels) |
| Light Post Connection | Universal (Storz / Wolf / Olympus Adapters Included) |
🌟 Key Technologies & Benefits
Optimized Irrigation Flow
Visibility is key to safety. The 5.0 Fr working channel of the JY7001K significantly outperforms smaller 4Fr channels found in slim scopes. It ensures continuous, high-flow irrigation even when a 272µm laser fiber is inserted, clearing blood and stone dust instantly from the visual field.
Enhanced Durability
Ureteroscopes are prone to bending damage. The JY7001K features a reinforced Medical Grade Stainless Steel outer sheath. This thicker wall design resists kinking and crushing forces better than ultra-slim models, making it a more cost-effective choice for hospitals with high caseloads.
Crystal Clear Optics
We utilize premium German Optical Fibers to deliver a high-contrast, honeycomb-free image. The 6° direction of view provides an excellent perspective of the ureteral lumen during advancement, while allowing the surgeon to see instruments entering the field clearly.
🏥 Clinical Applications
The JY7001K is the versatile choice for a broad spectrum of endourological procedures:
- Holmium Laser Lithotripsy: The standard tool for fragmenting ureteral calculi in the mid and distal ureter.
- Foreign Body Removal: The large channel accommodates strong grasping forceps for removing migrated stents or calcified fragments.
- Tumor Management: Ideal for biopsy of Upper Tract Urothelial Carcinoma (UTUC) due to the ability to pass larger biopsy cups.
- Stricture Dilation: The rigid shaft provides the necessary support for balloon dilation catheters.
🔧 Maintenance & Care Guidelines
Proper care extends the life of your investment. Follow these protocols for the JY7001K:
- Sterilization: Designed for Autoclave (Steam) sterilization at 134°C. Ensure the instrument is placed in a dedicated tray with silicone finger mats to prevent shifting.
- Leak Testing: Perform a leak test after every procedure to ensure the laser-welded seals are intact. This prevents fluid invasion which can cloud the optics.
- Cleaning: Flush the working channel immediately after use to prevent bio-burden buildup. Use a soft brush appropriate for a 5Fr channel.
Equip Your O.R. with the Standard of Care
Reliability meets affordability. Get the JY7001K for your daily urology needs.
