Cystoscope Set CS101 (Rotating Locked, Adult Type)
The CS101 Cystoscope Set is a complete urology surgical instrument designed for bladder inspection, diagnosis, and treatment. It includes high-quality rigid endoscopes, bridges, working elements, and accessories compatible with major endoscopic systems such as STORZ, WOLF, OLYMPUS, and ACMI.
🔹 Endoscope Options
| Model | Direction of View | Diameter / Length | Compatible Light Cable |
|---|---|---|---|
| 4302.00 (Green) | 0° | Ø4mm / 302mm | ATOMX / STORZ / WOLF / OLYMPUS / ACMI |
| 4302.30 (Red) | 30° | Ø4mm / 302mm | ATOMX / STORZ / WOLF / OLYMPUS / ACMI |
| 4302.70 (Yellow) | 70° | Ø4mm / 302mm | ATOMX / STORZ / WOLF / OLYMPUS / ACMI |
🔹 Main Components
- B4350 Endoscope bridge (without channel)
- B4351 Endoscope bridge (single channel, Ø3.5mm)
- B4352 Endoscope bridge (double channel, Ø3.5mm)
- W4102 Working element (double channel)
- S1522 Sheath & obturator (15.5Fr/222mm, black)
- S1923 Sheath & obturator (18Fr/230mm, yellow)
- S2123 Sheath & obturator (21Fr/230mm, red)
- S2223 Sheath & obturator (22Fr/230mm, blue)

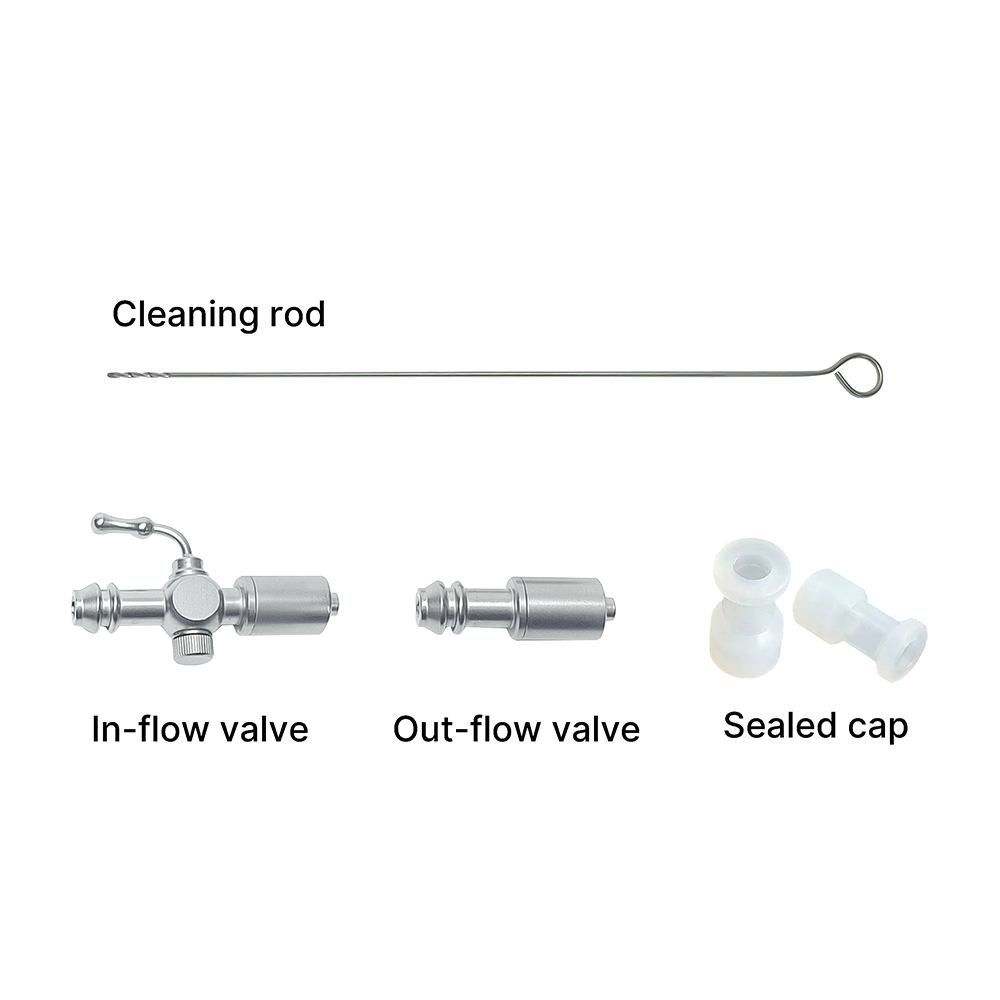

- R3340 Cleaning rod (Ø3mm/340mm)
- A4301 In-flow valve
- A4302 Out-flow valve
- A303 Sealed cap
🔹 Optional Forceps and Accessories
- F7400B Flexible biopsy forceps (7Fr / 400mm / 4.5mm)
- F7400T Flexible saw-tooth forceps (7Fr / 400mm / 4.5mm)
- F7400F Flexible foreign body forceps (7Fr / 400mm / 4.5mm)
- F7400S Flexible scissors (7Fr / 400mm / 7.7mm)
🔹 Key Features
- High-definition optical clarity for bladder inspection.
- Compatible with major urology systems (Storz, Olympus, Wolf, etc.).
- Autoclavable and reusable stainless steel instruments.
- Rotating lock mechanism for secure endoscope fixation.
- Available in various sheath sizes for different procedures.
🔹 Specifications
| Material | Medical Stainless Steel |
| Endoscope Diameter | 4mm |
| Endoscope Length | 302mm |
| Sheath Size | 15.5Fr / 18Fr / 21Fr / 22Fr |
| Working Channel | Single or Double |
| Sterilization | Autoclavable / Plasma sterilization |
| Light Connection | ATOMX / STORZ / WOLF / OLYMPUS / ACMI |
🔹 Applications
Used for bladder inspection, diagnosis, biopsy, and transurethral surgery in urology. Suitable for hospitals, surgical centers, and clinics.
