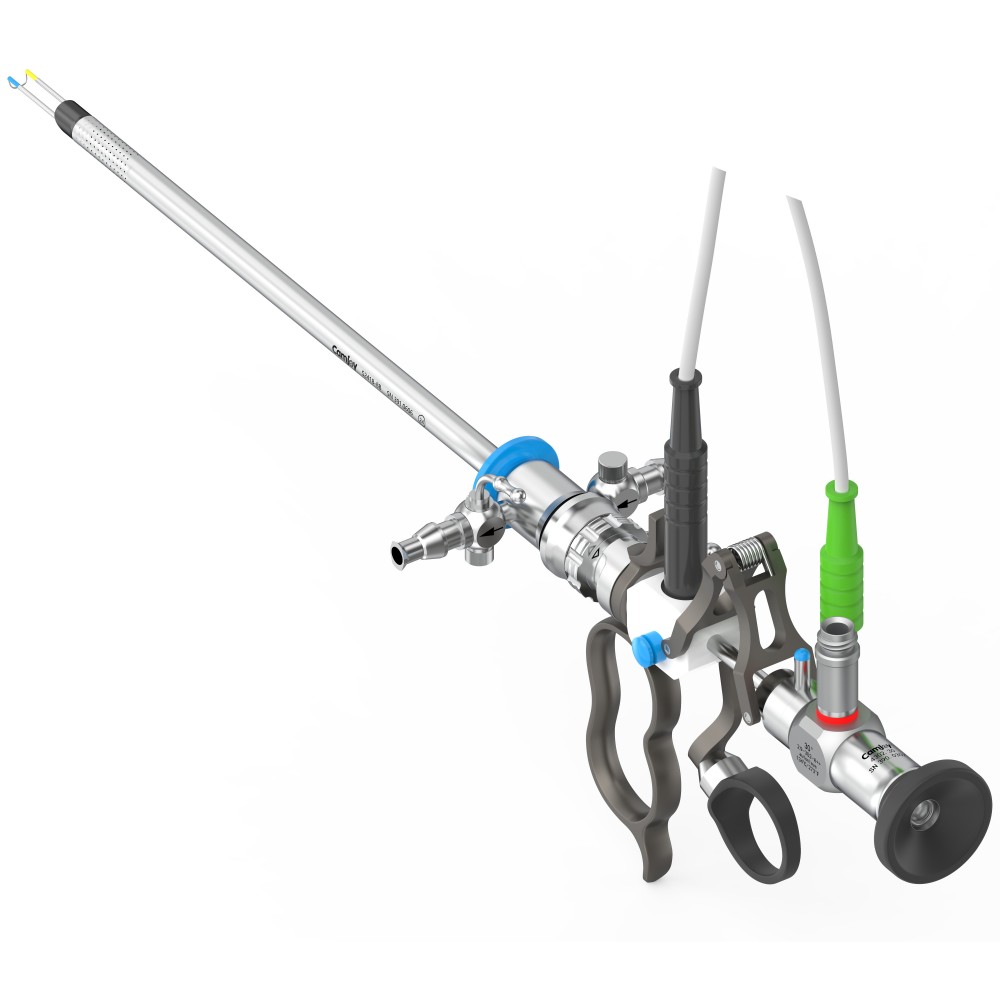

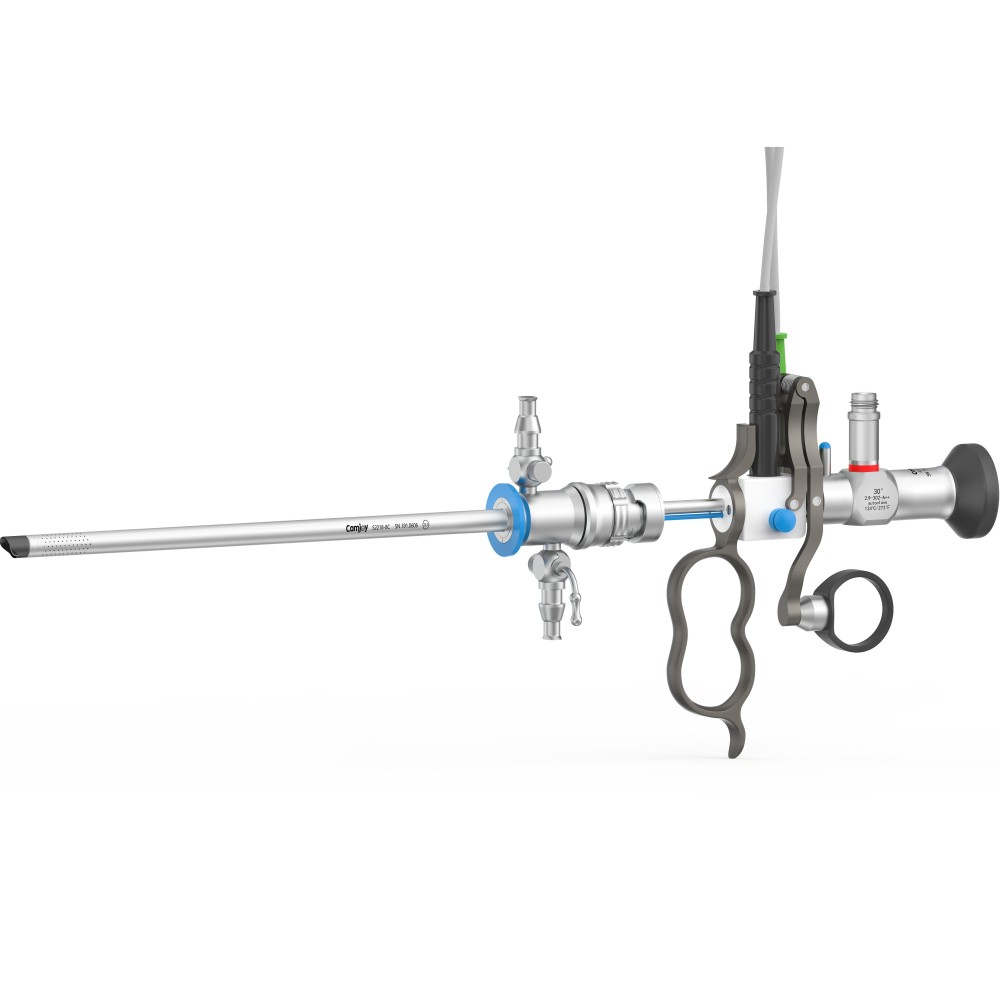

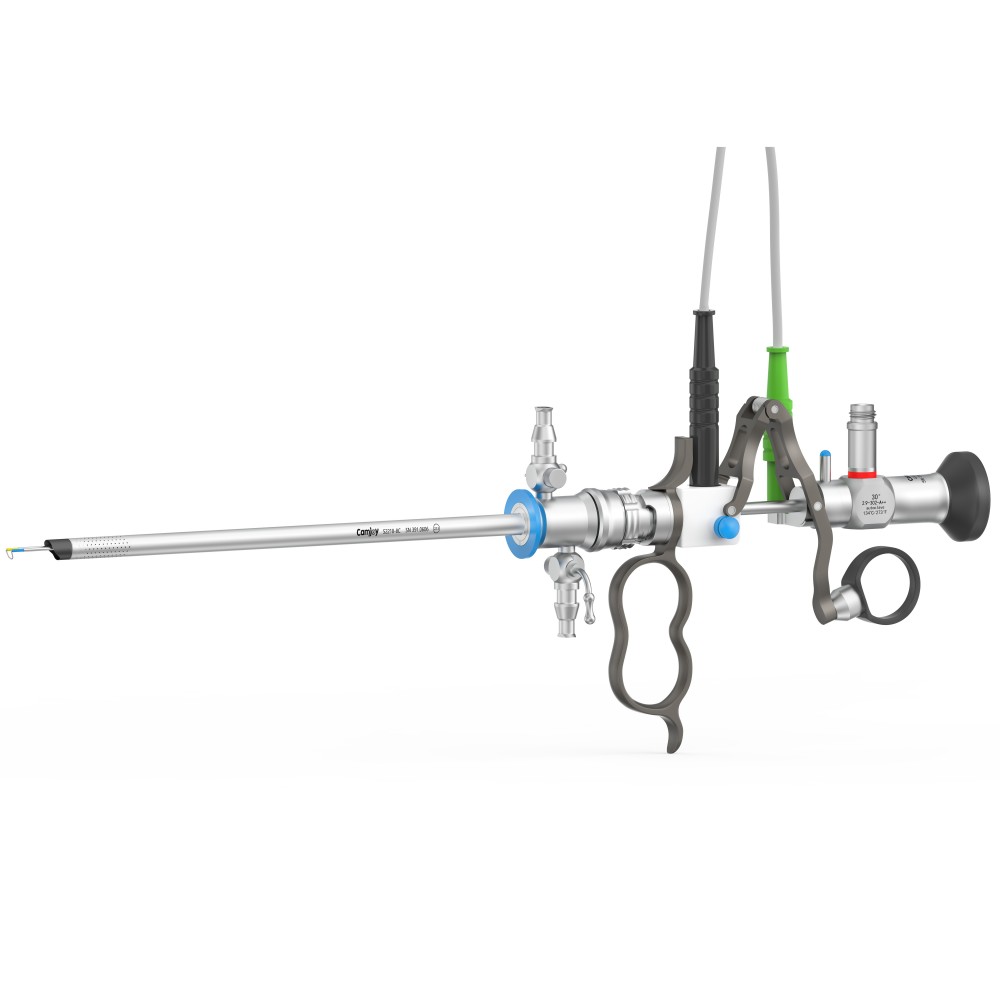

Camjoy BRS108C2 Bipolar Resectoscope Set
✔ 2.9mm HD Endoscope
✔ Aerospace-Grade Titanium
✔ Morcelloscope Compatible
Extreme Precision Meets Ultimate Durability
The Camjoy BRS108C2 Bipolar Resectoscope System is a masterpiece of urological engineering, specifically designed to navigate the challenges of pediatric urology and adult patients with severe urethral strictures. By integrating an advanced 2.9mm HD optical system, we achieve an ultra-slim 22.5Fr continuous flow sheath without sacrificing fluid dynamics or visual clarity.
Despite its incredibly narrow profile, the BRS108C2 delivers uncompromising advanced surgical capabilities. It is fully HoLEP (Holmium Laser Enucleation of the Prostate) compatible. The specialized 22.5Fr outer sheath accommodates matched urological morcellators, providing a seamless transition from laser enucleation to tissue extraction within a highly confined anatomical space.
To guarantee a lifetime of performance under the harshest sterilization conditions, the BRS108C2 features a premium titanium alloy working element. Available in both Active and Passive configurations, titanium offers the solid, responsive tactile feedback of metal while significantly reducing the weight penalty, ensuring superior maneuverability for delicate interventions.
Clinical Advantages
- ✔ 22.5Fr Ultra-Slim Profile: Essential for pediatric patients and stricture management.
- ✔ Titanium Durability: Aerospace-grade alloy ensures lifetime corrosion resistance and strength.
- ✔ 2.9mm Optics: Brilliant visualization scaled down for minimally invasive access.
- ✔ HoLEP Synergy: Sheath seamlessly integrates with tissue morcellation tools.
- ✔ Visual Insertion: Comprehensive visual obturators ensure 100% atraumatic entry.
Engineering Excellence & Technology
1. High-Definition 2.9mm Optics
To achieve the 22.5Fr profile, the system shifts from a standard 4mm telescope to a specialized 2.9mm HD Endoscope (9302.30). Using advanced rod-lens technology, this 30-degree optic delivers crisp, bright, high-resolution imagery that rivals larger scopes, ensuring the surgeon has perfect visibility in confined operative fields.

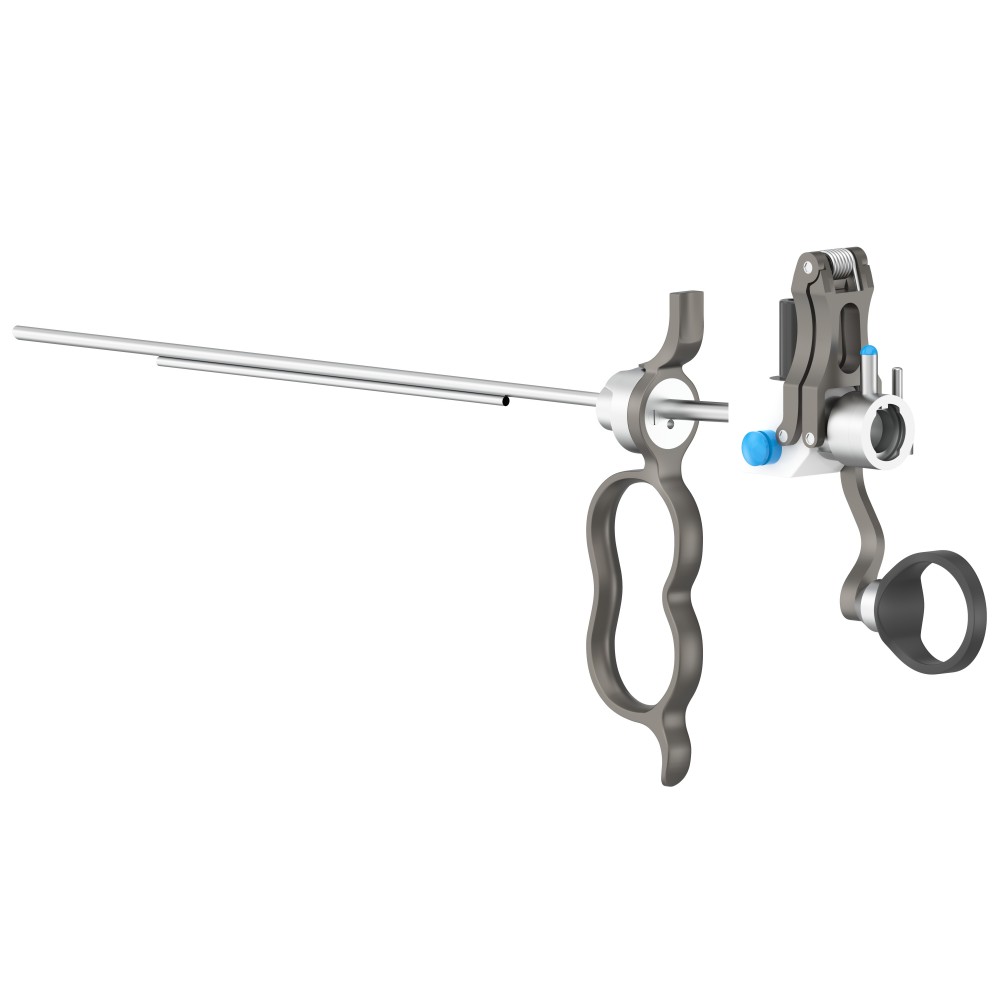

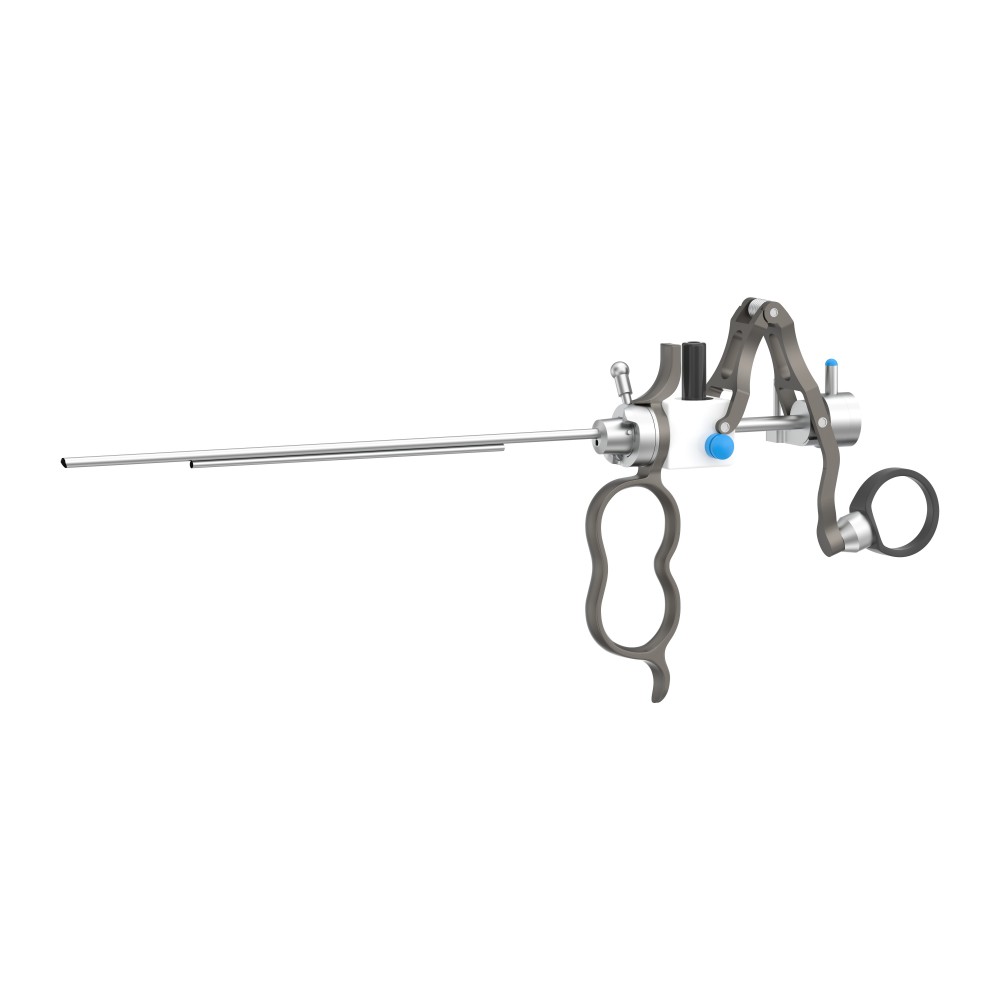

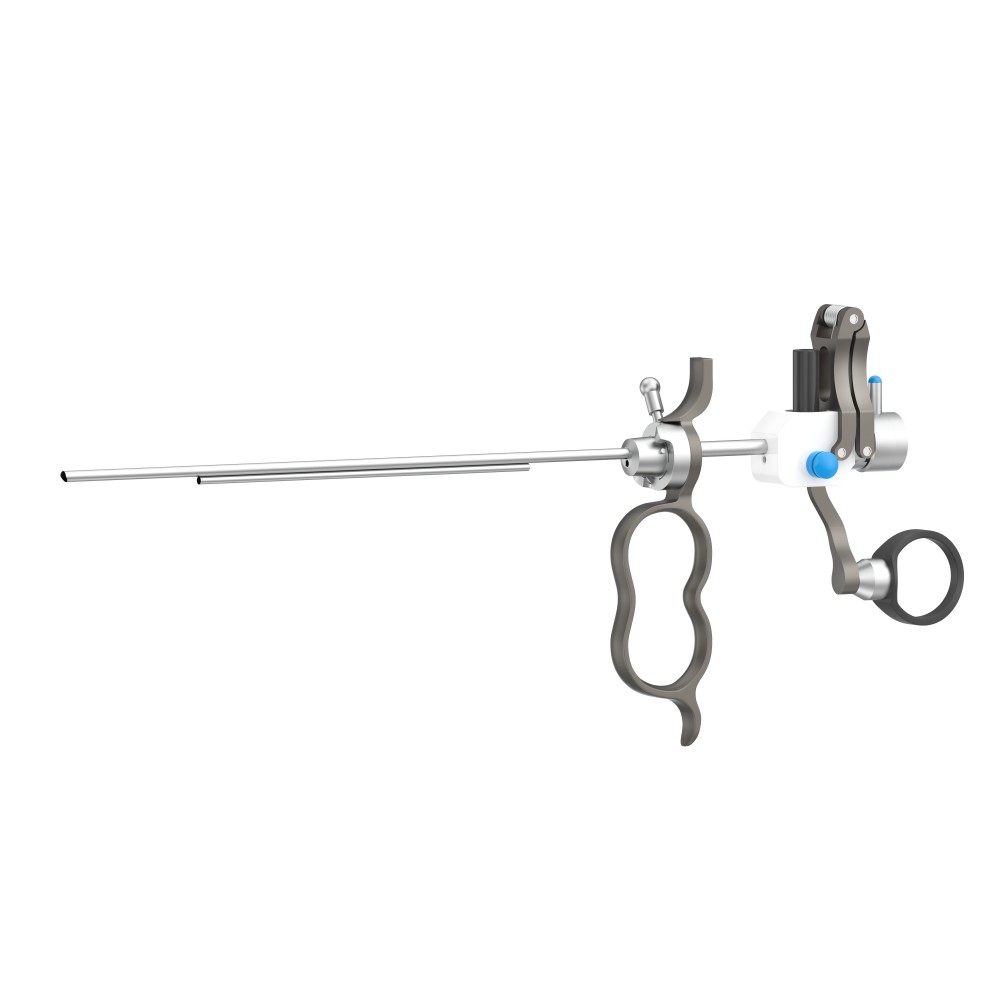

2. Premium Titanium Alloy Working Elements
To maximize stamina and instrument lifespan during complex delicate resections, the working elements (W8302P / W8302A) are constructed from high-grade Titanium Alloy. This advanced material is significantly lighter than standard stainless steel, drastically reducing the fulcrum weight in the surgeon’s hand, while offering superior resistance to the harsh conditions of daily steam autoclaving.
3. The 22.5Fr Pediatric & Stricture Advantage
The BRS108C2 utilizes an intelligently designed 22.5Fr Outer / 21Fr Inner sheath combination. This ultra-slim profile dramatically reduces mechanical friction and urethral stretching, significantly lowering post-operative stricture rates while maintaining effective continuous flow irrigation.
4. HoLEP Compatibility & Visual Obturators
It is exceptionally rare for an ultra-slim system to support advanced laser therapies. The BRS108C2 outer sheath (S2218-8C) accommodates matched urological morcellators for rapid tissue extraction. Furthermore, the set provides an industry-leading suite of Visual Obturators (V8301 – V8304), allowing the 2.9mm endoscope to be inserted inside the obturator for safe, visual navigation of the urethra.
🌟 6 Key System Highlights
Titanium Alloy
Premium titanium working elements provide unmatched ergonomic balance, tactile sensitivity, and extreme durability.
22.5Fr Ultra-Slim
The 22.5Fr outer sheath drastically reduces mechanical trauma, making it perfect for pediatric or narrow urethras.
2.9mm HD Optics
Advanced 2.9mm rod-lens technology delivers exceptional clarity and brightness in a fraction of the standard footprint.
HoLEP Ready
Specifically designed to match with corresponding morcelloscopes, providing a seamless workflow for laser enucleation.
Direct Vision Entry
Complete V8300-Series visual obturators ensure 100% safe, trauma-free navigation through delicate urinary tracts.
Click-Lock Design
Rapid, rotational-free assembly ensures the 30° scope view perfectly aligns with the cutting electrode at all times.
📊 Detailed Ordering Information (BRS108C2)
The BRS108C2 is a highly specialized system built around the 2.9mm optic and 22.5Fr profile with titanium components. Below is the exhaustive component list, featuring full compatibility for both Bipolar and Monopolar energy modalities.
| Model No. | Description | Specification & Details |
|---|---|---|
| I. Main Components (Optics, Handles & Sheaths) | ||
| 9302.30 | HD Endoscope (Red Ring) | 30° | Ø 2.9mm | 302mm Length | Universal Compatibility |
| W8302P | Working Element (Passive) | Titanium Alloy Handle | Click-Locked |
| W8302A | Working Element (Active) | Titanium Alloy Handle | Click-Locked |
| S2218-8C | Outer Sheath with Obturator | 22.5Fr | 180mm Length |
| S2120-8C | Inner Sheath with Obturator | 21Fr | 200mm Length |
| S2100-8C | Inner Sheath Adaptor | Click-Locked connecting bridge |
| II. Visual Obturators (For Safe Insertion under Vision) | ||
| V8301 | Visual Obturator (Outer) | For 22.5Fr outer sheath | Without working channel |
| V8302 | Visual Obturator (Outer) | For 22.5Fr outer sheath | With working channel (Funnel-type) |
| V8303 | Visual Obturator (Inner) | For 21Fr inner sheath | With working channel (Valve-type) |
| V8304 | Visual Obturator (Inner) | For 21Fr inner sheath | With working channel (Funnel-type) |
| III. Electrodes (Bipolar & Monopolar Options) | ||
| Code (Mono / Bipolar) | Electrode Type | Shape / Angle |
| C8311 / C8312 | Cutting Loop (Thin) | 90° Angled | Precision cutting |
| C8321 / C8322 | Cutting Loop (Thick) | 90° Angled | High durability |
| C8341 / C8342 | Cutting Loop (Straight) | 0° Straight |
| C8331 / C8332 | Needle Electrode | Fine tip for strictures / BNI |
| C8351 / C8352 | Knife Electrode | 90° Angled blade |
| C8361 / C8362 | Coagulation Button | For targeted hemostasis |
| C8371 / C8372 | Rollerball Electrode | Ball shape for wide surface coagulation |
| C8381 / C8382 | Strip Electrode | Flat strip design |
| C8391 / C8392 | Roller Electrode | Cylindrical | For TUVP vaporization |
| IV. Accessories & Valves | ||
| H8002 | HF Cable (Bipolar) | 3 Meters |
| H8001 | HF Cable (Monopolar) | 3 Meters |
| A4311 / A4312 | In-flow / Out-flow Valve | Stainless Steel Luer Lock |
| A8304 | Irrigator Connector | Secure fluid line connection |
| A4305 / A4306 | Huffman / Ellik Irrigator | For manual tissue chip evacuation |
| A4303 | Sealed Cap | 10 pcs per pack |
| R3340 | Cleaning Rod | Ø 3mm | 340mm Length |
| V. Fistula Instruments (Complete Set) | ||
| F1695 – F2495 | Fistula Instruments | 16Fr, 18Fr, 20Fr, 22Fr, 24Fr (All 95mm Length) |
