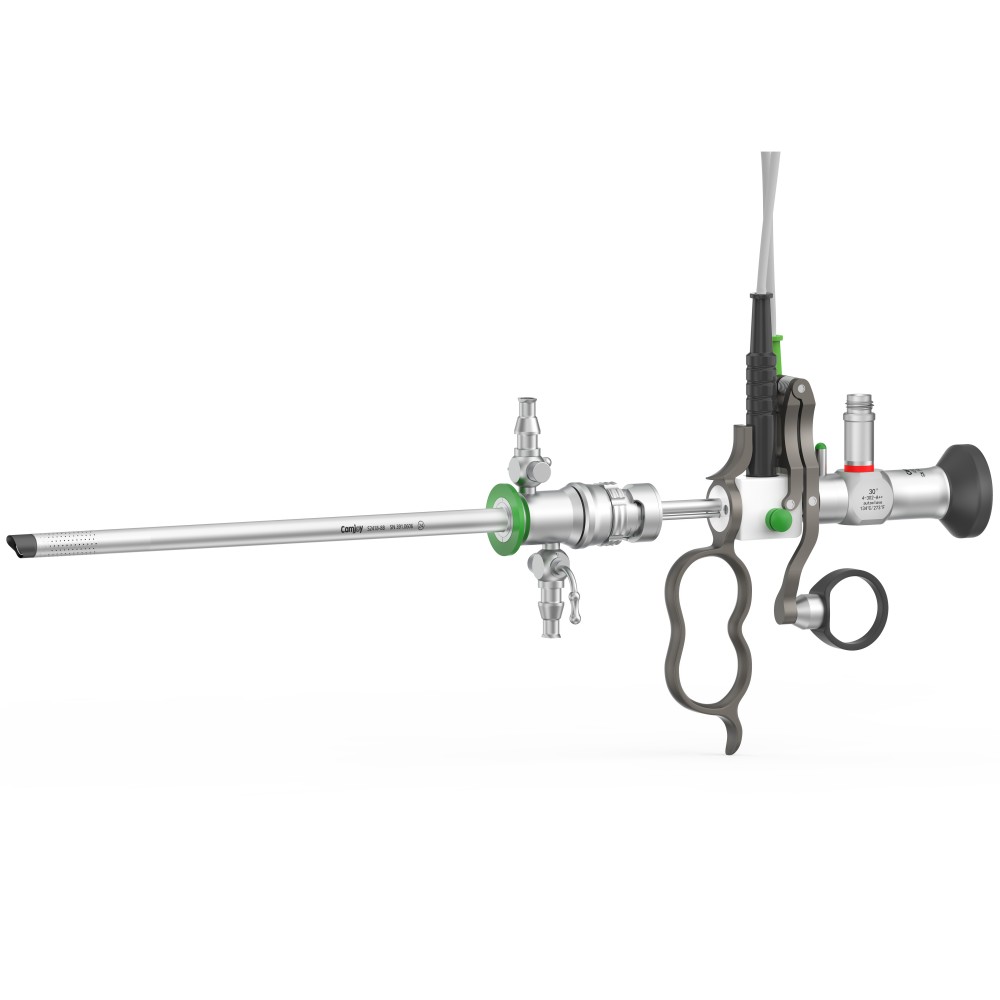

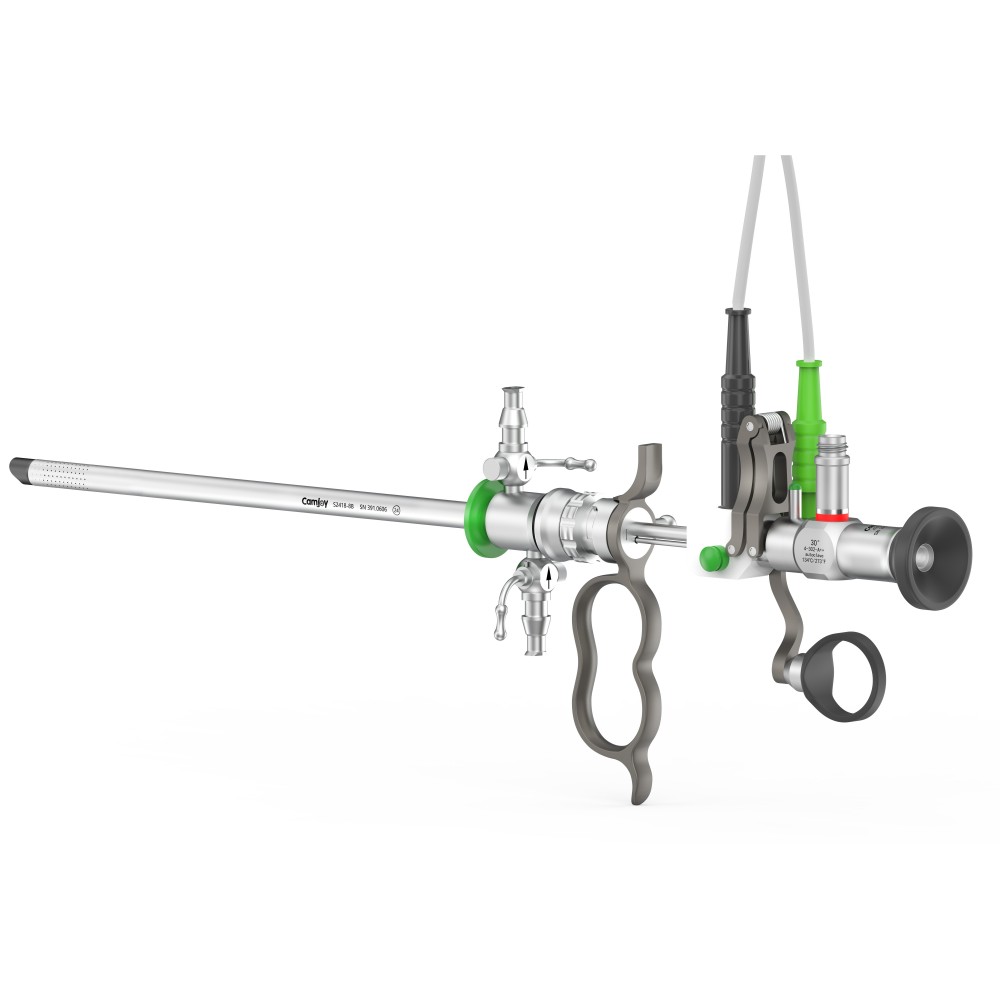

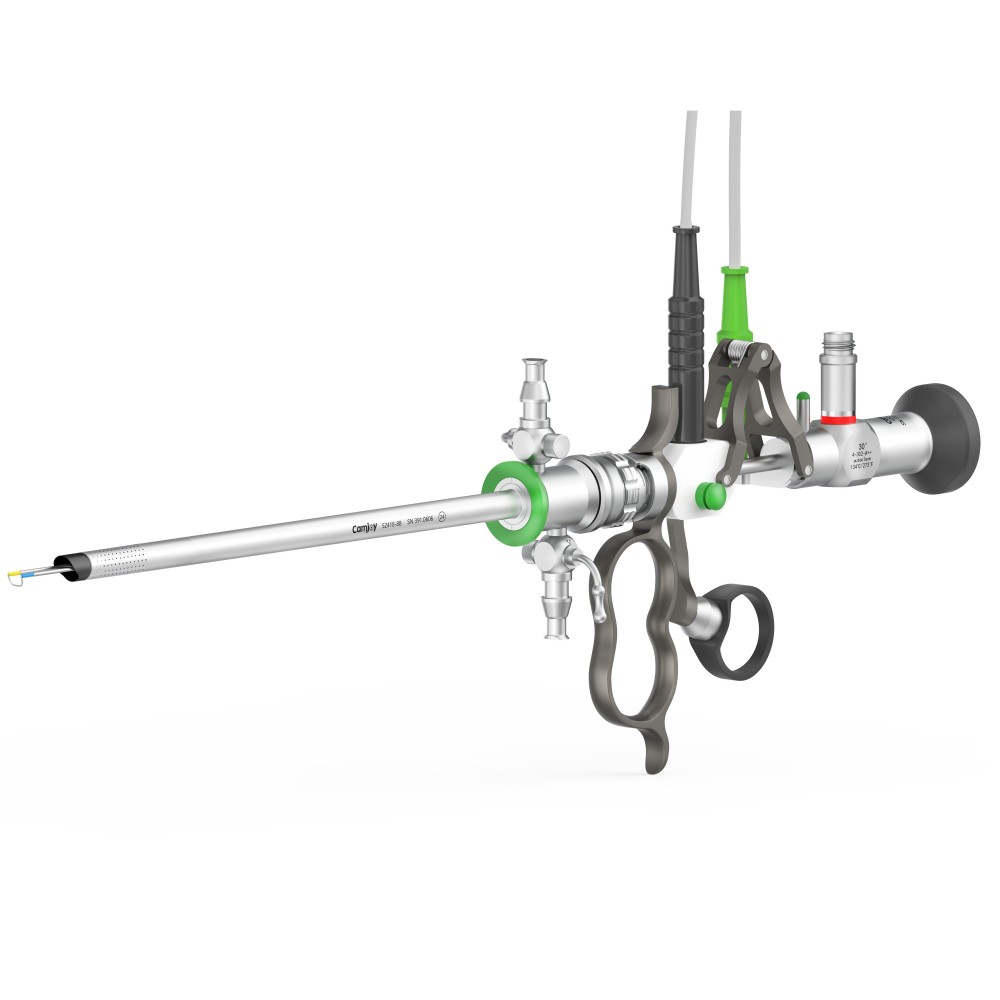

Camjoy BRS108B2 Bipolar Resectoscope Set
✔ 24Fr Reduced Trauma
✔ Aerospace-Grade Titanium
✔ Morcelloscope Compatible
Redefining Durability in Minimally Invasive Enucleation
The Camjoy BRS108B2 Bipolar Resectoscope System represents the pinnacle of specialized urological instrumentation. Engineered specifically for modern HoLEP (Holmium Laser Enucleation of the Prostate), it combines a highly efficient 24Fr continuous flow sheath architecture with the unparalleled strength of titanium, dramatically reducing the risk of urethral strictures without compromising on durability or fluid dynamics.
What truly sets the BRS108B2 apart is its seamless HoLEP integration. The sheath system is perfectly calibrated to match with urological morcelloscopes. Following laser enucleation, the titanium working element can be instantly detached via our Click-Lock mechanism, allowing the morcellator to pass directly through the 24Fr sheath for rapid, efficient tissue extraction.
To guarantee a lifetime of performance under the harshest sterilization conditions, the BRS108B2 features a premium titanium alloy working element. Available in both Active and Passive configurations, titanium offers the solid, responsive tactile feedback of metal while significantly reducing the weight penalty, ensuring superior maneuverability for the surgeon.
Clinical Advantages
- ✔ 24Fr Slim Profile: Minimizes urethral trauma and accommodates narrower anatomies.
- ✔ Titanium Durability: Aerospace-grade alloy ensures lifetime corrosion resistance and strength.
- ✔ Dedicated HoLEP Synergy: Sheath seamlessly integrates with tissue morcellation tools.
- ✔ Visual Insertion: Comprehensive visual obturators ensure 100% atraumatic entry.
- ✔ Saline Safety: Zero risk of TUR syndrome via bipolar plasma technology.
Engineering Excellence & Technology
1. HoLEP & Morcelloscope Integration
As HoLEP becomes the gold standard for treating large glands, equipment versatility is critical. The BRS108B2 24Fr outer sheath (S2418-8B) is precision-engineered to accommodate urological morcellators. After the adenoma is enucleated, the working element is removed, allowing the morcelloscope to be directly introduced through the same sheath for rapid tissue extraction, saving valuable OR time.

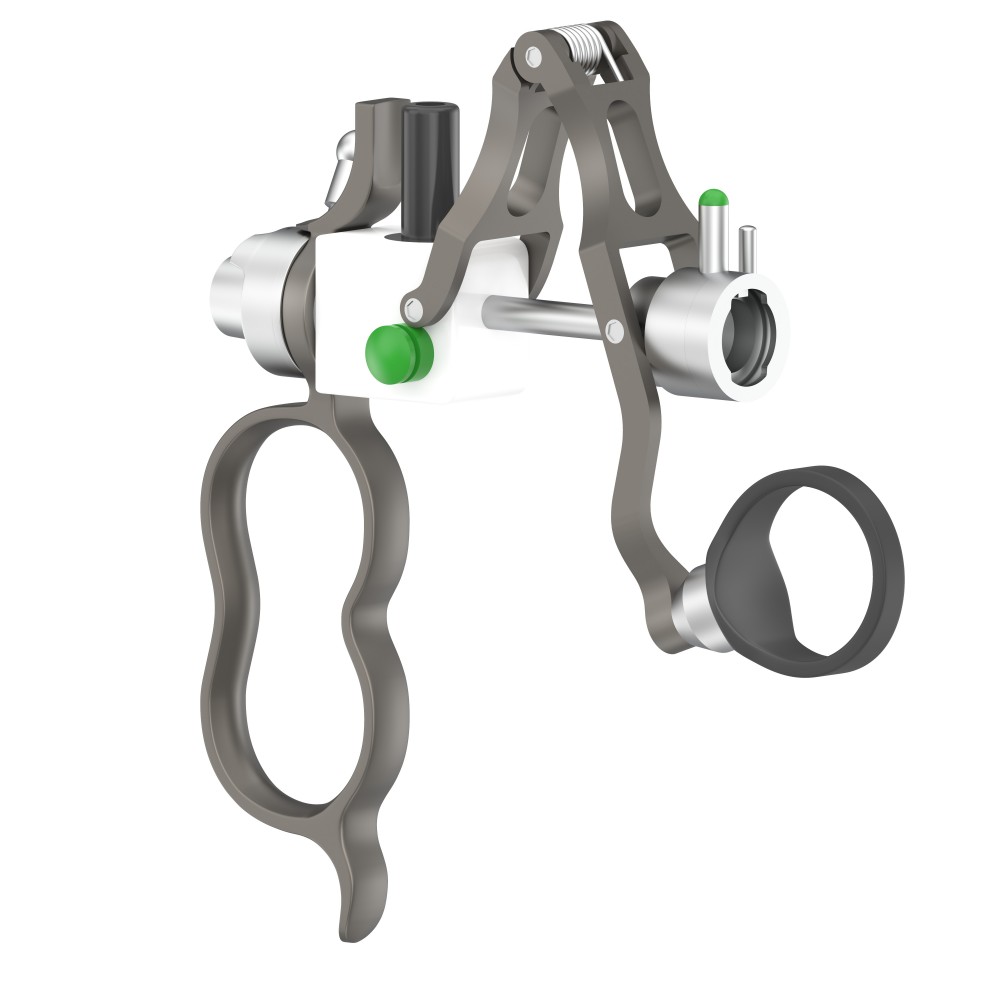

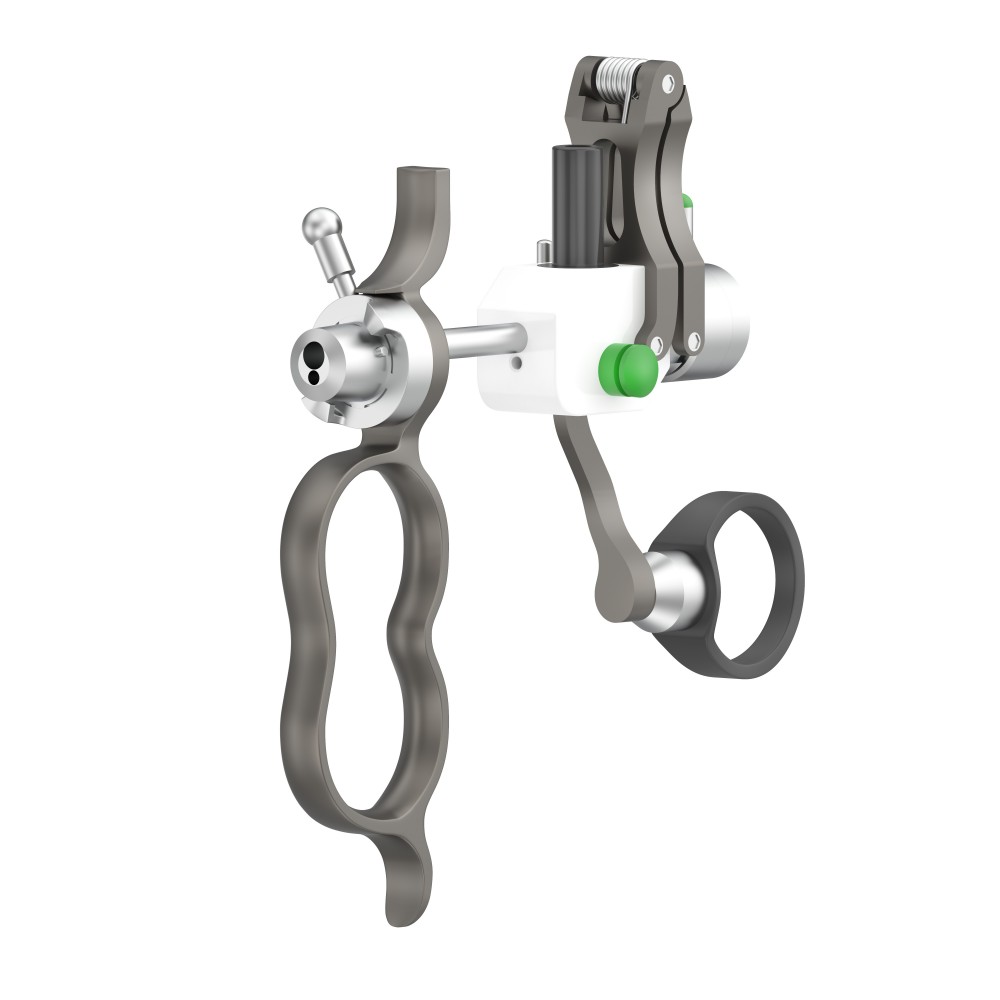

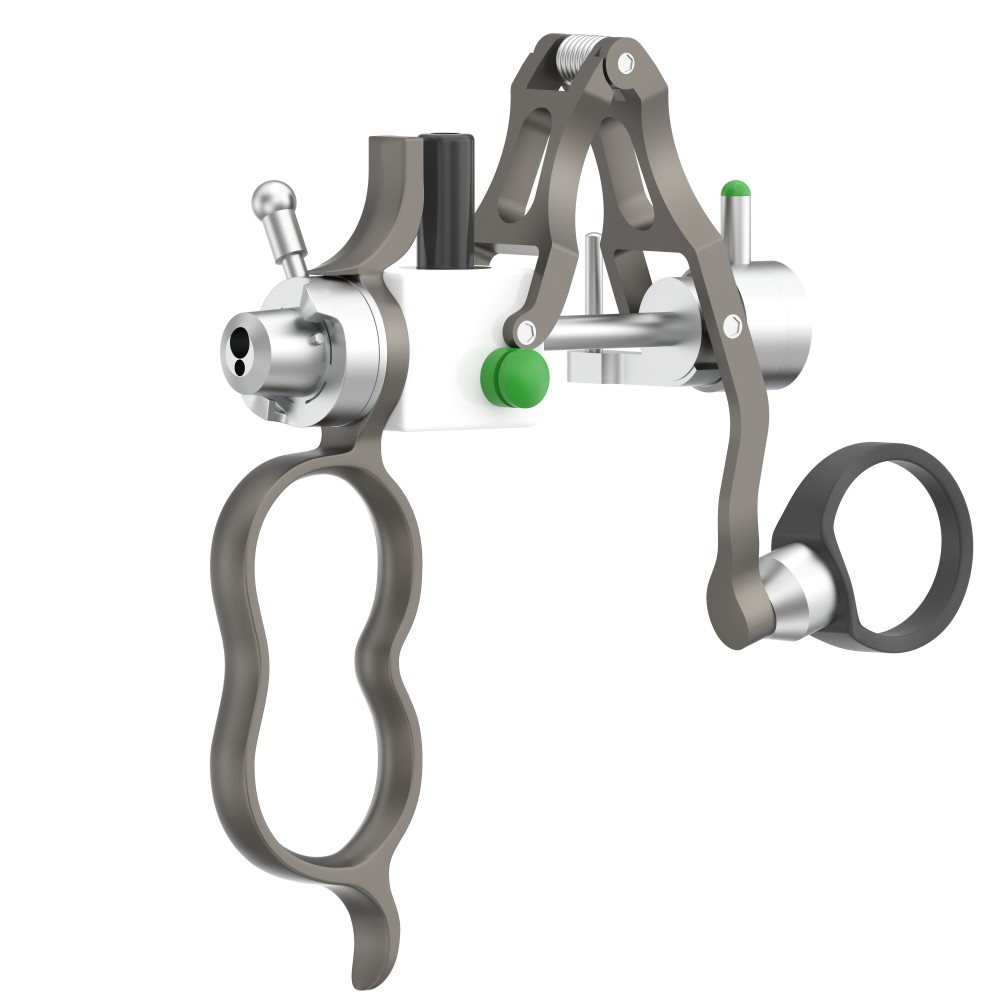

2. Premium Titanium Alloy Working Elements
To maximize stamina and instrument lifespan during complex resections, the working elements (W8202P / W8202A) are constructed from high-grade Titanium Alloy. This advanced material is significantly lighter than standard stainless steel, drastically reducing the fulcrum weight in the surgeon’s hand, while offering superior resistance to the harsh conditions of daily steam autoclaving.
3. The 24Fr Slim-Line Advantage
The BRS108B2 utilizes a 24Fr Outer / 22Fr Inner sheath combination. This slim profile is ideal for patients with narrower urethras, reducing postoperative stricture rates. Despite its narrower profile, the intelligently designed inner/outer fluid channels still provide excellent continuous flow irrigation to maintain a crystal-clear operative field.
4. Advanced Visual Obturator System
Blind insertion is a leading cause of urethral trauma. The BRS108B2 set provides an industry-leading suite of Visual Obturators (V8201 – V8204). These specialized obturators allow the 4mm endoscope to be inserted inside the obturator during the initial passage, enabling visual navigation of the urethra. Options include funnel-type and valve-type working channels for simultaneous irrigation or guidewire placement.
🌟 6 Key System Highlights
Titanium Alloy
Premium titanium working elements provide unmatched ergonomic balance, tactile sensitivity, and extreme durability.
Dedicated HoLEP Type
Specifically designed to match with morcelloscopes, providing a seamless workflow for advanced holmium laser enucleation.
24Fr Slim Profile
Narrower 24Fr outer sheath reduces mechanical trauma to the urethra while maintaining optimal continuous flow irrigation.
Direct Vision Entry
Complete V8200-Series visual obturators ensure 100% safe, trauma-free navigation through the urinary tract.
Plasma Ignition
Instant bipolar plasma formation in saline. The loop cuts with a vapor pocket, sealing vessels instantly for a bloodless field.

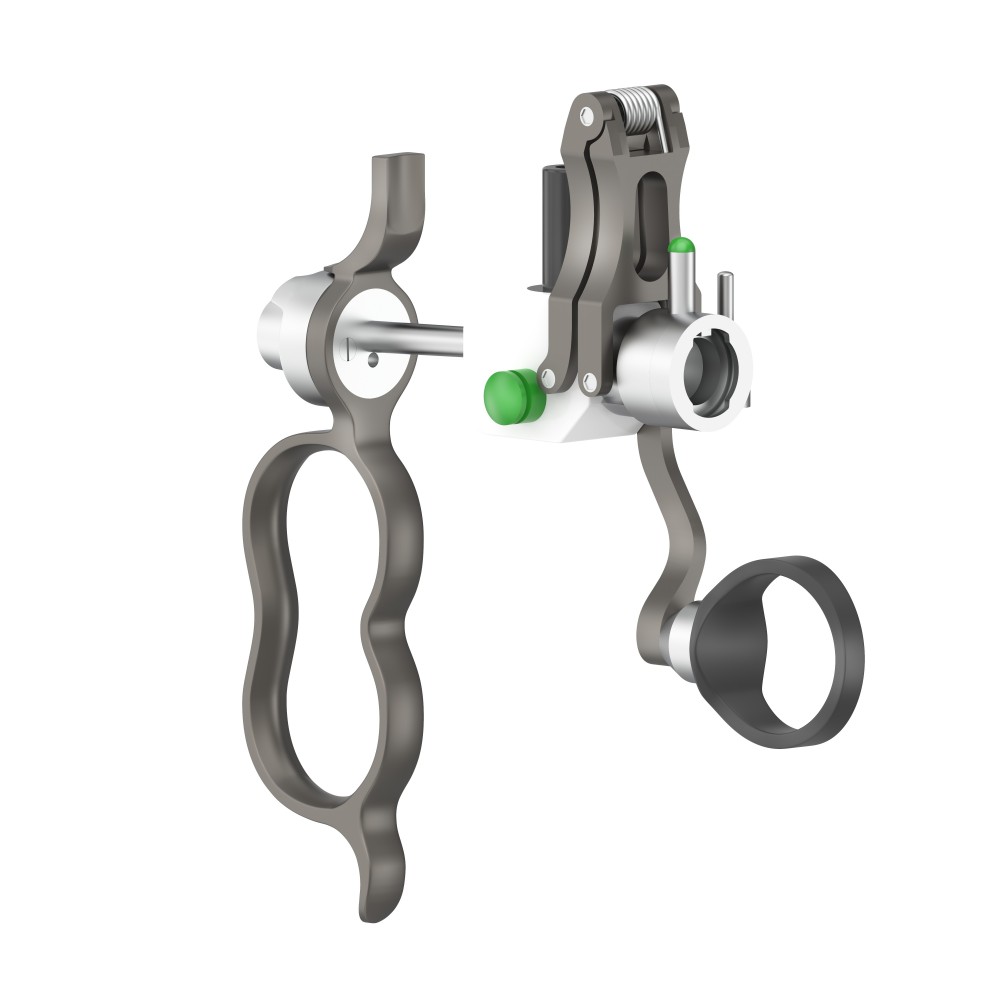

Click-Lock Design
Rapid, rotational-free assembly ensures the 30° scope view perfectly aligns with the cutting electrode at all times.
📊 Detailed Ordering Information (BRS108B2)
The BRS108B2 is a highly modular system optimized for 24Fr workflows with titanium components. Below is the exhaustive component list, featuring full compatibility for both Bipolar and Monopolar energy modalities.
| Model No. | Description | Specification & Details |
|---|---|---|
| I. Main Components (Optics, Handles & Sheaths) | ||
| 4302.30 | HD Endoscope (Red Ring) | 30° | Ø 4mm | 302mm Length | Universal Compatibility |
| W8202P | Working Element (Passive) | Titanium Alloy Handle | Click-Locked |
| W8202A | Working Element (Active) | Titanium Alloy Handle | Click-Locked |
| S2418-8B | Outer Sheath with Obturator | 24Fr | 180mm Length |
| S2220-8B | Inner Sheath with Obturator | 22Fr | 200mm Length |
| S2200-8B | Inner Sheath Adaptor | Click-Locked connecting bridge |
| II. Visual Obturators (For Safe Insertion under Vision) | ||
| V8201 | Visual Obturator (Outer) | For 24Fr outer sheath | Without working channel |
| V8202 | Visual Obturator (Outer) | For 24Fr outer sheath | With working channel (Funnel-type) |
| V8203 | Visual Obturator (Inner) | For 22Fr inner sheath | With working channel (Valve-type) |
| V8204 | Visual Obturator (Inner) | For 22Fr inner sheath | With working channel (Funnel-type) |
| III. Electrodes (Bipolar & Monopolar Options) | ||
| Code (Mono / Bipolar) | Electrode Type | Shape / Angle |
| C8211 / C8212 | Cutting Loop (Thin) | 90° Angled | Precision cutting |
| C8221 / C8222 | Cutting Loop (Thick) | 90° Angled | High durability |
| C8241 / C8242 | Cutting Loop (Straight) | 0° Straight |
| C8231 / C8232 | Needle Electrode | Fine tip for strictures / BNI |
| C8251 / C8252 | Knife Electrode | 90° Angled blade |
| C8261 / C8262 | Coagulation Button | For targeted hemostasis |
| C8271 / C8272 | Rollerball Electrode | Ball shape for wide surface coagulation |
| C8281 / C8282 | Strip Electrode | Flat strip design |
| C8291 / C8292 | Roller Electrode | Cylindrical | For TUVP vaporization |
| IV. Accessories & Valves | ||
| H8002 | HF Cable (Bipolar) | 3 Meters |
| H8001 | HF Cable (Monopolar) | 3 Meters |
| A4311 / A4312 | In-flow / Out-flow Valve | Stainless Steel Luer Lock |
| A8304 | Irrigator Connector | Secure fluid line connection |
| A4305 / A4306 | Huffman / Ellik Irrigator | For manual tissue chip evacuation |
| A4303 | Sealed Cap | 10 pcs per pack |
| R3340 | Cleaning Rod | Ø 3mm | 340mm Length |
| V. Fistula Instruments (Complete Set) | ||
| F1695 – F2495 | Fistula Instruments | 16Fr, 18Fr, 20Fr, 22Fr, 24Fr (All 95mm Length) |
