Camjoy BRS108A2 Bipolar Resectoscope Set
✔ Aerospace-Grade Titanium
✔ Morcelloscope Compatible
✔ Direct Vision Insertion
Redefining Durability and Precision in Resection

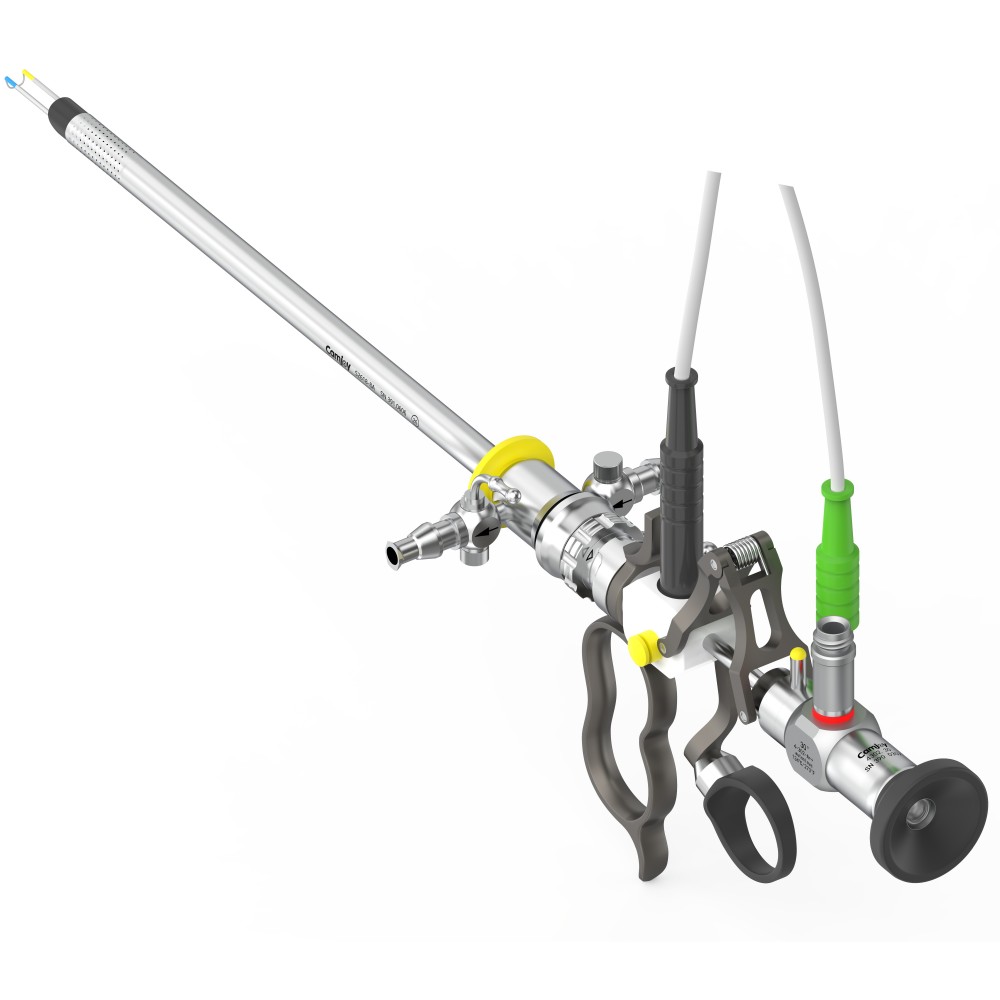

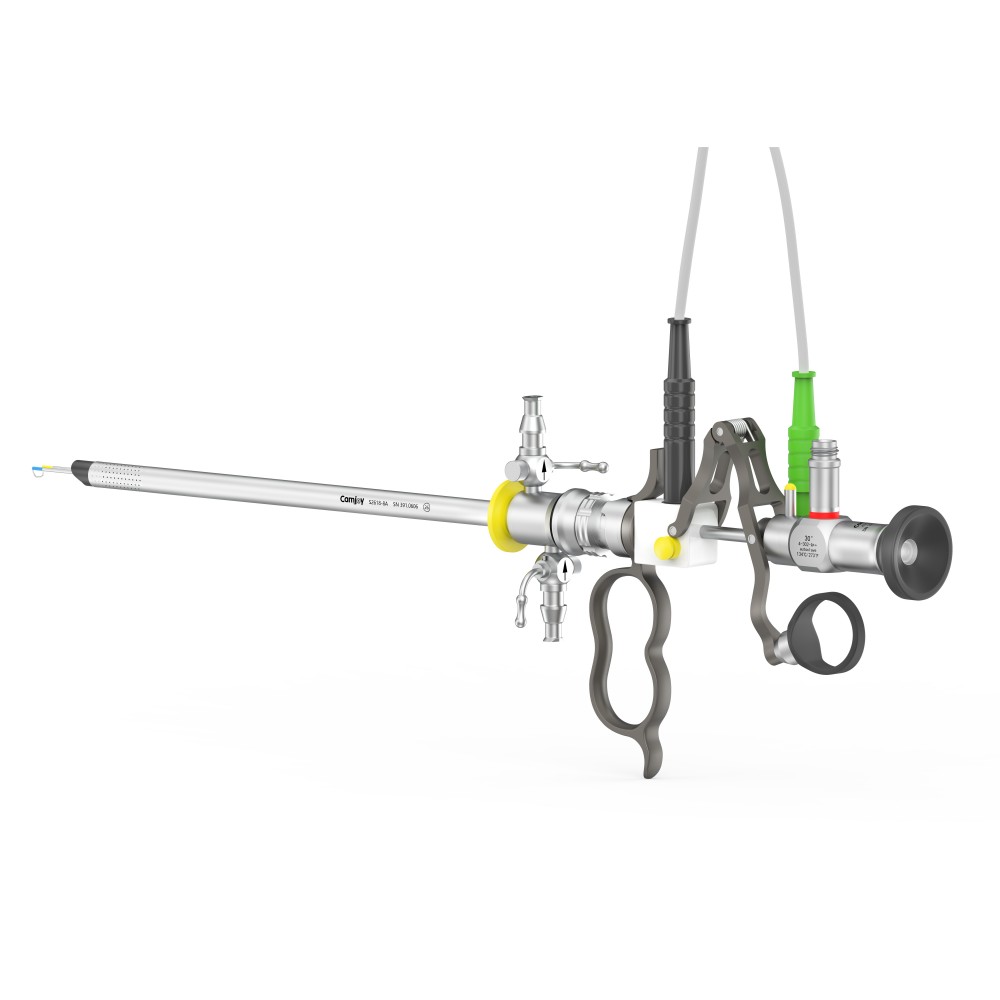

The Camjoy BRS108A2 Bipolar Resectoscope System is the pinnacle of urological electrosurgical engineering. Built around a standard 302mm / 4mm HD optical system, this robust 26Fr platform delivers exceptional cutting precision and fluid management for Transurethral Resection (TURP and TURBT) under safe, 0.9% Normal Saline irrigation.
What truly sets the BRS108A2 apart is its forward-thinking adaptability. It is specifically designed to match with morcelloscopes for HoLEP (Holmium Laser Enucleation of the Prostate) procedures, making it a dual-purpose investment for any urological theater transitioning to or expanding their laser enucleation capabilities.
Furthermore, this flagship system features a premium titanium alloy working element available in both Active and Passive configurations. Titanium offers an unrivaled strength-to-weight ratio, providing surgeons with the solid tactile feedback of metal while drastically reducing the weight penalty, ensuring superior maneuverability and extreme longevity against repeated sterilization cycles.
Clinical Advantages
- ✔ HoLEP Synergy: Sheath architecture seamlessly integrates with tissue morcellation tools.
- ✔ Titanium Durability: Aerospace-grade alloy ensures lifetime corrosion resistance.
- ✔ Visual Insertion: Comprehensive visual obturators ensure atraumatic entry.
- ✔ Saline Safety: Zero risk of TUR syndrome via bipolar plasma technology.
- ✔ High-Volume Clearance: 26Fr continuous flow handles heavy debris effortlessly.
Engineering Excellence & Technology
1. HoLEP & Morcelloscope Integration
As Holmium Laser Enucleation of the Prostate (HoLEP) becomes the new gold standard for treating large glands, equipment versatility is critical. The BRS108A2 outer sheath system (S2618-8A) is precision-engineered to accommodate urological morcellators. After the adenoma is enucleated into the bladder, the working element can be swiftly removed via the Click-Lock mechanism, allowing the morcelloscope to be directly introduced through the same sheath for rapid tissue extraction.

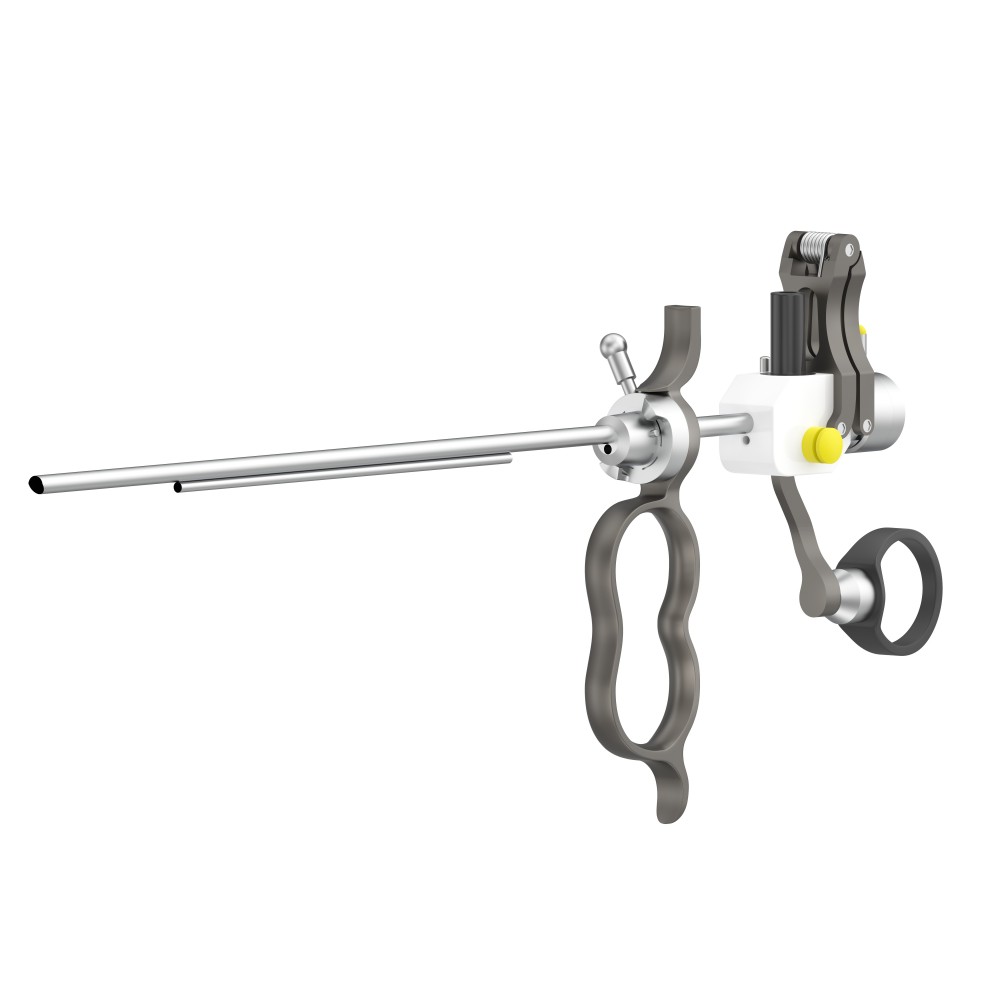

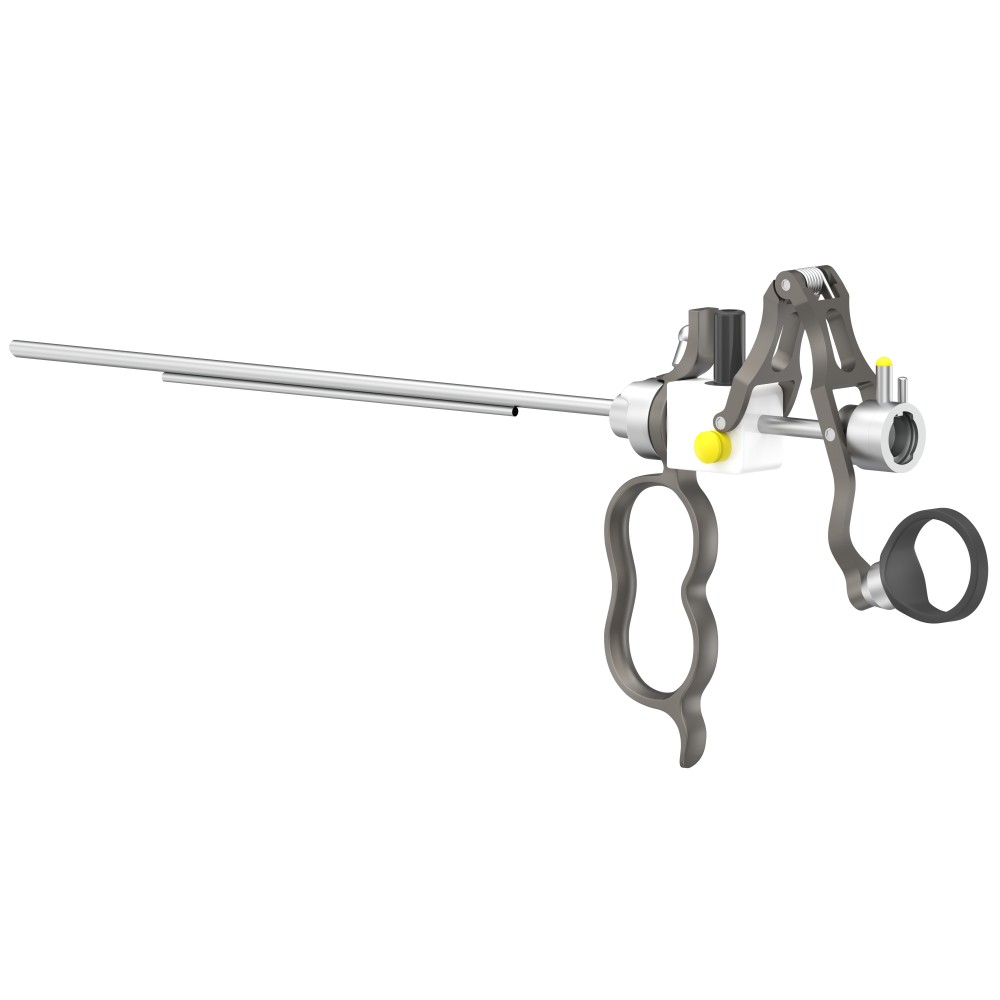

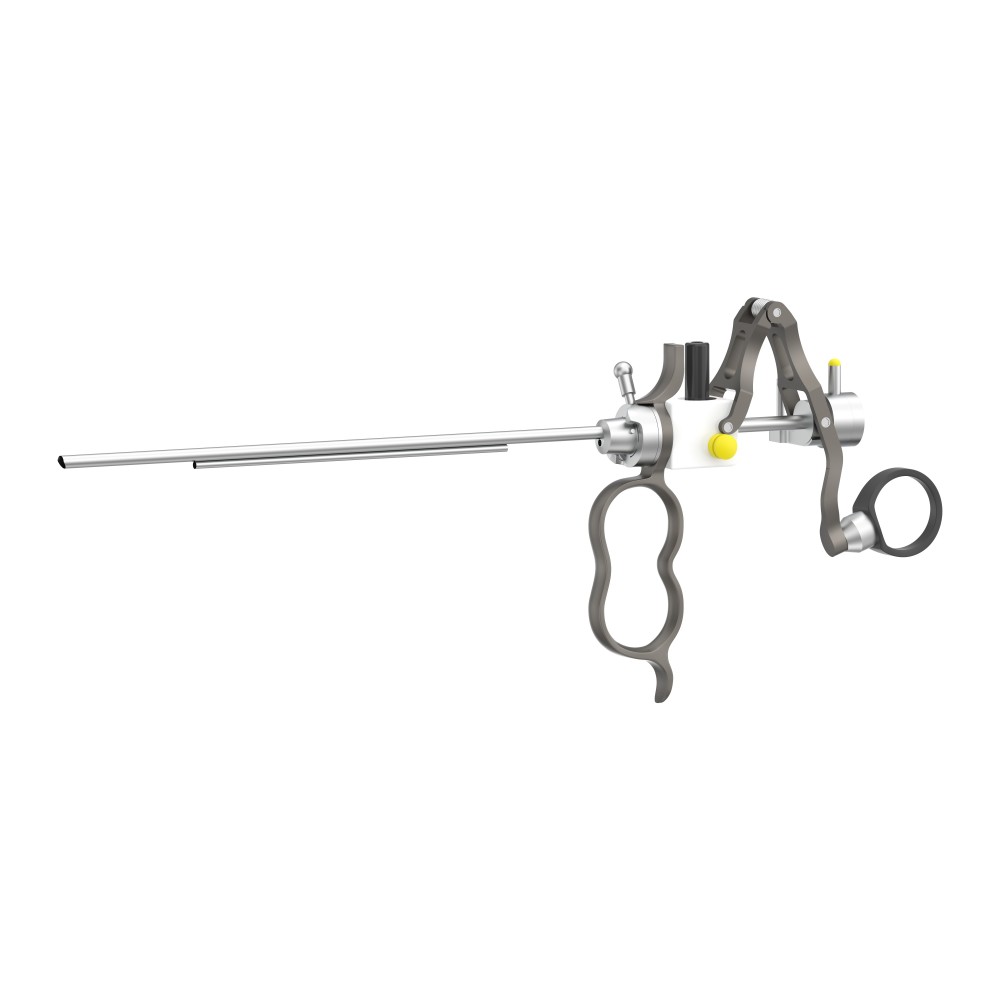

2. Premium Titanium Alloy Working Elements
To maximize stamina and instrument lifespan during complex resections, the working elements (W8102P / W8102A) are constructed from high-grade Titanium Alloy. This advanced material is significantly lighter than standard stainless steel, drastically reducing the fulcrum weight in the surgeon’s hand, while offering superior resistance to the harsh conditions of daily steam autoclaving.
3. Advanced Visual Obturator System
Blind insertion is a leading cause of urethral trauma. The BRS108A2 set provides an industry-leading suite of Visual Obturators (V8101 – V8104). These specialized obturators allow the 4mm endoscope to be inserted inside the obturator during the initial passage, enabling visual navigation of the urethra. Options include funnel-type and valve-type working channels for simultaneous irrigation or guidewire placement.
🌟 6 Key System Highlights
Titanium Alloy
Premium titanium working elements provide unmatched ergonomic balance, tactile sensitivity, and extreme durability.
HoLEP Ready
Specifically designed to match with morcelloscopes, bridging the gap between standard TURP and advanced laser enucleation.
Direct Vision Entry
Complete V-Series visual obturators ensure 100% safe, trauma-free navigation through the urethra.
Plasma Ignition
Instant bipolar plasma formation in saline. The loop cuts with a vapor pocket, sealing vessels instantly for a bloodless field.
26Fr Optimal Flow
Large dual-sheath capacity (26Fr Outer / 24Fr Inner) provides maximum irrigation and suction to handle heavy debris.
Click-Lock Design
Rapid, rotational-free assembly ensures the 30° scope view perfectly aligns with the cutting electrode at all times.
📊 Detailed Ordering Information (BRS108A2)
The BRS108A2 is a highly modular system. Below is the exhaustive component list, featuring full compatibility for both Bipolar and Monopolar energy modalities.
| Model No. | Description | Specification & Details |
|---|---|---|
| I. Main Components (Optics, Handles & Sheaths) | ||
| 4302.30 | HD Endoscope (Red Ring) | 30° | Ø 4mm | 302mm Length | Universal Compatibility |
| W8102P | Working Element (Passive) | Titanium Alloy Handle | Click-Locked |
| W8102A | Working Element (Active) | Titanium Alloy Handle | Click-Locked |
| S2618-8A | Outer Sheath with Obturator | 26Fr | 180mm Length |
| S2420-8A | Inner Sheath with Obturator | 24Fr | 200mm Length |
| S2400-8A | Inner Sheath Adaptor | Click-Locked connecting bridge |
| II. Visual Obturators (For Safe Insertion under Vision) | ||
| V8101 | Visual Obturator (Outer) | For outer sheath | Without working channel |
| V8102 | Visual Obturator (Outer) | For outer sheath | With working channel (Funnel-type) |
| V8103 | Visual Obturator (Inner) | For inner sheath | With working channel (Valve-type) |
| V8104 | Visual Obturator (Inner) | For inner sheath | With working channel (Funnel-type) |
| III. Electrodes (Bipolar & Monopolar Options) | ||
| Code (Mono / Bipolar) | Electrode Type | Shape / Angle |
| C8111 / C8112 | Cutting Loop (Thin) | 90° Angled | Precision cutting |
| C8121 / C8122 | Cutting Loop (Thick) | 90° Angled | High durability |
| C8141 / C8142 | Cutting Loop (Straight) | 0° Straight |
| C8131 / C8132 | Needle Electrode | Fine tip for strictures / BNI |
| C8151 / C8152 | Knife Electrode | 90° Angled blade |
| C8161 / C8162 | Coagulation Button | For targeted hemostasis |
| C8171 / C8172 | Rollerball Electrode | Ball shape for wide surface coagulation |
| C8181 / C8182 | Strip Electrode | Flat strip design |
| C8191 / C8192 | Roller Electrode | Cylindrical | For TUVP vaporization |
| IV. Accessories & Valves | ||
| H8002 | HF Cable (Bipolar) | 3 Meters |
| H8001 | HF Cable (Monopolar) | 3 Meters |
| A4311 / A4312 | In-flow / Out-flow Valve | Stainless Steel Luer Lock |
| A8304 | Irrigator Connector | Secure fluid line connection |
| A4305 / A4306 | Huffman / Ellik Irrigator | For manual tissue chip evacuation |
| A4303 | Sealed Cap | 10 pcs per pack |
| R3340 | Cleaning Rod | Ø 3mm | 340mm Length |
| V. Fistula Instruments (Complete Set) | ||
| F1695 – F2495 | Fistula Instruments | 16Fr, 18Fr, 20Fr, 22Fr, 24Fr (All 95mm Length) |
